Overview

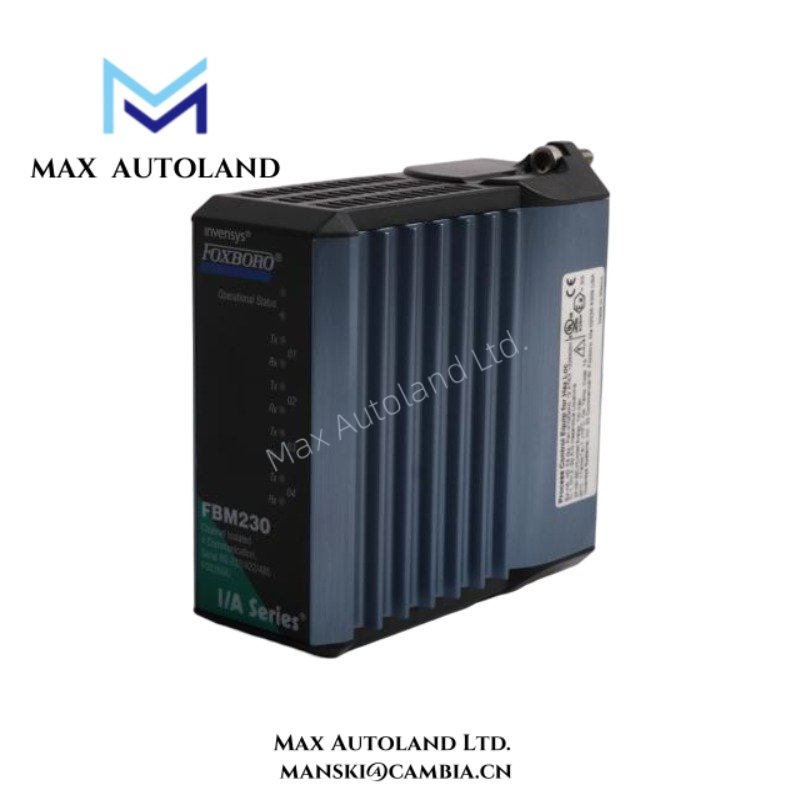

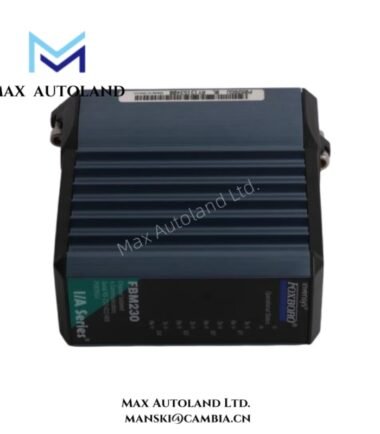

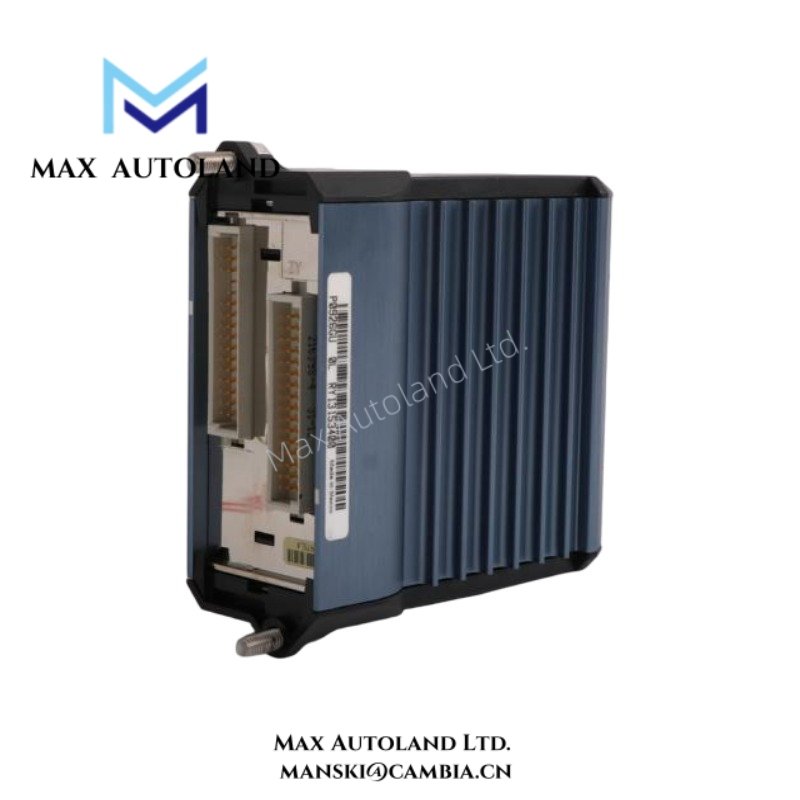

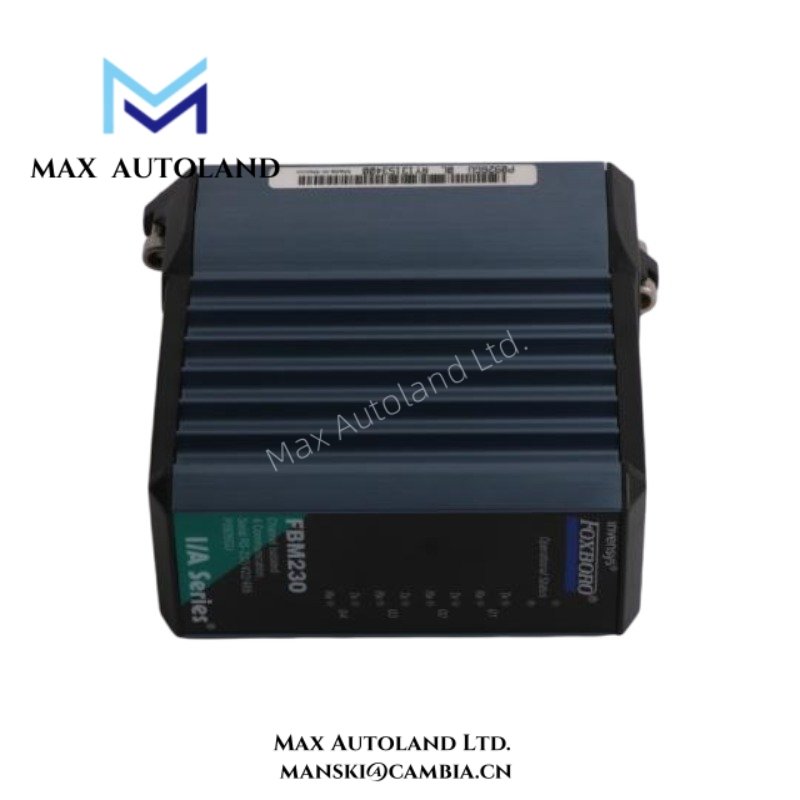

The FBM230 P0926GU from Foxboro delivers stable communication performance for I/A Series distributed control systems.
Moreover, this module ensures high-speed data exchange between field devices and system controllers with minimal latency.
Engineers choose FBM230 P0926GU for its compact structure, efficient power usage, and reliable long-term operation.
Additionally, the module supports seamless integration within the Foxboro I/A Series architecture for industrial automation environments.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM230 P0926GU |
| Manufacturer | Foxboro |
| Product Series | I/A Series Distributed Control System |
| Module Type | Communication Interface Module |
| Function | Provides high-speed data exchange between field I/O and control processors |
| Dimensions (H × W × D) | Approx. 114 mm × 45 mm × 104 mm |
| Weight | Approx. 0.3 kg (0.66 lbs) |
| Mounting Method | نصب on standard I/A Series baseplate |
| Power Supply Voltage | 24 V DC (nominal) |
| Operating Voltage Range | 19.2 V DC to 30 V DC |
| Power Consumption | ≤ 5 W typical during normal operation |
| Heat Dissipation | Low thermal output with optimized internal energy distribution |
| Communication Channels | Dual independent communication channels |
| Communication Interface Type | Proprietary Foxboro I/A Series communication bus |
| Data Transmission Rate | High-speed real-time data transfer (optimized for DCS communication cycles) |
| Signal Isolation | Electrical isolation between channels and system backplane |
| Number of Ports | 2 communication interfaces |
| Connector Type | Backplane connector (no external wiring required) |
| Protocol Support | Foxboro I/A Series control network protocol |
| Redundancy Support | Supports redundant communication configurations |
| Diagnostics | Built-in self-diagnostics and status monitoring |
| LED Indicators | Status LEDs for power, communication, and fault conditions |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Designed for industrial vibration environments (IEC compliant) |
| Shock Resistance | مقاوم للصدمات وفق المعايير الصناعية |
| EMC Compliance | Meets industrial electromagnetic compatibility standards |
| Insulation Rating | High insulation resistance for safe industrial operation |
| Energy Storage Components | Integrated capacitors for voltage stabilization and transient protection |
| MTBF (Mean Time Between Failures) | High reliability design suitable for continuous operation |
| Installation Environment | Suitable for control cabinets in industrial automation systems |
| Compatibility | Fully compatible with Foxboro I/A Series control systems |
| Certification | Complies with standard industrial automation certifications |
FAQ
Q1: Is the product new and original?
A1: Yes, the FBM230 P0926GU is brand new and original from the factory.
Q2: Do you have stock available?
A2: Yes, we keep FBM230 P0926GU in stock for immediate order processing.
Q3: How fast can you ship the product?
A3: We ship FBM230 P0926GU within 3 days to 2 weeks depending on order size.
Q4: Which logistics services do you use?
A4: We typically ship FBM230 P0926GU via DHL and other reliable global carriers.
Q5: What is the power requirement of this module?
A5: The FBM230 P0926GU operates on a 24 V DC power supply with low power consumption.
Q6: Do you support returns if quality issues occur?
A6: Yes, we support returns of FBM230 P0926GU within 30 days if quality problems arise.
