Overview

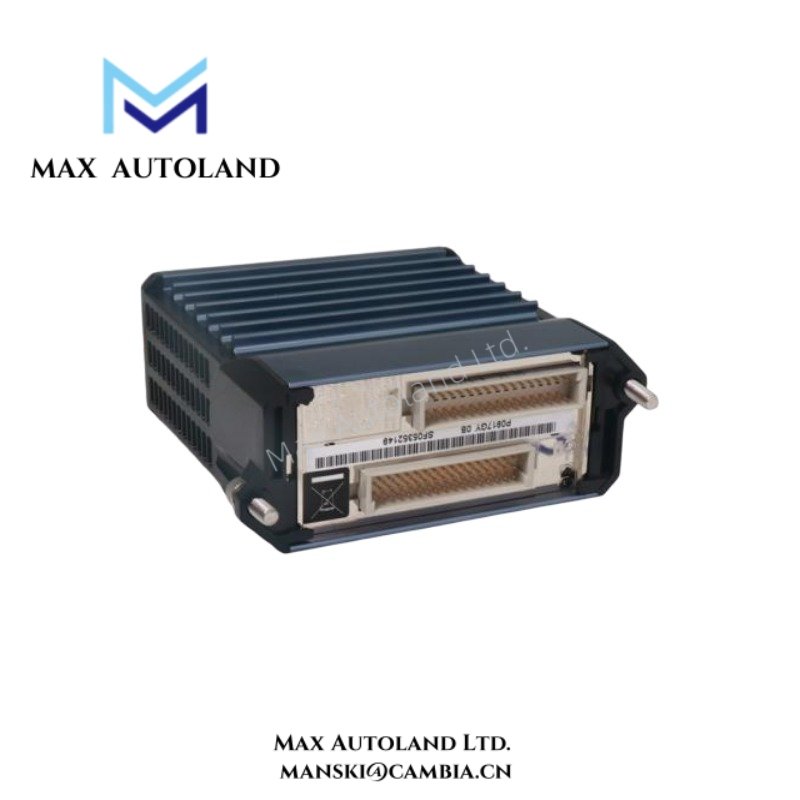

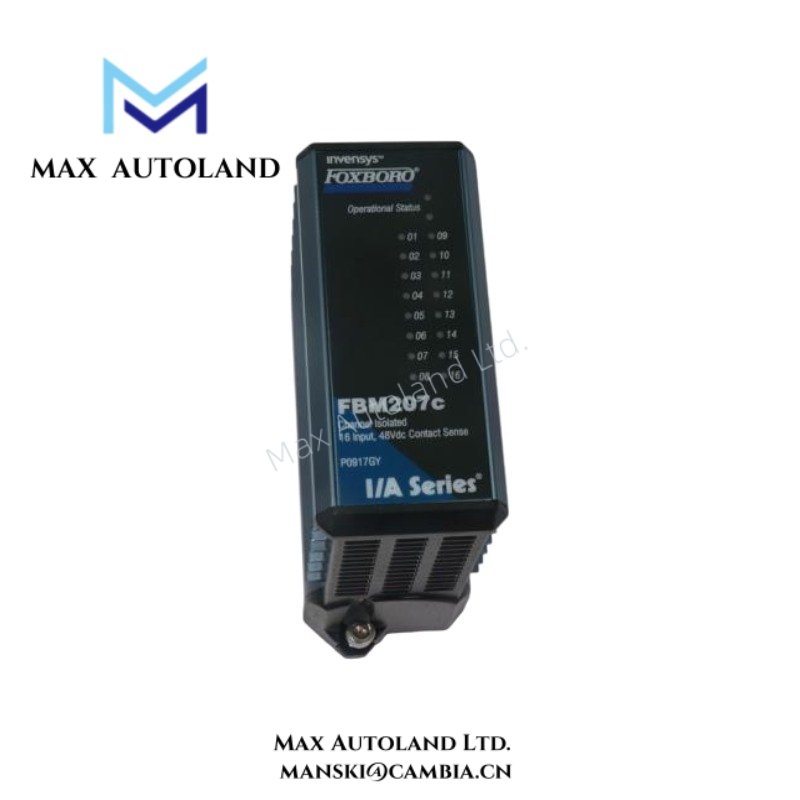

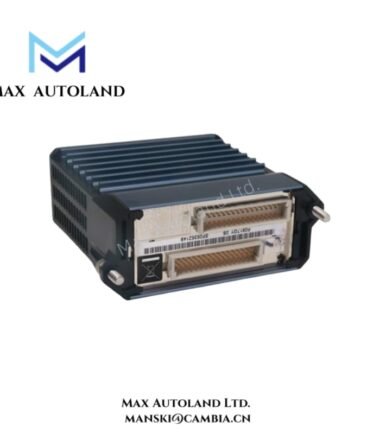

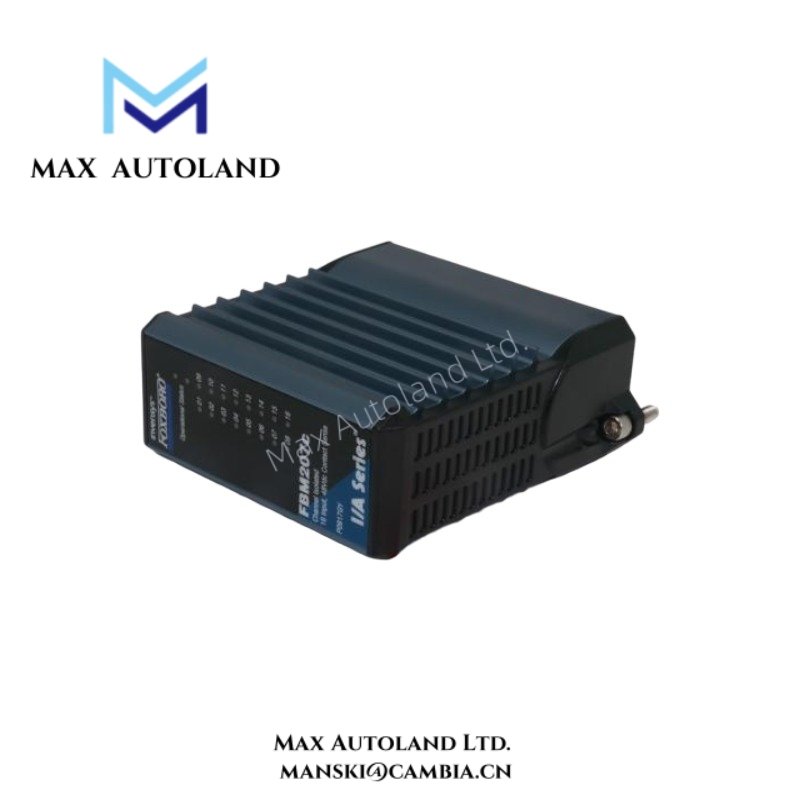

The FBM207C P0917GY from Foxboro provides precise voltage monitoring and contact sensing within I/A Series systems.
Moreover, the module supports 16 isolated input channels for reliable digital signal acquisition in industrial environments.
Engineers select FBM207C P0917GY for its high accuracy, strong isolation capability, and flexible configuration options.
Additionally, the module ensures stable communication with controllers through the I/A Series fieldbus architecture.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM207C P0917GY |
| Manufacturer | Foxboro |
| Series | I/A Series |
| Module Type | Voltage Monitor / Contact Sense Input Module |
| Input Channels | 16 isolated and independent channels |
| Input Voltage Range | -250 V DC to +250 V DC |
| Logic One Voltage | 15 to 60 V DC |
| Logic Zero Voltage | 0 to 5 V DC |
| Input Current | 1.4 mA typical |
| Input Impedance | > 10 MΩ |
| Accuracy | ±0.5% of full scale |
| Pulse Processing | 0 to 250 Hz without missing pulses |
| Filter Time | Configurable: 0 / 4 / 8 / 16 / 32 ms |
| Contact Sense Voltage | 48 V DC ±15% (FBM207C version) |
| Short-Circuit Current | 3.2 mA typical |
| Channel Isolation | Galvanic isolation between channels and ground |
| Isolation Strength | Withstands 600 V AC for 1 minute |
| Power Supply | 24 V DC nominal |
| Power Consumption | ≤ 5 W |
| Heat Dissipation | Approx. 5 W |
| Communication | 2 Mbps redundant fieldbus |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Vibration Resistance | 0.033 g rms (5–500 Hz) |
| Shock Resistance | 15 g, 20 ms |
| Weight | Approx. 0.24 kg |
| Energy Storage | Internal capacitors for voltage stabilization |
| Mounting | Standard I/A Series baseplate |
FAQ
Q1: Is the product new and original?
A1: Yes, the FBM207C P0917GY is brand new and original from the factory.
Q2: Do you have stock available?
A2: Yes, we keep FBM207C P0917GY in stock for immediate supply.
Q3: How fast can you ship the product?
A3: We ship FBM207C P0917GY within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics services do you use?
A4: We usually ship FBM207C P0917GY via DHL and other international carriers.
Q5: How many input channels does this module support?
A5: The FBM207C P0917GY supports 16 isolated input channels for accurate signal detection.
Q6: What voltage levels can this module detect?
A6: The FBM207C P0917GY detects signals from 0 to 60 V DC with precise logic thresholds.
Q7: Do you support returns if quality issues occur?
A7: Yes, we support returns of FBM207C P0917GY within 30 days if quality issues arise.
