Overview

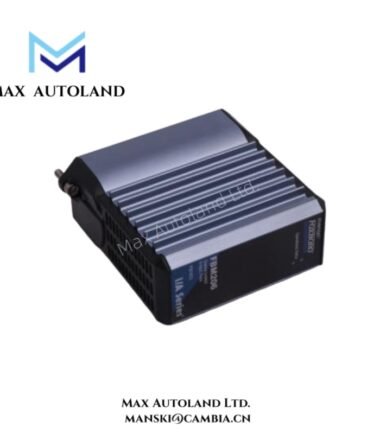

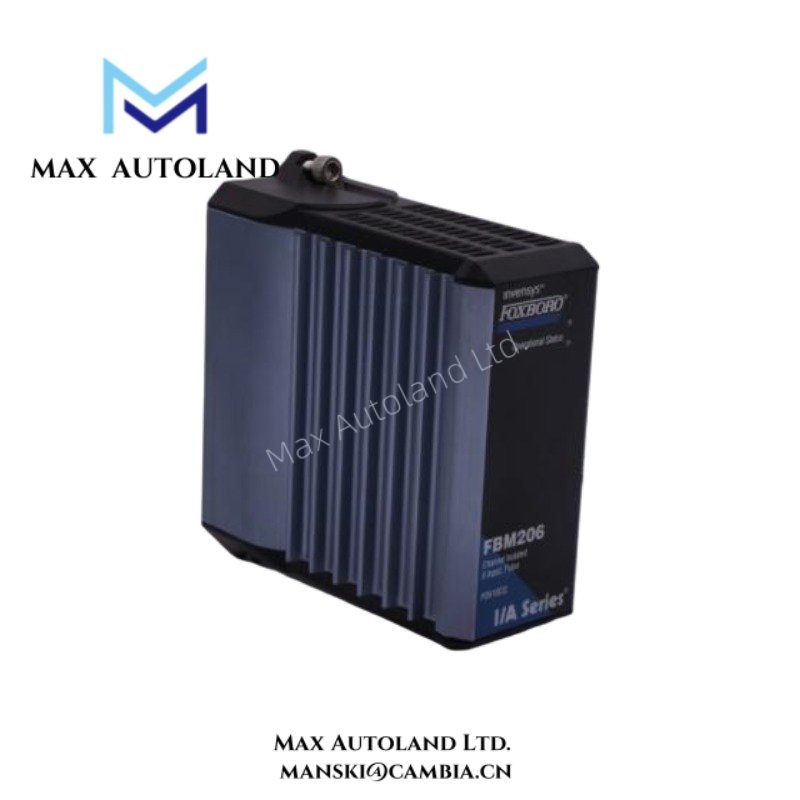

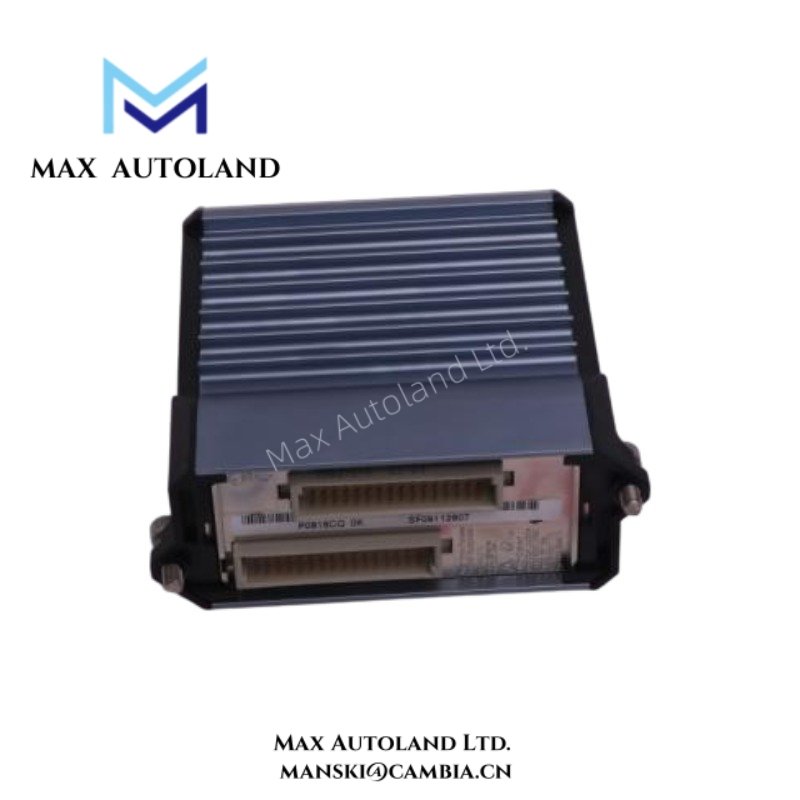

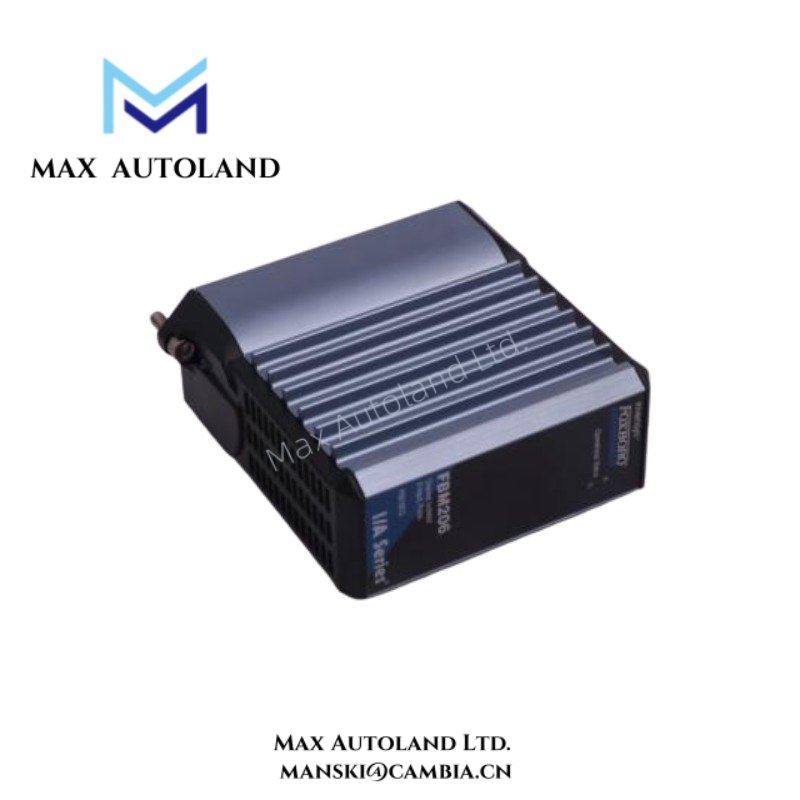

The FBM206 P0916CQ from Foxboro provides accurate pulse input counting for industrial automation and control systems.
Moreover, the FBM206 P0916CQ integrates into the Foxboro I/A Series architecture and delivers high-stability signal processing.
Additionally, the module supports multiple isolated inputs and improves field device connectivity in complex systems.
Therefore, engineers choose the FBM206 P0916CQ for dependable pulse acquisition and efficient system operation.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM206 P0916CQ |
| Manufacturer | Foxboro (Schneider Electric) |
| Product Type | Pulse Input Module |
| Series | Foxboro I/A Series |
| Input Channels | 16 pulse input channels |
| Input Type | Digital pulse signals |
| Input Voltage | 24 V DC nominal |
| Input Voltage Range | 15–32 V DC |
| Input Current | Approx. 2–5 mA per channel |
| Channel Isolation | Optical isolation between channels and system |
| Response Frequency | High-speed counting up to industrial input frequencies |
| Connector Type | Backplane connector with field terminal interface |
| Power Supply | Powered through system backplane |
| Power Consumption | Typically less than 6 W |
| Energy Dissipation | Low heat output suitable for dense cabinet layouts |
| Dimensions (H × W × D) | Approx. 200 mm × 120 mm × 60 mm |
| Weight | Approx. 0.9 kg |
| Mounting Method | DIN rail or panel mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| EMC Compliance | Meets IEC/EN 61000 industrial EMC standards |
| Vibration Resistance | Designed for industrial vibration environments |
| Status Indicators | LED indicators for input activity and module status |
| Installation Environment | Industrial control cabinets and distributed control systems |
FAQ
Q1: Is the FBM206 P0916CQ brand new and original?
A1: Yes, the FBM206 P0916CQ is brand new and original from the manufacturer.
Q2: Do you have the FBM206 P0916CQ in stock?
A2: Yes, we keep the FBM206 P0916CQ in stock and ready for immediate order processing.
Q3: How fast can you ship the FBM206 P0916CQ?
A3: We ship the FBM206 P0916CQ within 3 days to 2 weeks depending on order size.
Q4: Which logistics carriers do you use?
A4: We usually ship the FBM206 P0916CQ via DHL and other major international carriers.
Q5: What input channels does the FBM206 P0916CQ support?
A5: The FBM206 P0916CQ supports 16 isolated pulse input channels for industrial counting.
Q6: Do you support returns if there is a quality issue?
A6: Yes, we support returns of the FBM206 P0916CQ within 30 days if any quality problem occurs.
