Overview

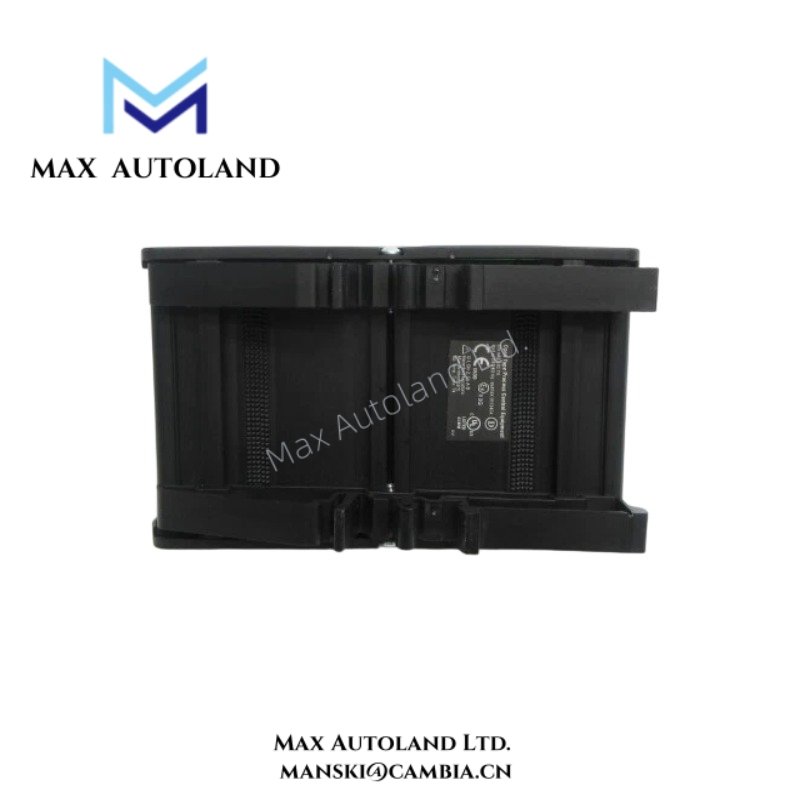

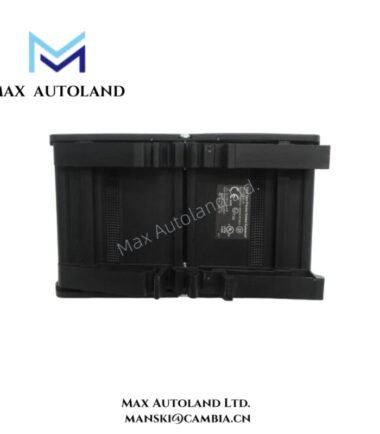

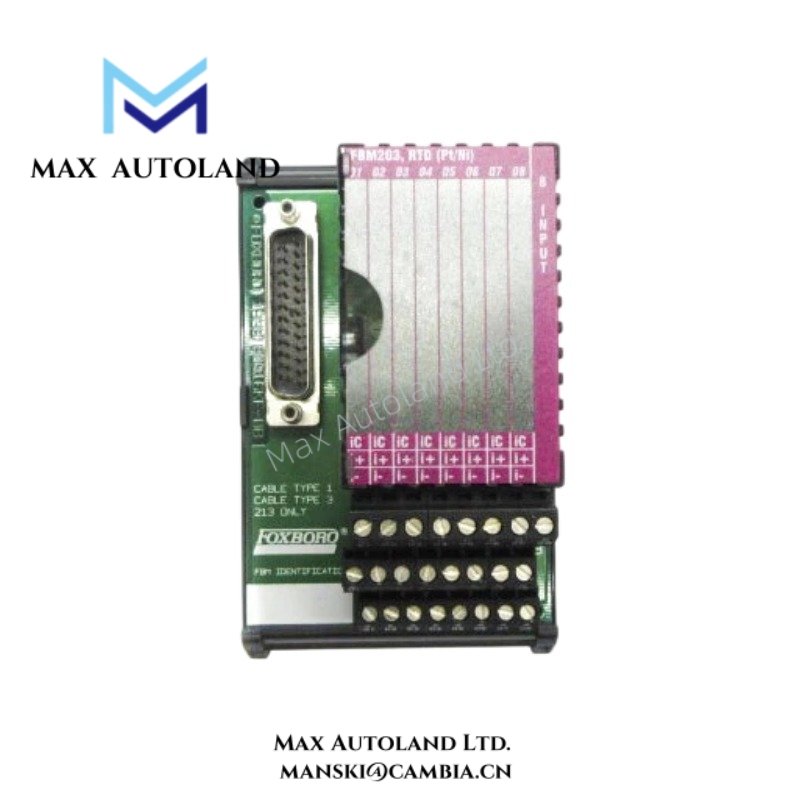

The FBM203 P0916AE from Foxboro delivers precise temperature measurement using RTD sensors in I/A Series systems.
Moreover, the module supports eight isolated input channels for accurate and stable multi-point temperature monitoring.
Engineers rely on FBM203 P0916AE for high measurement accuracy and consistent performance in demanding industrial environments.
Additionally, the module integrates seamlessly within Foxboro I/A Series architectures for efficient distributed control deployment.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM203 P0916AE |
| Manufacturer | Foxboro |
| Series | I/A Series |
| Module Type | Channel Isolated RTD Input Module |
| Input Channels | 8 isolated RTD inputs |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000 |
| Measurement Range | -200°C to +850°C (sensor dependent) |
| Measurement Accuracy | ±0.1% of span |
| Resolution | High-resolution A/D conversion |
| Input Configuration | 2-wire, 3-wire, and 4-wire RTD support |
| Input Current | Low excitation current to minimize self-heating |
| Channel Isolation | Channel-to-channel and channel-to-ground isolation |
| Isolation Voltage | Up to 600 V AC |
| Conversion Time | Fast update rate for real-time monitoring |
| Power Supply | 24 V DC nominal |
| Operating Voltage Range | 19.2 V DC to 30 V DC |
| Power Consumption | ≤ 5 W |
| Heat Dissipation | Optimized low heat output design |
| Communication Interface | I/A Series system backplane |
| Data Transmission | High-speed internal communication |
| Connector Type | Backplane connector |
| Diagnostics | Built-in self-diagnostics and fault detection |
| LED Indicators | Channel status and module health indicators |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Industrial-grade vibration tolerance |
| Shock Resistance | Designed for harsh environments |
| Dimensions (H × W × D) | Approx. 114 mm × 45 mm × 104 mm |
| Weight | Approx. 0.28 kg |
| Energy Storage | Internal capacitors for voltage stabilization |
| Mounting | Standard I/A Series baseplate |
FAQ
A1: Yes, the FBM203 P0916AE is brand new and original from the factory.
Q2: Do you have stock available?
A2: Yes, we keep FBM203 P0916AE in stock for immediate delivery.
Q3: How fast can you ship the product?
A3: We ship FBM203 P0916AE within 3 days to 2 weeks depending on order size.
Q4: Which logistics services do you use?
A4: We usually ship FBM203 P0916AE via DHL and other international logistics providers.
Q5: What types of RTD sensors does this module support?
A5: The FBM203 P0916AE supports Pt100, Pt200, Pt500, and Pt1000 RTD sensors.
Q6: How many input channels are available on this module?
A6: The FBM203 P0916AE provides eight isolated RTD input channels for accurate measurement.
Q7: Do you support returns if quality issues occur?
A7: Yes, we support returns of FBM203 P0916AE within 30 days if any quality issues occur.
