Overview

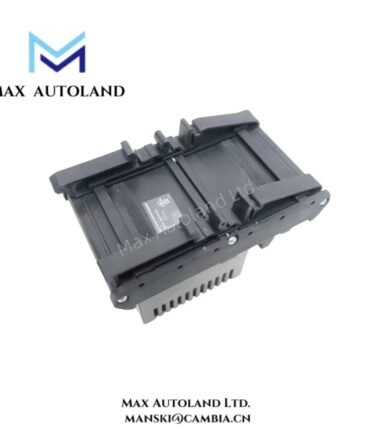

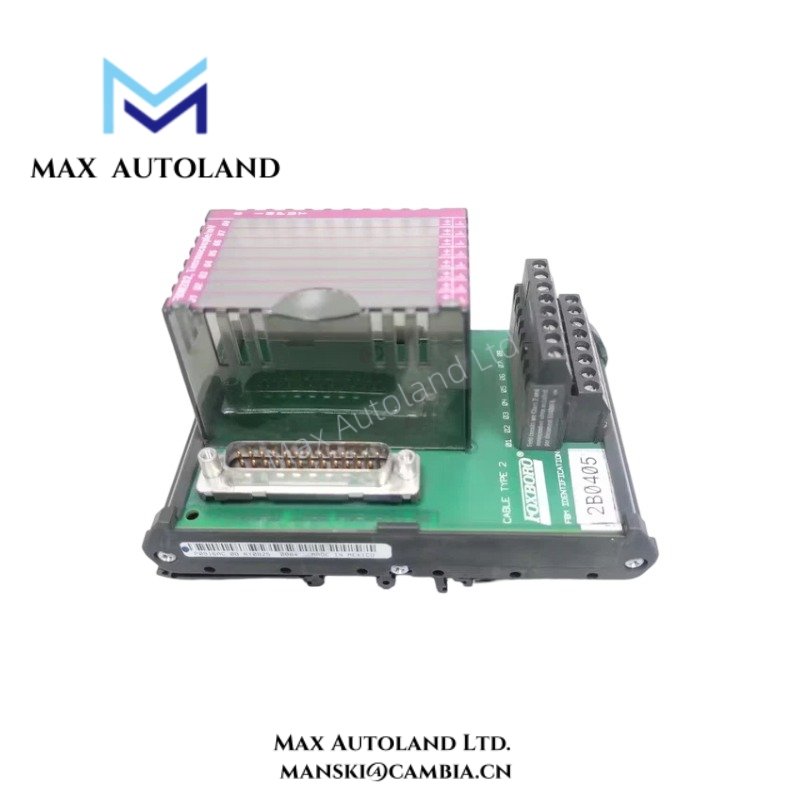

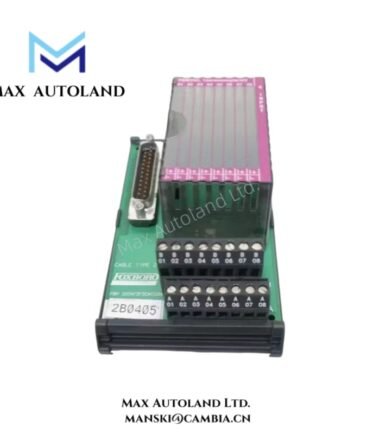

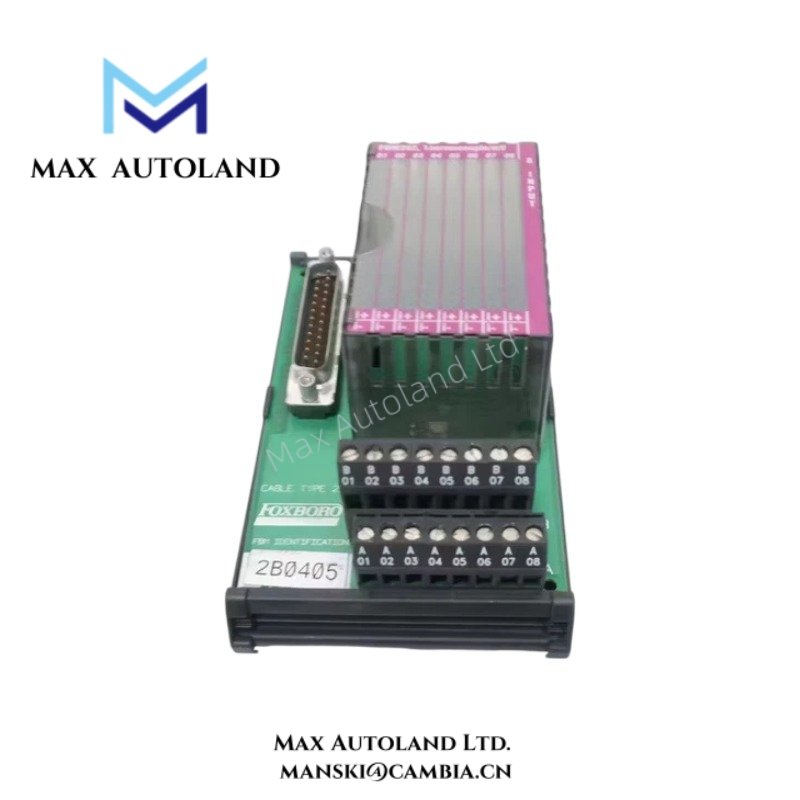

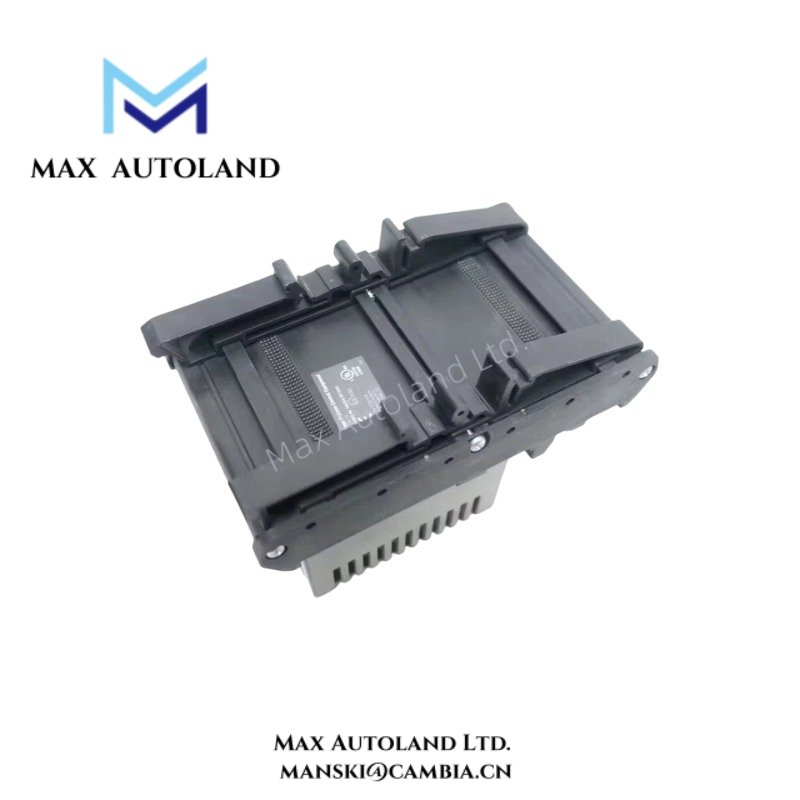

The FBM202 P0916AC from Foxboro delivers precise analog signal acquisition for I/A Series control systems.
Moreover, the module supports multiple input channels for stable and accurate monitoring of process signals.
Engineers select FBM202 P0916AC because it ensures reliable performance and consistent data accuracy in industrial environments.
Additionally, the module integrates directly into Foxboro I/A Series architecture for flexible and scalable deployment.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM202 P0916AC |
| Manufacturer | Foxboro |
| Series | I/A Series |
| Module Type | Analog Input Module |
| Input Channels | 8 analog input channels |
| Input Signal Type | 4–20 mA current input |
| Input Range | 0 to 20 mA / 4 to 20 mA |
| Accuracy | ±0.1% of full scale |
| Resolution | High-resolution A/D conversion |
| Input Impedance | Low impedance for current loop compatibility |
| Channel Isolation | Channel-to-channel and channel-to-ground isolation |
| Isolation Voltage | Up to 600 V AC |
| Sampling Rate | Fast sampling for real-time monitoring |
| Power Supply | 24 V DC nominal |
| Operating Voltage Range | 19.2 V DC to 30 V DC |
| Power Consumption | ≤ 5 W |
| Heat Dissipation | Low heat output design |
| Communication Interface | I/A Series backplane |
| Data Transmission | High-speed internal communication |
| Connector Type | Backplane connector |
| Diagnostics | Built-in diagnostics and fault detection |
| LED Indicators | Channel status and module health indicators |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Industrial-grade vibration tolerance |
| Shock Resistance | Designed for harsh industrial environments |
| Dimensions (H × W × D) | Approx. 114 mm × 45 mm × 104 mm |
| Weight | Approx. 0.28 kg |
| Energy Storage | Internal capacitors for voltage stabilization |
| Mounting | Standard I/A Series baseplate |
FAQ
Q1: Is the product new and original?
A1: Yes, the FBM202 P0916AC is brand new and original from the factory.
Q2: Do you have stock available?
A2: Yes, we keep FBM202 P0916AC in stock for immediate shipment.
Q3: How fast can you ship the product?
A3: We ship FBM202 P0916AC within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics services do you use?
A4: We usually ship FBM202 P0916AC via DHL and other international carriers.
Q5: What type of signals does this module support?
A5: The FBM202 P0916AC supports 4–20 mA analog current signals for industrial measurement applications.
Q6: How many input channels are available?
A6: The FBM202 P0916AC provides eight analog input channels for accurate signal acquisition.
Q7: Do you support returns if quality issues occur?
A7: Yes, we support returns of FBM202 P0916AC within 30 days if any quality issues occur.
