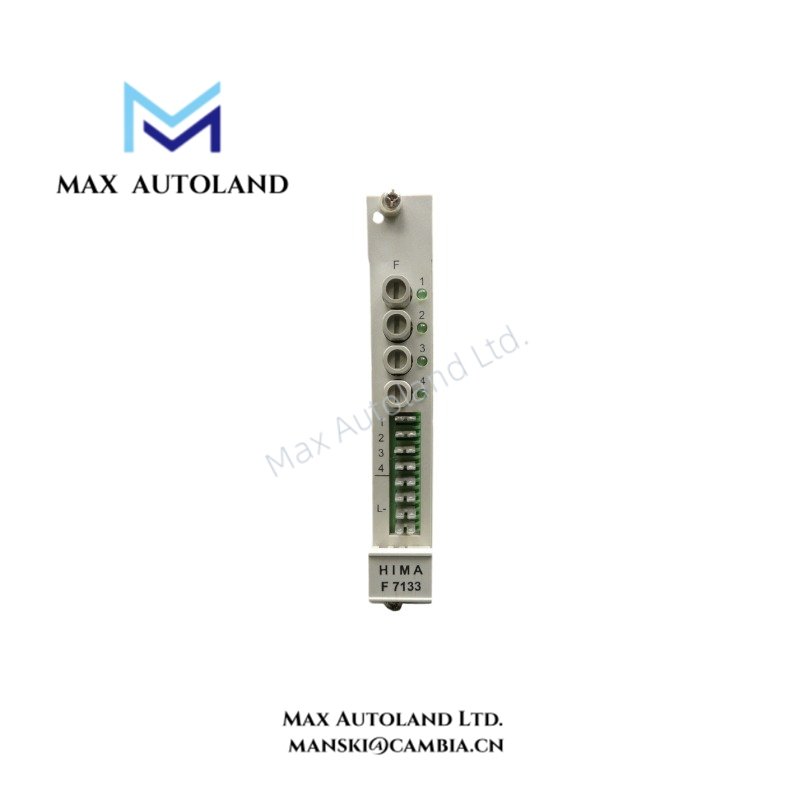

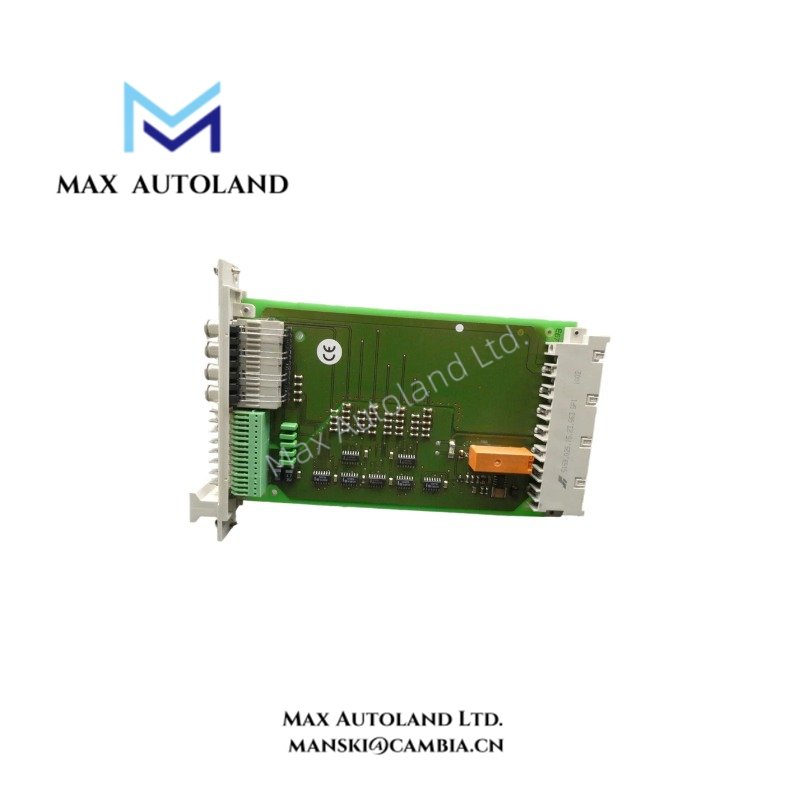

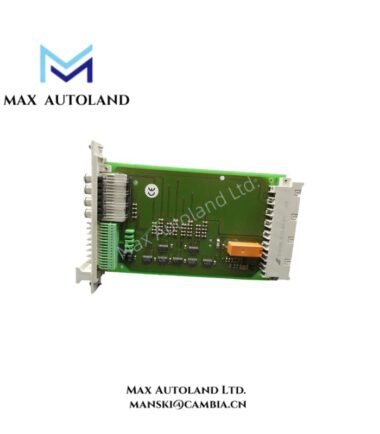

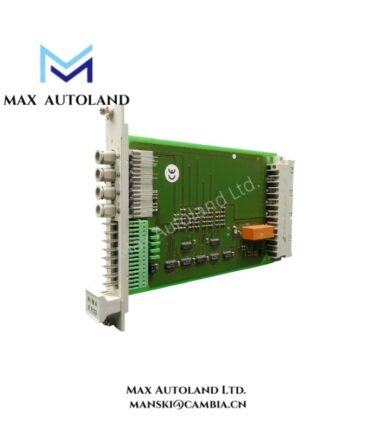

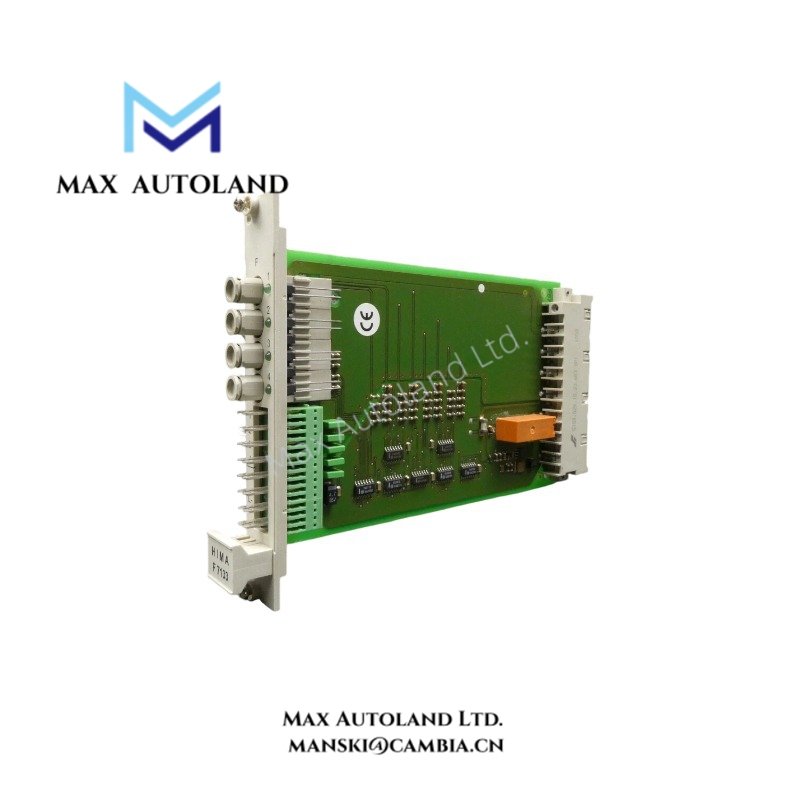

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F7133 |
| Spare Model | 984713302 F7133, F-7133 |
| Brand | HIMA |
| Product Type | 4-Channel Power Distribution Module |
| Number of Channels | 4 |
| Maximum Fuse Rating | 4 A, slow-blow |
| Relay Switching Time | Approximately 100 ms |
| Relay Contact Rating | 30 V / 4 A, continuous load |
| Condition | New, original, factory-sealed (as supplied) |
| Manufacturer Status | Discontinued |
| Country of Origin | Germany (to be verified) |
| Estimated Shipping Dimensions | 2 x 18.8 x 12.8 cm |
| Weight | 0.16 kg |
| HS Code | 8537101190 |
Power Distribution and Circuit Protection
The F7133 distributes power across four channels, while slow-blow fuses help protect the connected circuits against overcurrent. Each fuse can have a rating of up to 4 A. Therefore, select the fuse according to the connected load and the electrical requirements of the installed system.
The relay contacts support a continuous load rating of 30 V and 4 A. Meanwhile, the approximate switching time of 100 ms helps maintenance personnel assess relay-operated switching requirements. However, these ratings alone do not confirm suitability for every load type or switching condition.
Maintenance and Replacement
HIMA lists the F7133 as discontinued in the supplied product information. Consequently, maintenance teams should verify the complete model number and the existing system configuration before ordering a replacement unit. Although a matching model can help maintain the original configuration, the available information does not confirm a direct successor or interchangeability with other HIMA modules.
Frequently Asked Questions
Q: How many channels does the HIMA F7133 support?
A: The F7133 has four power distribution channels. Each channel supports a slow-blow fuse rated at up to 4 A, subject to the installed system requirements.
Q: What are the relay specifications of the F7133?
A: The relay contacts have a continuous-load rating of 30 V / 4 A, with an approximate switching time of 100 ms. Before use, check that these values match the intended load and switching requirements.
Q: Can the HIMA F7133 be replaced by another module?
A: The F7133 is listed as discontinued. However, the available data does not identify a confirmed replacement. Check the system documentation and electrical requirements before selecting an alternative.
