Overview

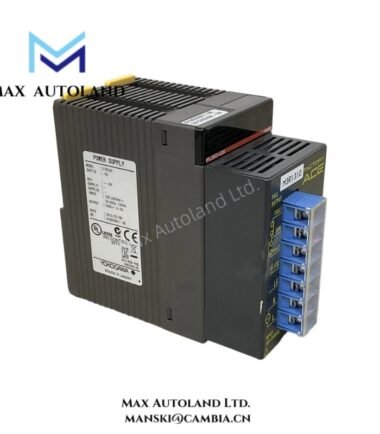

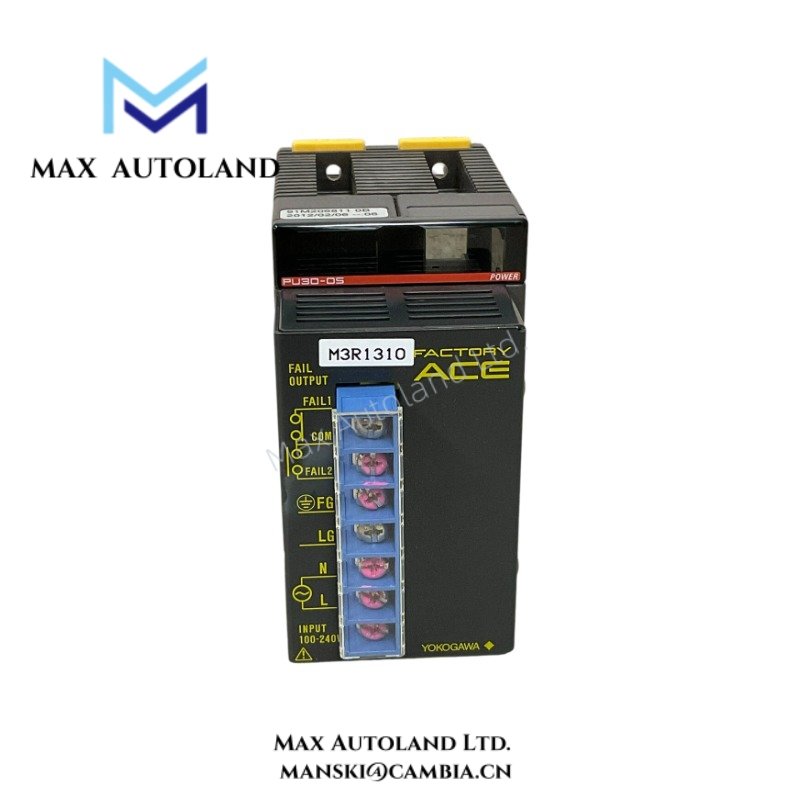

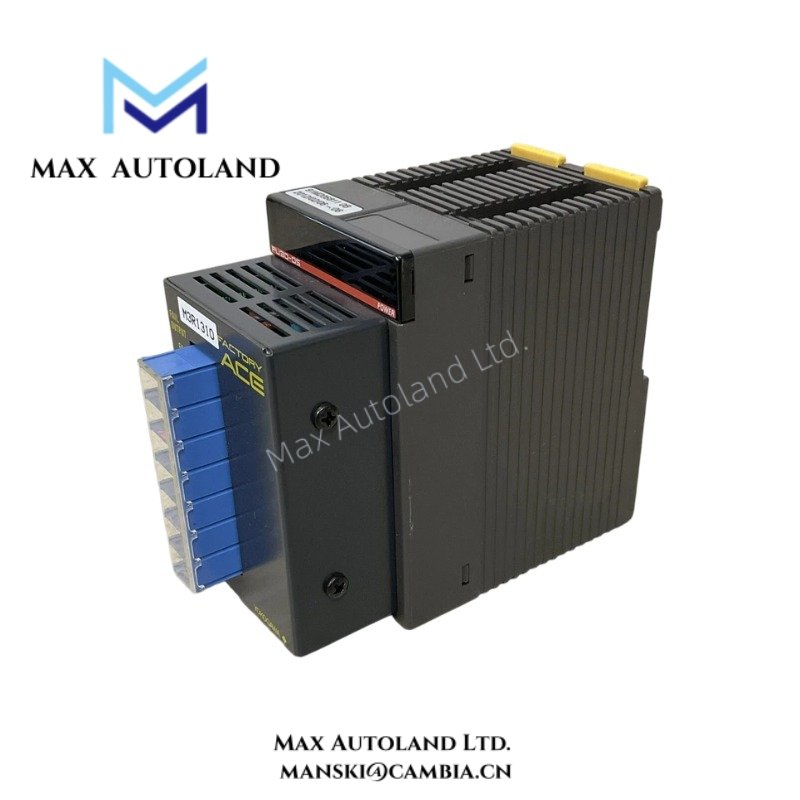

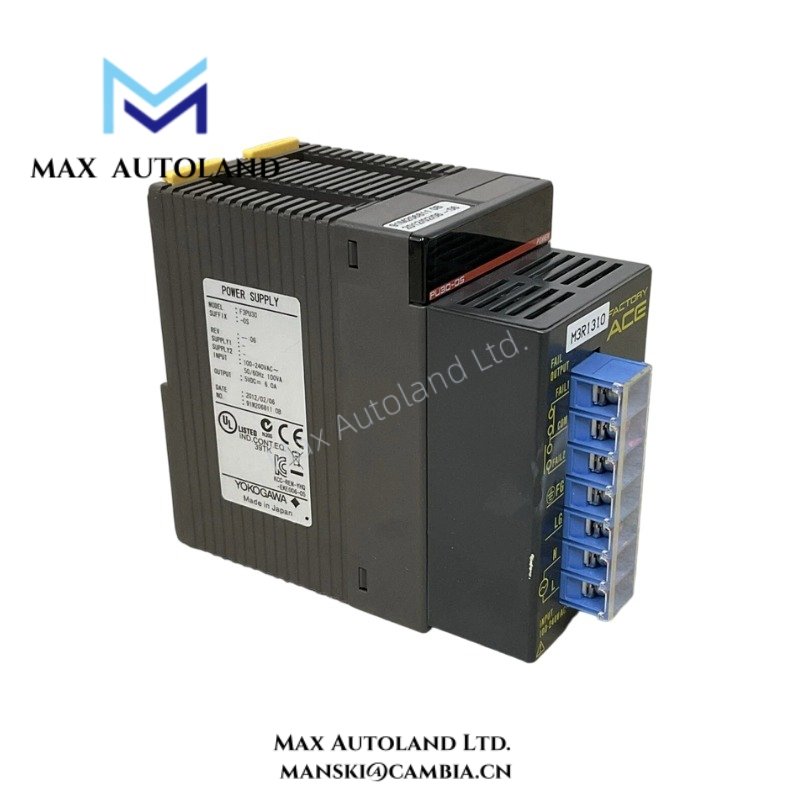

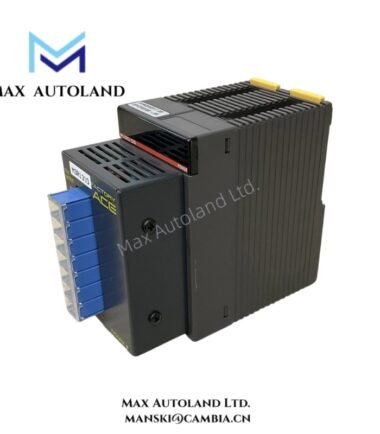

F3PU30-0S from YOKOGAWA provides stable and efficient power for FA control system modules.
Moreover, the module supports consistent voltage regulation for sensitive automation equipment and communication units.
Engineers select F3PU30-0S to ensure uninterrupted operation in demanding industrial environments.
Additionally, the compact housing simplifies installation inside densely populated control cabinets.
Therefore, users improve system stability while maintaining efficient energy distribution across connected modules.
Specification
| Parameter | Specification |
|---|---|
| Model | F3PU30-0S |
| Manufacturer | YOKOGAWA |
| Module Type | Power Supply Module |
| Supported Systems | FA Control Systems / CENTUM-compatible platforms |
| Input Voltage | 100–240 V AC (wide-range input) |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 V DC (regulated) |
| Output Current | Approx. 3.0 A |
| Output Power | Approx. 72 W |
| Voltage Regulation Accuracy | ±1% typical |
| Ripple and Noise | < 100 mVp-p |
| Efficiency | Approx. 85% to 90% |
| Inrush Current | Controlled via internal soft-start circuit |
| Protection Functions | Overvoltage, overcurrent, and short-circuit protection |
| Energy Storage | Internal electrolytic capacitors for transient buffering |
| Cooling Method | Natural air convection |
| Mounting Method | Rack-mounted on Yokogawa base unit |
| Slot Requirement | Single slot installation |
| Dimensions (W × H × D) | Approx. 32 × 130 × 107 mm |
| Weight | Approx. 0.4 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Insulation Resistance | Meets industrial insulation standards |
| Dielectric Strength | Complies with safety isolation requirements |
| EMC Compliance | Industrial EMC standards for immunity and emissions |
FAQ
Q1: What input voltage range does F3PU30-0S support?
A1: F3PU30-0S supports a wide input range from 100 to 240 V AC.
Q2: What output capacity does the module provide?
A2: The module provides 24 V DC output with approximately 3.0 A current capacity.
Q3: Does F3PU30-0S include protection features?
A3: Yes, it includes overcurrent, overvoltage, and short-circuit protection mechanisms.
Q4: What is the product condition and stock status?
A4: The product is brand new original, available in stock, and ready for fast dispatch.
Q5: How long does shipping usually take?
A5: We ship within 3 days to 2 weeks depending on order size and processing requirements.
Q6: Which logistics services do you provide?
A6: We commonly use DHL and other trusted international logistics carriers.
Q7: What happens if the product has quality issues?
A7: We support returns within 30 days if any quality problems occur after delivery.
