Overview

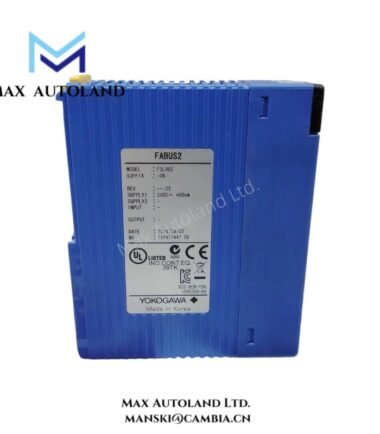

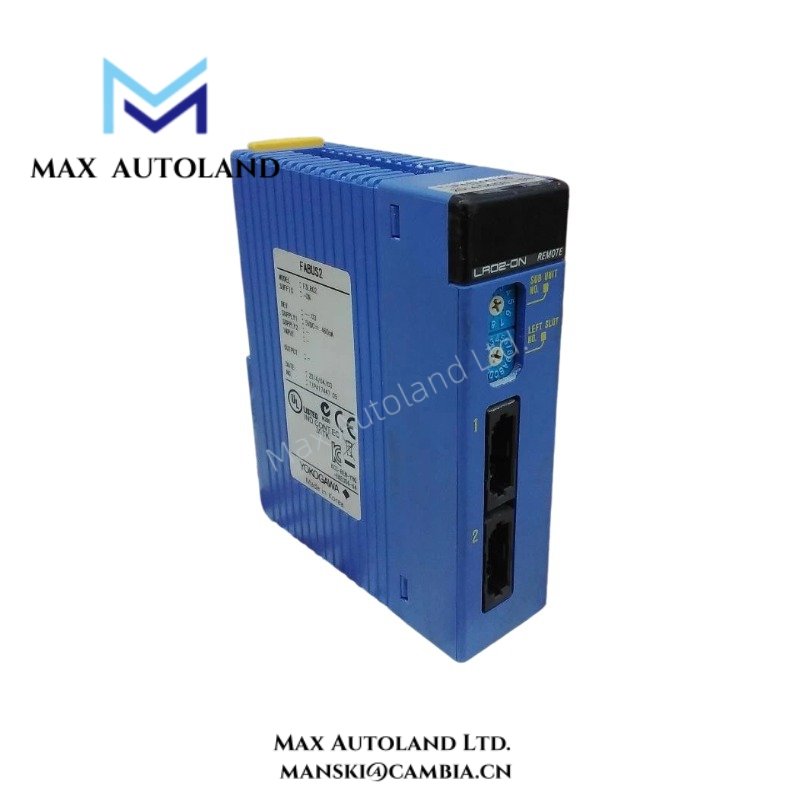

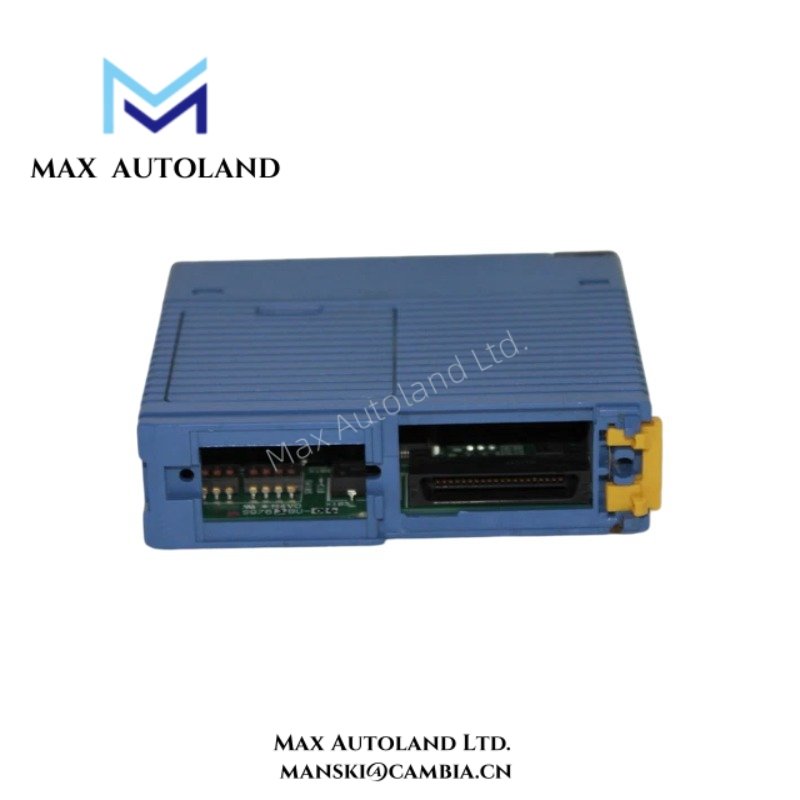

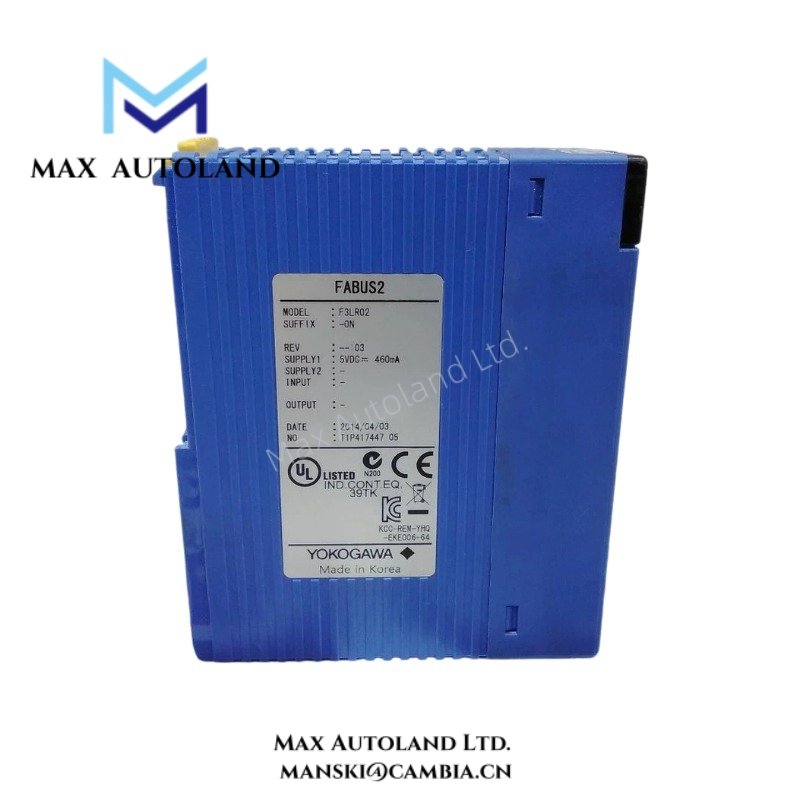

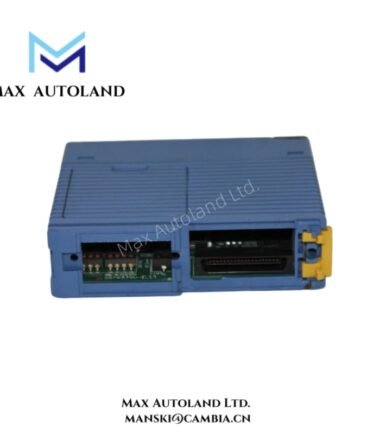

F3LR02-0N from YOKOGAWA delivers reliable fiber-optic communication for FA-bus Type 2 control systems.
Moreover, the module ensures high-speed data transmission across distributed industrial automation architectures.
Engineers use F3LR02-0N to maintain stable signal integrity in electrically noisy plant environments.
Additionally, the design supports long-distance communication through optical fiber connections.
Therefore, users achieve improved system reliability and reduced electromagnetic interference risks.
Specification
| Parameter | Specification |
|---|---|
| Model | F3LR02-0N |
| Manufacturer | YOKOGAWA |
| Module Type | Fiber-optic FA-bus Type 2 Communication Module |
| Supported Systems | CENTUM CS / CENTUM VP |
| Communication Protocol | FA-bus Type 2 |
| Transmission Medium | Multi-mode optical fiber |
| Optical Interface | Dual fiber-optic ports (Tx/Rx) |
| Optical Wavelength | 850 nm (typical for multi-mode fiber) |
| Transmission Speed | High-speed FA-bus communication (deterministic control network) |
| Maximum Transmission Distance | Up to 2 km (depending on fiber quality and topology) |
| Topology Support | Bus / ring configurations (system-dependent) |
| Node Connection | Supports multiple FA-bus nodes within system architecture |
| Signal Isolation | पूर्ण optical isolation between communication nodes |
| Error Detection | Built-in communication error detection and correction mechanisms |
| Power Supply | 5 V DC supplied from base unit |
| Power Consumption | Approx. 1.5 W to 2.5 W |
| Mounting Method | Rack-mounted on Yokogawa base unit |
| Slot Requirement | Occupies one module slot |
| Dimensions (W × H × D) | Approx. 32 × 130 × 107 mm |
| Weight | Approx. 0.3 kg |
| Cooling Method | Natural convection (no fan required) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | Complies with industrial vibration standards |
| Shock Resistance | Designed for industrial shock tolerance |
| EMC Compliance | Industrial EMC standards for noise immunity |
| Installation Environment | Indoor control cabinet installation |
| Cable Type | Standard multi-mode fiber (50/125 µm or 62.5/125 µm) |
| Connector Type | Industrial fiber connectors (system-specific) |
| Redundancy Support | Supports redundant FA-bus configurations (system-dependent) |
| Maintenance Requirement | Minimal, periodic optical inspection recommended |
FAQ
Q1: What systems support F3LR02-0N?
A1: F3LR02-0N works with YOKOGAWA CENTUM CS and CENTUM VP distributed control systems.
Q2: What transmission distance does the module support?
A2: The module supports up to 2 km depending on fiber type and installation conditions.
Q3: Does F3LR02-0N provide electrical isolation?
A3: Yes, the module uses optical isolation to protect systems from electrical interference.
Q4: What is the delivery and stock status?
A4: The product is brand new original, in stock, and ships within 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and other reliable international logistics providers.
Q6: What is your return policy?
A6: We support returns within 30 days if any quality issues occur.
