Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

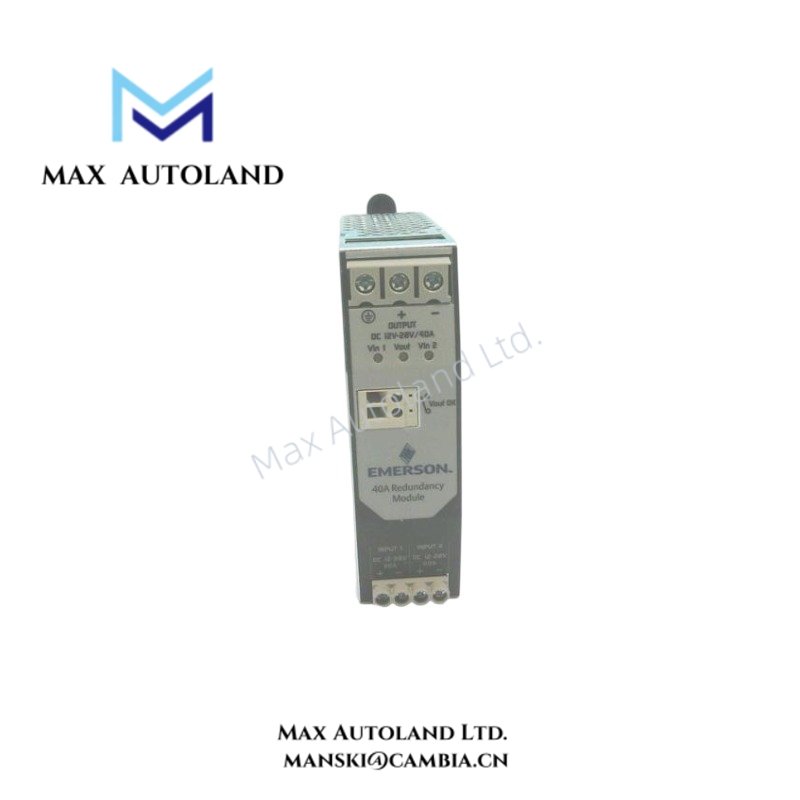

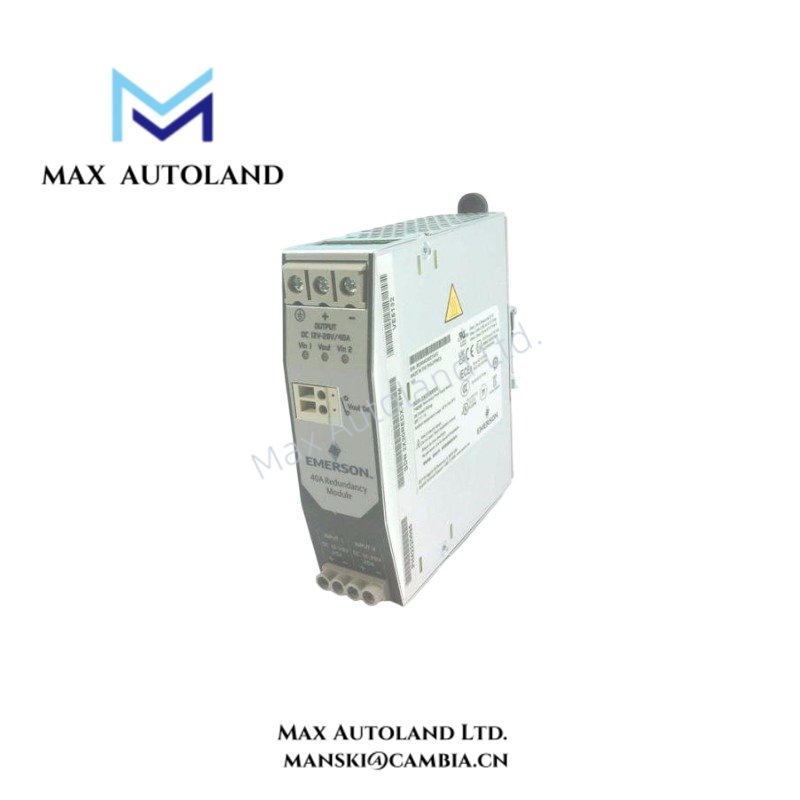

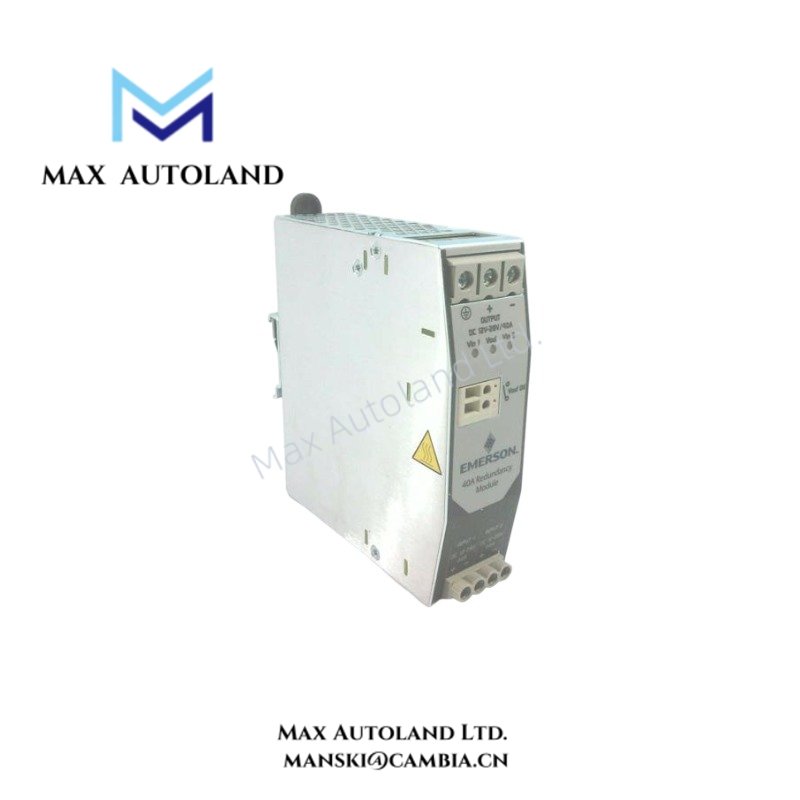

| Model | VE5132 |
| Brand | Emerson |
| Origin | USA |
| Product Type | Bulk Power Supply Redundancy Module |
| Weight | 0.8 lbs (0.36 kg) |
| Dimensions | 123.2 mm H x 35 mm W x 113.3 mm D |
| Input Voltage Range | 12 VDC to 28 VDC |
| Operational Voltage Range | 10.8 VDC to 30.8 VDC |
| Output Current | 40 A maximum |
| Redundancy Configuration | Dual power paths for automatic failover |
| Alarm Relay Contact | Normally open DC OK contact, maximum 60 VDC at 1 A |
| Protection Rating | IP20 |
| Environmental Feature | Conformal coating for industrial environmental protection |
Emerson DeltaV DC Power Redundancy and System Integration
The VE5132 manages redundant DC supply paths within the Emerson DeltaV power architecture. It monitors connected power inputs and maintains continuous DC output through dual-path configuration. Therefore, the module reduces interruption risks caused by individual supply path faults.
The module uses industrial DC distribution principles and supports DeltaV system power structures requiring controlled power availability. Its conformal coating improves resistance against contaminants and supports installation in demanding control cabinet environments.
As an Emerson DeltaV component, the VE5132 operates independently from process signal modules. It provides power path supervision rather than field signal acquisition, such as 4-20 mA HART loop processing or FOUNDATION Fieldbus communication.
Frequently Asked Questions
Q: Does the VE5132 provide field signal communication functions?
A: No. The VE5132 is a power redundancy module and does not process analog, digital, HART, or fieldbus field signals.
Q: What is the purpose of the dual power path design?
A: The dual power path design allows the module to maintain DC output availability when one connected power source path becomes unavailable.
Q: Can the VE5132 be installed outside a control cabinet environment?
A: No. The module is designed for IP20-rated cabinet installation and requires appropriate enclosure protection for field environments.
Field Installation Guidelines
- Install the VE5132 on a suitable DIN rail or cabinet mounting structure according to DeltaV hardware installation practices.
- Verify DC supply polarity before connecting input power terminals.
- Keep DC power wiring separated from high-voltage AC cables and high-noise switching circuits.
- Use appropriate grounding methods for the cabinet enclosure and connected power system.
- Confirm alarm relay wiring meets the connected monitoring circuit voltage and current requirements.
- Inspect terminal connections periodically to maintain proper electrical contact.
- Maintain adequate cabinet airflow according to the system enclosure design requirements.
