Overview

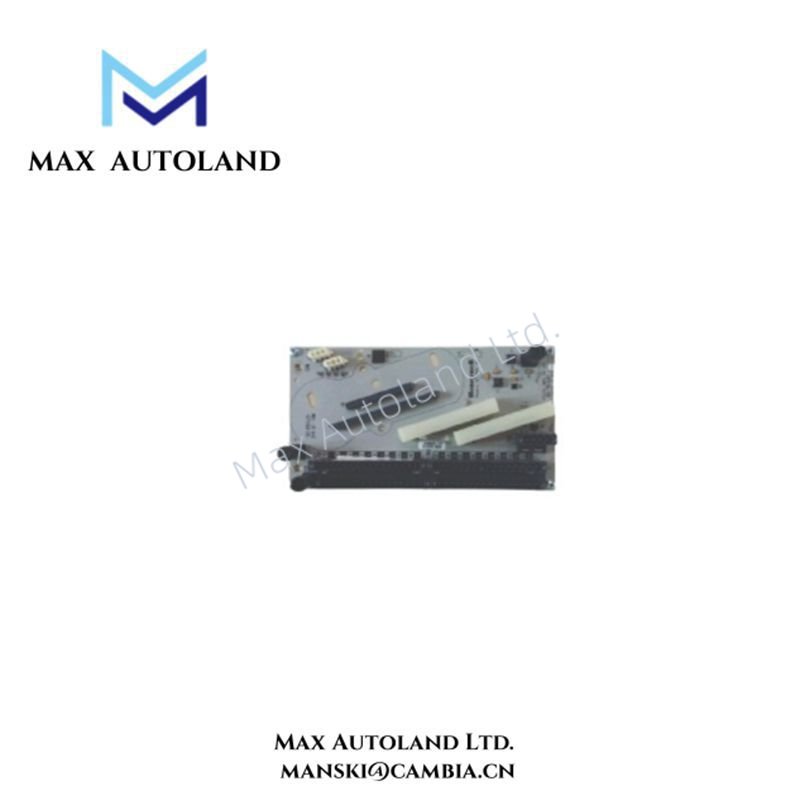

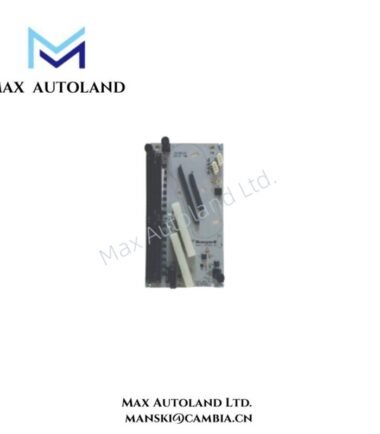

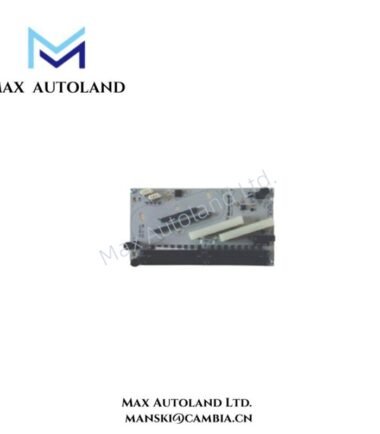

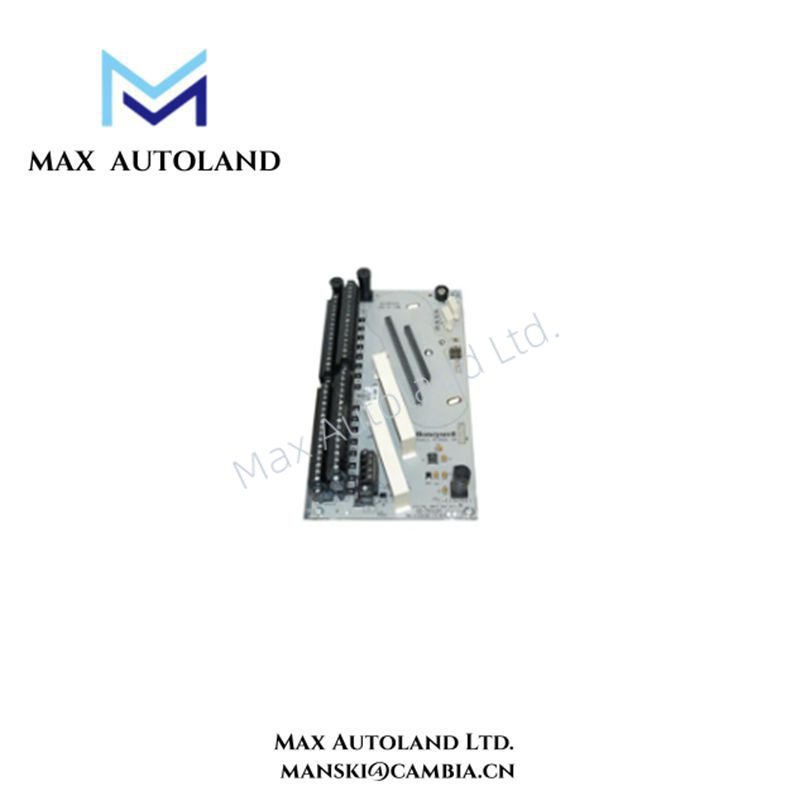

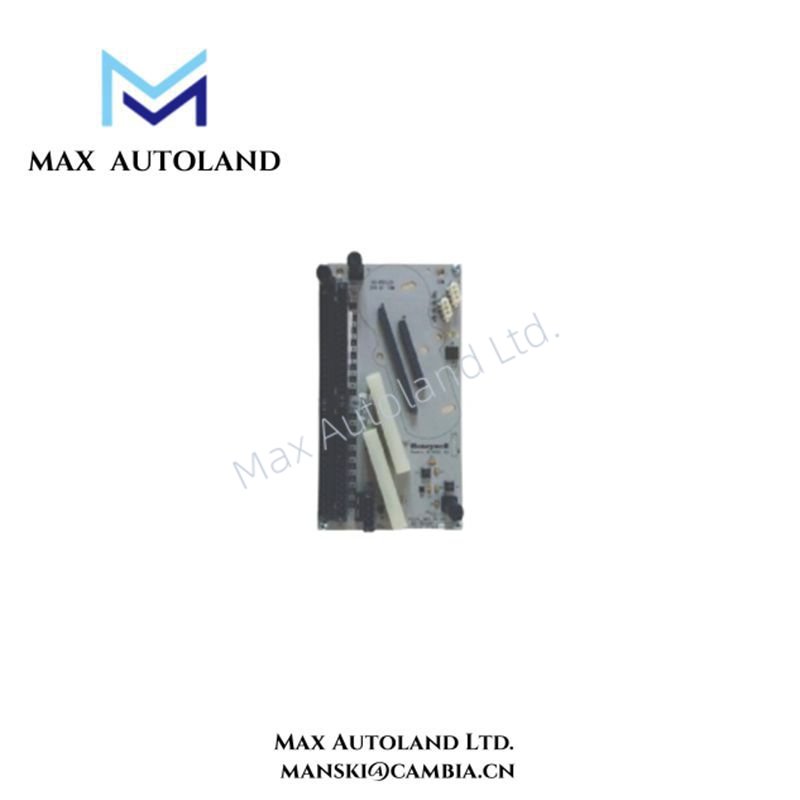

The Honeywell CC-TUIO01 functions as a versatile Universal Input Output I/O Terminal Adapter (IOTA) for the Experion PKS C300 system. It provides 32 configurable channels that support multiple input and output types, offering flexibility and scalability in industrial automation applications.
The CC-TUIO01 interfaces directly with analog input, analog output, digital input, and digital output field devices. Each channel withstands field shorts without damaging the IOM or IOTA, and other channels on the same IOM remain fully operational. The AI, AO, and DI channels include enhanced protection and certification, supporting energy-limited, nonincendive field wiring connections in Zone 2 / Division 2 hazardous locations.
Specification
| Feature | Specification |
|---|---|
| Model Number | CC-TUIO01 |
| Product Type | Universal Input Output I/O Terminal Adapter Non Redundant 12″ |
| Manufacturer | Honeywell |
| System Compatibility | Experion PKS C300 |
| Channels | 32 (configurable per channel) |
| Input Types | Analog (voltage/current), Digital, Pulse |
| Output Types | Analog (voltage/current), Digital |
| Power Supply | 24 VDC nominal (20–30 VDC range) |
| Power Consumption | 1.5 W typical, 3 W maximum |
| Operating Temperature | -40°C to +70°C |
| HART Support | HART 7 for analog I/O |
| Protection Features | Open wire detection, short circuit protection, fast scan |
| Mounting | DIN rail or panel |
| Dimensions (L × W × H) | 11.5 × 8.5 × 2.6 cm |
| Weight | Approximately 0.3 kg |
