Overview
Specification
| Parameter | Specification |
| Input type | Current (2,3,or 4 wire devices) |
| Input Channels | 32 Maximum per module (with or without open wire detect) |
| A/D Converter Resolution | 16 bit |
| Input Range | 0-20 mA or 4-20 mA |
| Normal Mode Rejection Ratio | 18 dB at 50 Hz,20 dB at 60 Hz |
| Input Filter Response | Single pole,-3dB @6Hz |
| Crosstalk,dc to 60 Hz(channel-to-channel) | 60 dB |
| Input Impedance | 250Ω |
| Input Voltage Range(any input referenced to common,no damage) | +33 VDC to-1 VDC(1) |
| Input Scan Rate | 10 ms |
| Hardware accuracy | 0.1%of full-scale(23.5±2℃) 0.175%of full-scale(0 to+70℃) 0.25%of full-scale(-40 to+70℃) |
| Short Circuit Current Limit | 25 mA |
| Note 1:Return teminal is connected directly to Common(Ground) | |
Manual/Datasheet PDF

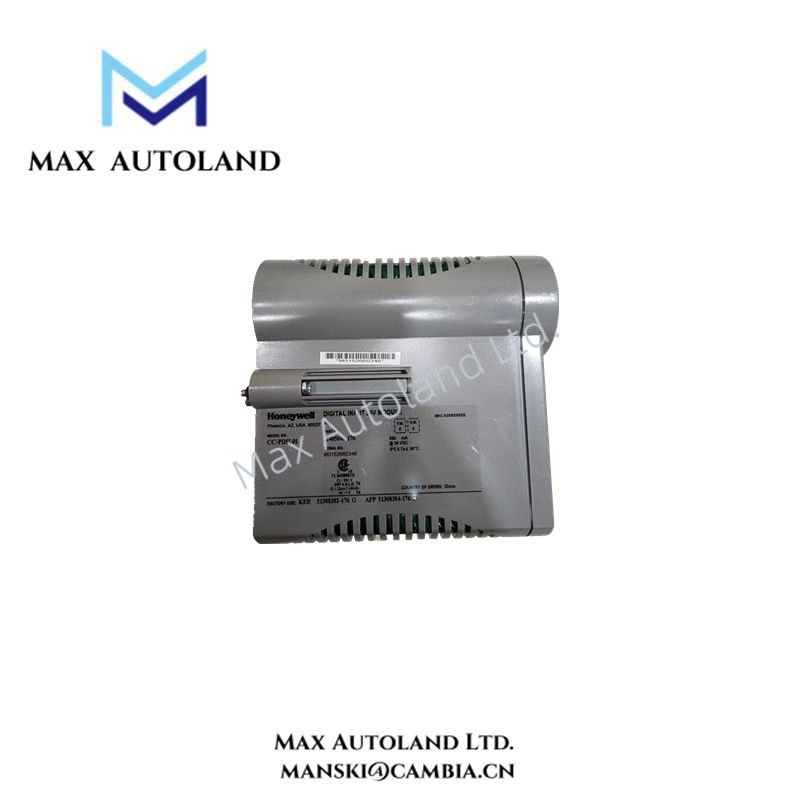

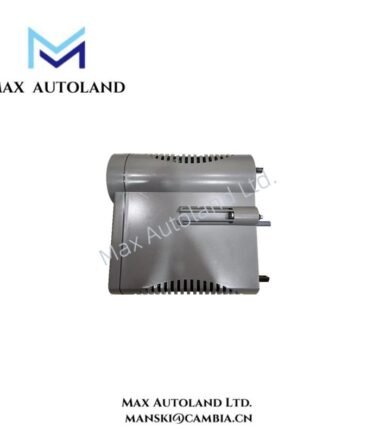

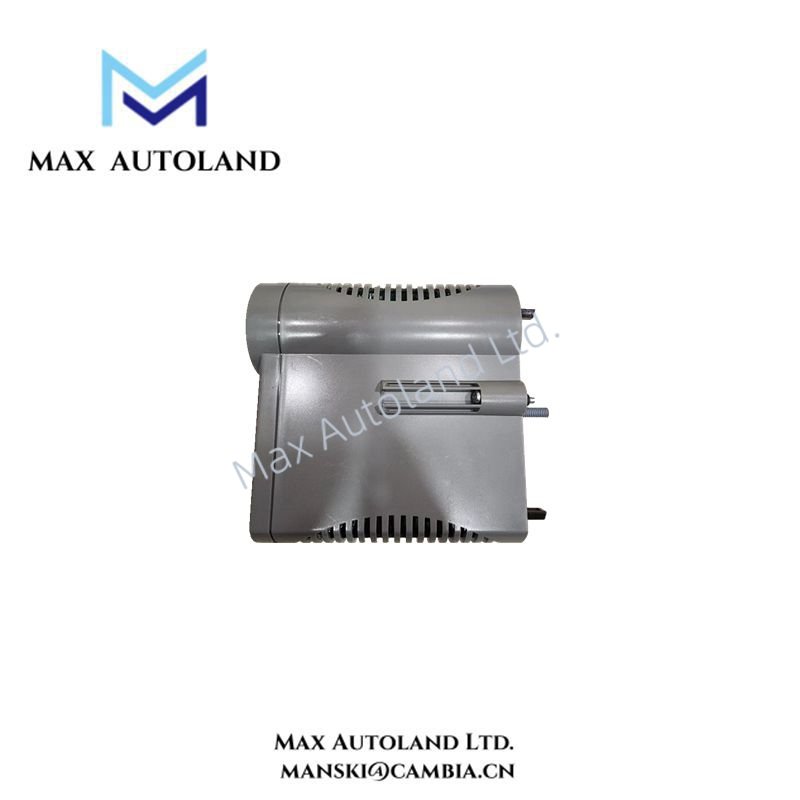

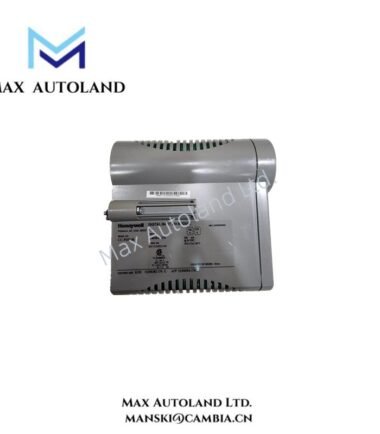

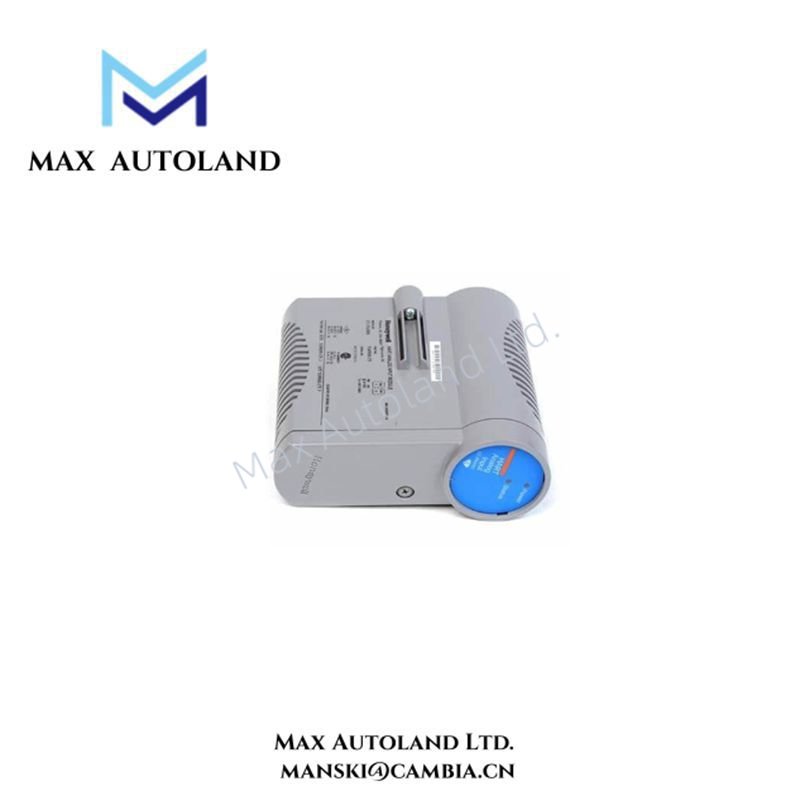

CC-PUIO31 51454220-176 Honeywell C300 Universal Input Module datasheet
