Overview

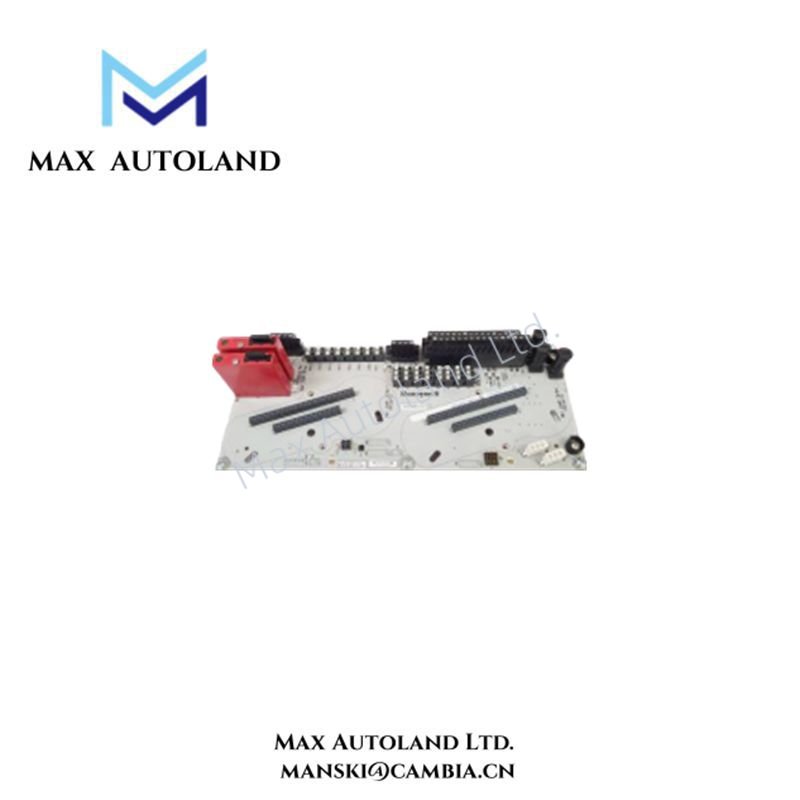

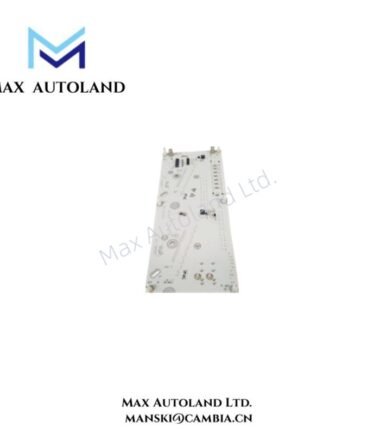

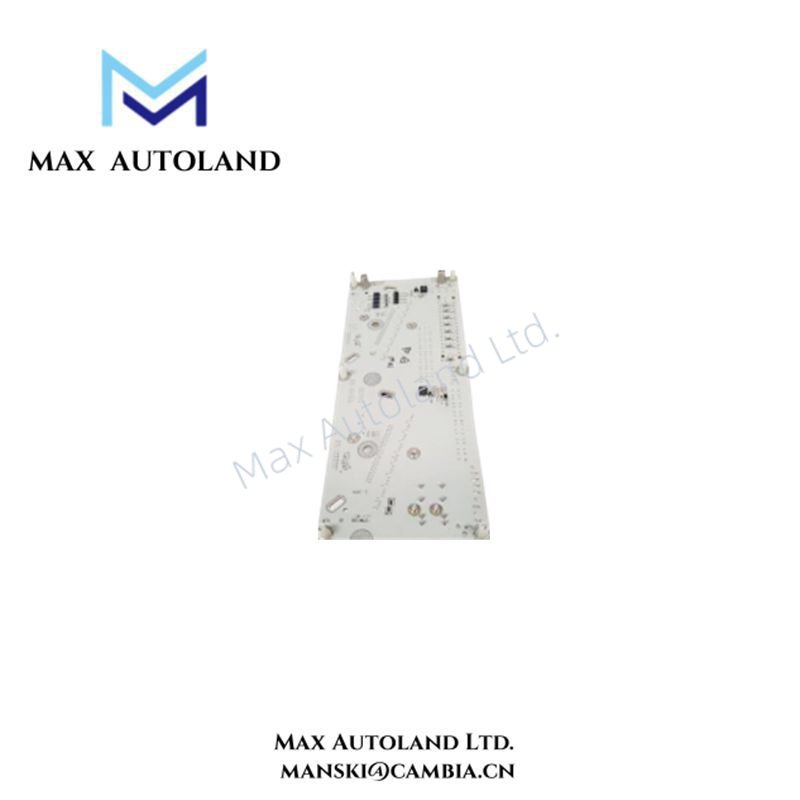

The CC-TPIX11 is a redundant pulse input module from Honeywell’s Experion Series C I/O range, and it is specifically designed to handle signals from flow meters, gas meters, or turbines with exceptional precision. Moreover, it supports both single and dual pulse configurations, ensuring uninterrupted operation through its redundant channels.
In addition, this Pulse Input Module (PIM) provides the Experion C300 controller with reliable monitoring of various pulse input field values. It actively processes signals from pulse-generating devices, calculates the rate, and continuously updates the accumulated total. Furthermore, the PI module integrates a fast cutoff capability, which stops dosing operations as soon as the threshold has been reached. Because of its high accuracy and repeatable measurement performance, the CC-TPIX11 remains highly suitable for metering and custody transfer applications.
Specification
| Feature | Specification |
|---|---|
| Model | CC-TPIX11 |
| Manufacturer | Honeywell |
| Series | Experion Series C I/O |
| Module Type | Pulse Input IOTA (Redundant, 12″) |
| Channels | 2 redundant inputs, supports single or dual pulse per channel |
| Input Type | High-impedance, differential voltage, optically isolated (~1000 VDC) |
| Frequency Range | 0–100 kHz (single); 0–10 kHz (dual) |
| Accuracy | ±0.001 % of reading (0.5 Hz–100 kHz) |
| Input Voltage Range | 0–35 VDC |
| Trip Points | High: 8.4 V / 7.7 V; Low: 2.8 V / 2.0 V |
| Input Edge Selection | Rising or falling edge (configurable) |
| Input Impedance | >70 kΩ |
| Functions | Frequency, accumulated total, pulse widths, period |
| Excitation Power | Internal 24 V or external 5–30 VDC |
| Min Pulse Width | 3 μs (off), 20 μs (on) |
| Fast Cutoff (ch 7/8) | Opto-isolated relay (1500 Vrms) with 2.5 A fuse, ≤1 ms latency |
| Output Type | Dry contact, 3 A max |
| Output Voltage/Current | 24 VDC / 0.1 A max |
| Power | 24 VDC, 200 mA max |
| Operating Temp | –40 ℃ to +70 ℃ |
| Storage Temp | –40 ℃ to +85 ℃ |
| Humidity | Up to 95 % (non-condensing) |
| Shock & Vibration | 5 g shock / 0.05 g RMS (10–500 Hz) |
| Compliance | EMC: EN 61000-6-2 & -6-3 |
| Dimensions | 12″ (length) × ~3.9″ × ~3.4″ |
| Weight | ~1.0 kg |
Manual/Datasheet PDF
CC-TPIX11 Honeywell C300 IOTA Model Redundant 12” datasheet
