Overview

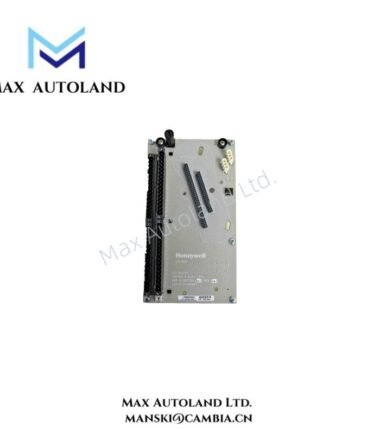

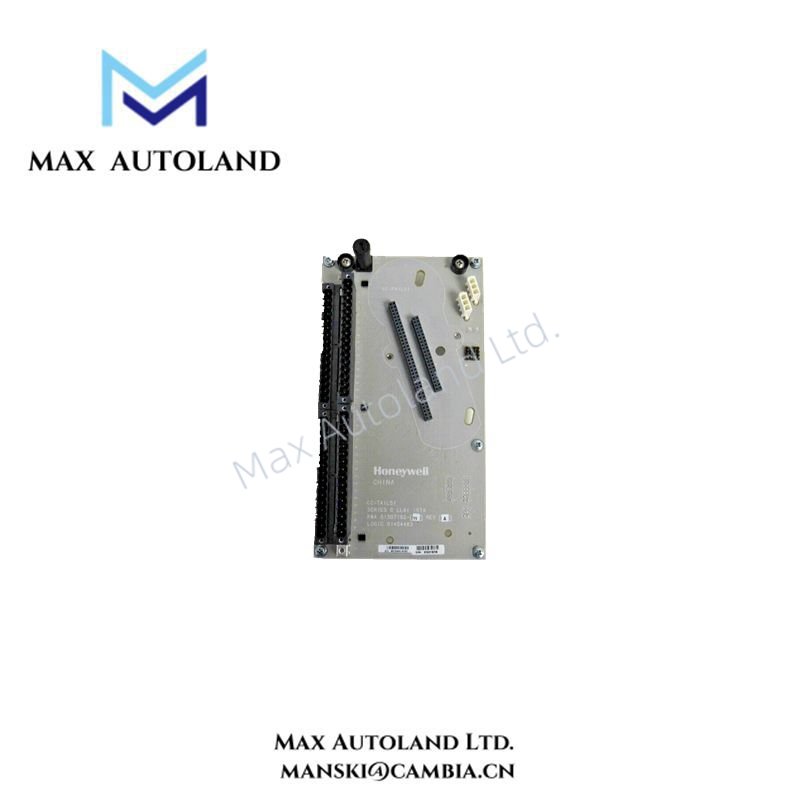

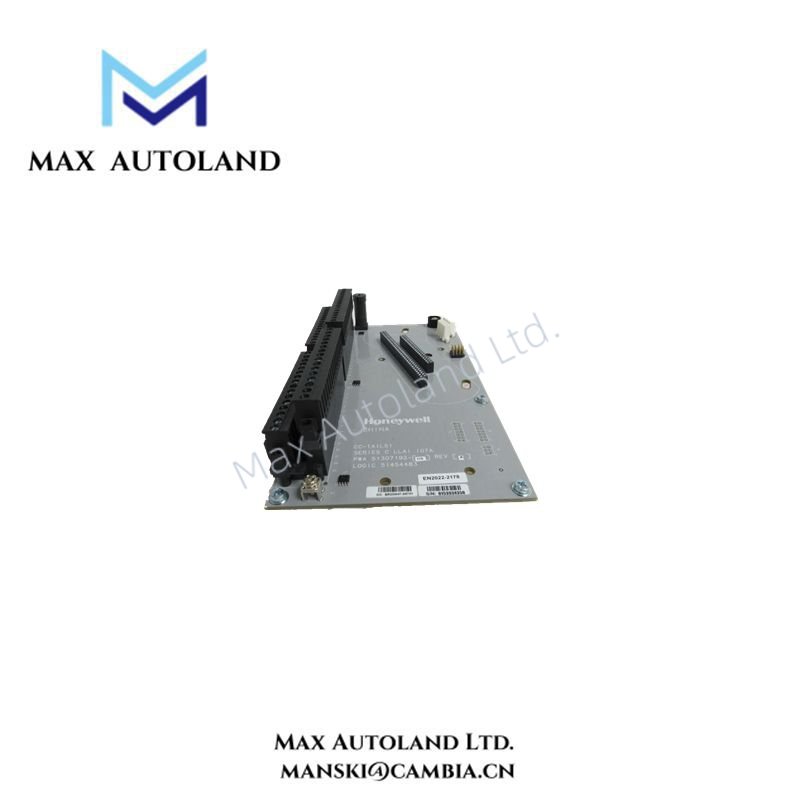

The Honeywell CC-TAIL51 functions as a Low-Level Analog Input (LLAI) Module for the Experion PKS Series-C I/O system. This non-redundant module delivers 16 channels, each configurable for thermocouple (TC) or Resistance Temperature Detector (RTD) inputs, offering flexibility for precise temperature measurements. Its compact 9-inch form factor integrates smoothly into existing control systems.
Each IOTA supports 32 input/output channels for CC-TUIO31/CC-TUIO41 modules or 16 channels for CC-TAIL51. You can install up to three UIO-2 IOTAs or eight LLAI IOTAs in a UPC, providing up to 96 UIO-2 points or 128 LLAI points. Using a redundant IOTA and additional UIO IOMs increases system availability and simplifies future upgrades.
Specification
| Feature | Specification |
|---|---|
| Input Channels | 16 (configurable per channel) |
| Input Types | Thermocouple (TC) or RTD |
| Input Impedance (TC) | 1 MΩ at DC |
| Nominal Input Range (TC) | -20 to +100 mV |
| Nominal Input Range (RTD) | -1 to +2 V at 100 mA |
| Scan Rate | 1 second |
| Channel Isolation | Channel-to-channel and channel-to-system |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 229 mm (L) x 90 mm (W) x 25 mm (H) |
| Weight | 570 g |
| Form Factor | 9-inch IOTA |
| Redundancy | Non-redundant |
Manual/Datasheet PDF
CC-TAIL51 Honeywell C300 LLAI IOTA Non-Redundant 9” datasheet
