Overview

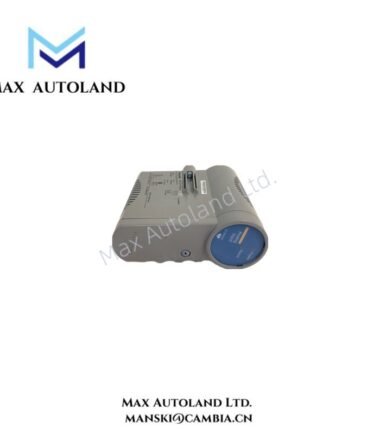

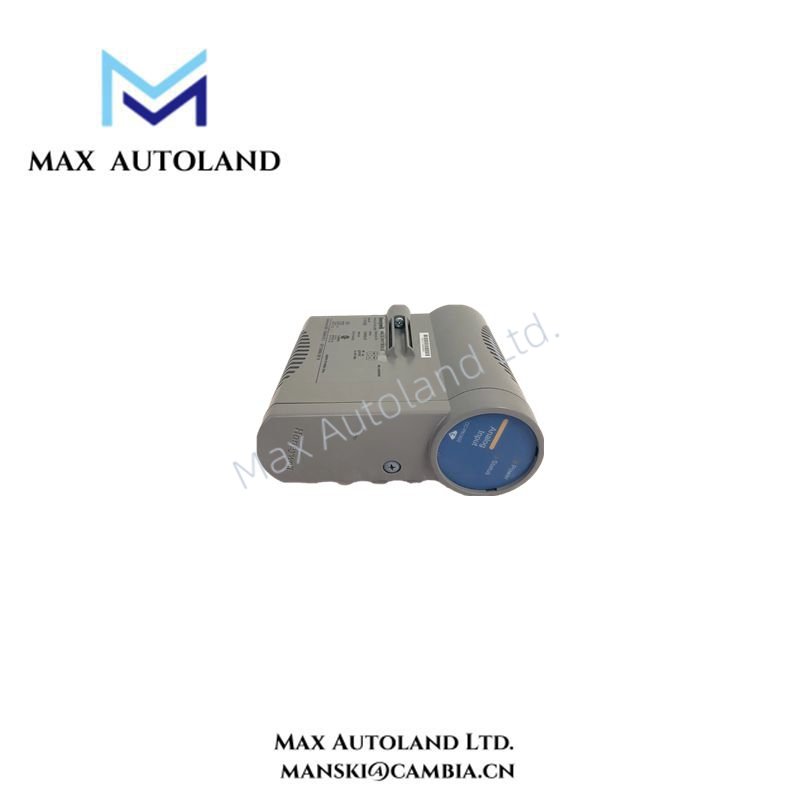

Honeywell engineers built the CC-PAIX02 Analog Input Module to process high-level current and voltage signals from transmitters and sensing devices. Furthermore, the module performs fast loop scanning and includes optional redundancy for reliable operation.
The CC-PAIH01 allows voltage inputs on channels 13–16. Meanwhile, the CC-PAIH02 accepts voltage inputs on channels 1–16 when paired with the CC-TAIDx1 IOTA. Each channel connects a 250-Ohm load resistor to the input terminal through a wire jumper on the IOTA. Users should cut this jumper on channels that use voltage transmitters. Additionally, for channels 13–16, the lowside input normally connects to system common via a wire jumper on the IOTA.
Specification
| Parameter | Specification |
|---|---|
| Input Type | Voltage, Current (2-wire or self-powered transmitters) |
| Input Channels | 1–16 (12 single-ended, 4 differential) |
| Input Impedance | >10 MΩ (voltage inputs, powered) |
| Common Mode Rejection Ratio | 70 dB (dc to 60 Hz, 500 Ω source imbalance) |
| Common Mode Voltage | -6 to +5 V peak (dc to 60 Hz) |
| Normal Mode Rejection Ratio | 19 dB at 60 Hz |
| Normal Mode Filter | Single-pole RC, -3 dB @ 6.5 Hz |
| Maximum Normal Mode Input | ±30 V differential (no damage) |
| Crosstalk | -60 dB (dc to 60 Hz, channel-to-channel) |
| Transmitter Field Power | Individually protected current limiting circuits, Class 1 Div 2 non-incendive |
| Hardware Accuracy | ±0.075% full-scale @ 23.5°C, ±0.15% full-scale @ 0–60°C |
| A/D Converter | 16-bit resolution |
| Input Scan Rate | 50 ms per channel |
