Overview
Designed for robustness, the module combines precision with rugged construction to perform reliably in congested industrial control racks. It suits applications where multiple analog outputs demand synchronized timing and high accuracy.
Specification
| Category | Details |
|---|---|
| Range of Product | Modicon Quantum Automation Platform |
| Product Type | Analogue Output Module |

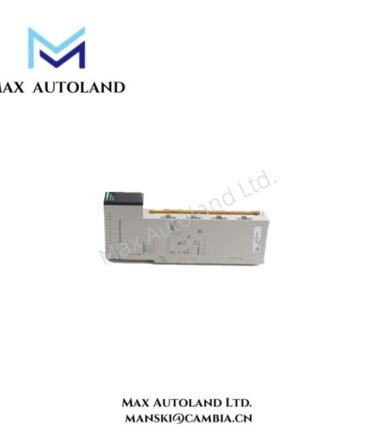

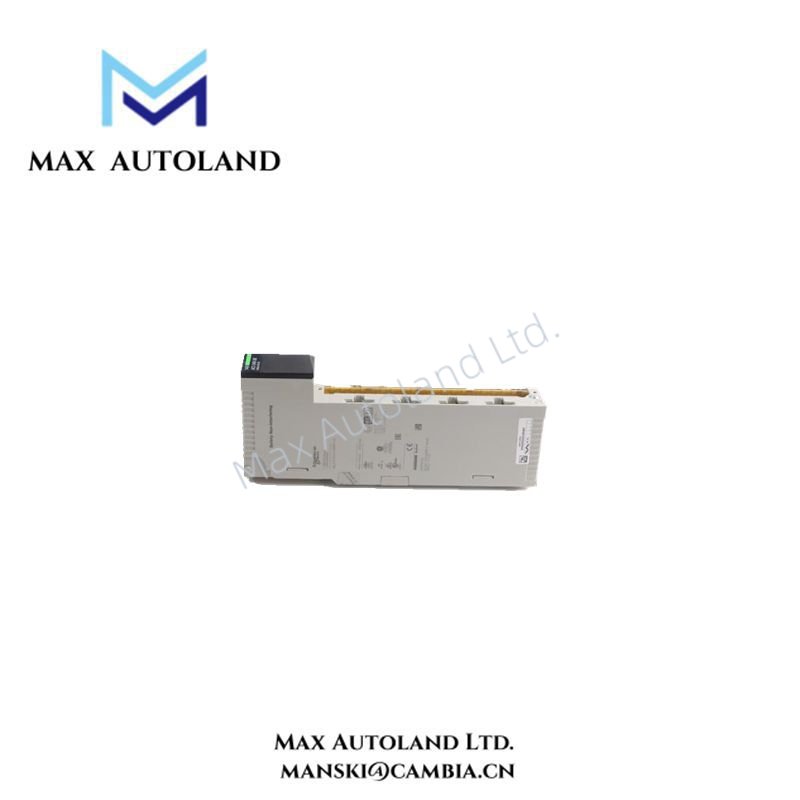

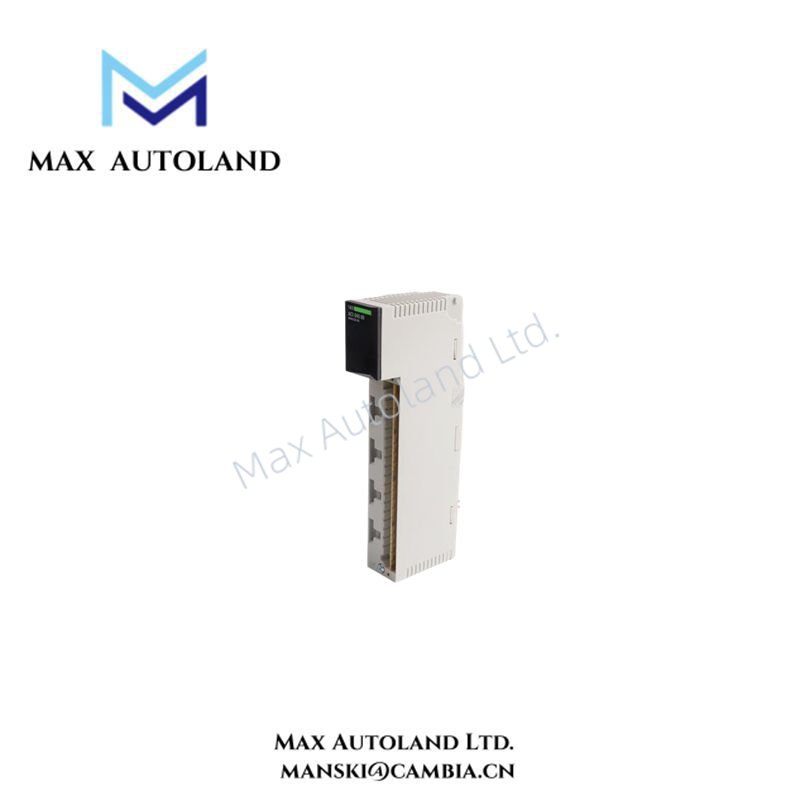

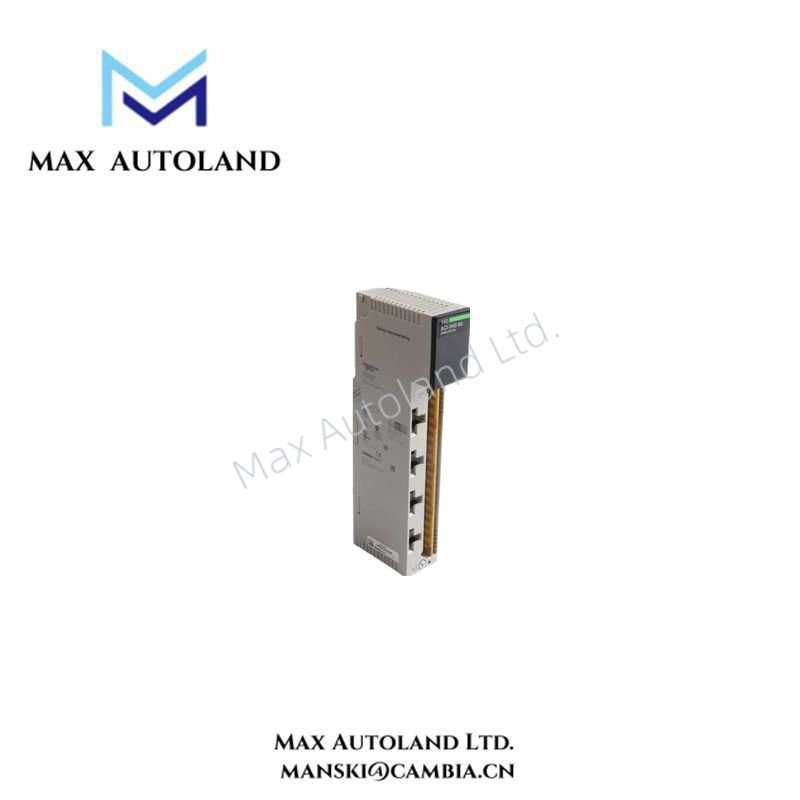

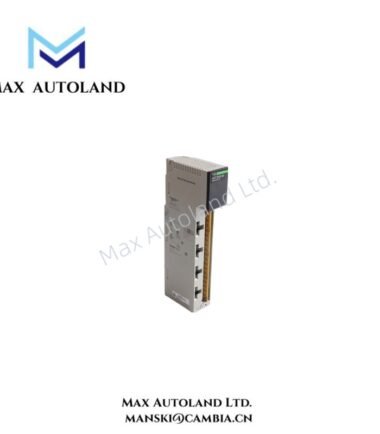

| Model | 140ACO13000 |
| Number of Analogue Outputs | 8 |
| Addressing Requirement | 8 Output Words |
| Loop Voltage | 6–30 V DC |
| Maximum Voltage Drop | < 30 V at 25 mA |
| Analogue Output Ranges | 0–20 mA → 0–20000 counts0–25 mA → 0–25000 counts4–20 mA → 0–16000 counts4–20 mA → 0–4095 counts |
| Absolute Accuracy Error | ±0.2% of Full Scale at 25 °C |
| Linearity Error | ±12 µA (4–20 mA, 0–4095 counts)±4 µA (0–20 mA, 0–20000 counts)±4 µA (0–25 mA, 0–25000 counts)±4 µA (4–20 mA, 0–16000 counts) |
| Temperature Drift (Accuracy Drift) | 0.004% FS/°C Typical0.007% FS/°C Maximum |
| Isolation | 1780 V AC between Channels and Bus (1 minute) |
| Update Time | 5 ms |
| Setting Time | 3.2 ms to ±0.1% Final Value1.6 ms to 5% Final Value |
| Fault Type Detection | Open Circuit (4–20 mA) |
| Bus Current Requirement | 550 mA |
| Maximum Power Dissipation | 5 W |
| External Power Requirement | 6–30 V |
| Marking | CE |
| Local Signalling LEDs | 1 Green – Bus Communication Active1 Red – External Fault8 Green – Channel Active8 Red – Channel Fault |
| Module Format | Standard |
| Net Weight | 0.3 kg |
FAQ
Yes, we supply 100% original Schneider Electric modules, factory-sealed and tested.
Q: What’s the typical shipping time?
We ship within 3–14 days, depending on order size and stock availability.
Q: What output ranges does it support?
It supports 0–20 mA, 0–25 mA, 4–20 mA, and scaled count ranges (e.g. 0–4095, 0–16000).
Q: What is the bus current requirement?
It requires 550 mA on the Quantum bus.
Q: Can I integrate it into existing Modicon Quantum racks?
Yes, it fits standard Quantum I/O racks and works with Quantum CPUs.
Q: What if there’s a quality issue?
We support 30-day returns for verified quality defects.
