Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

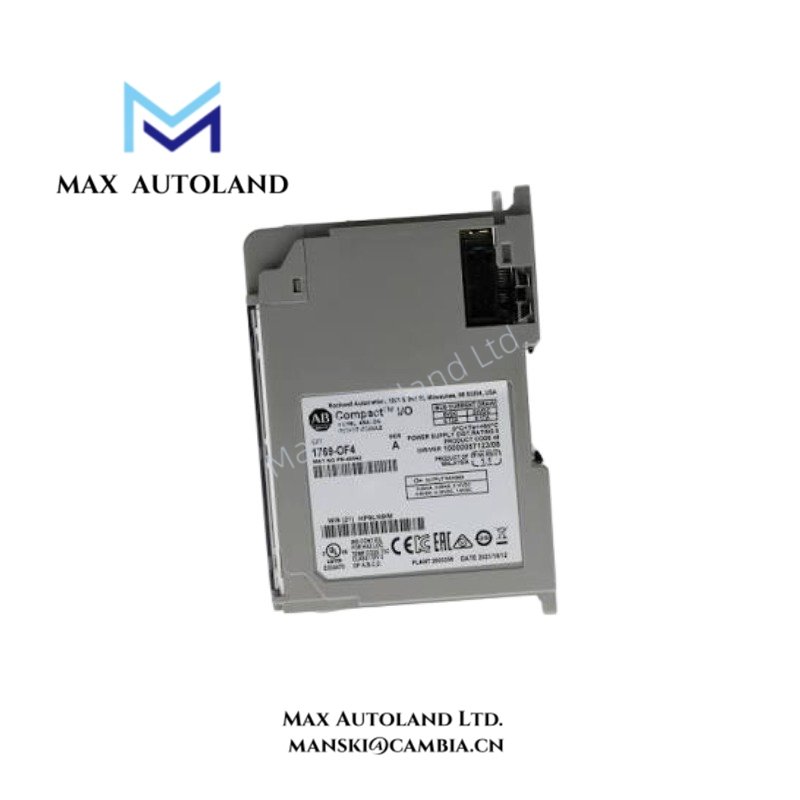

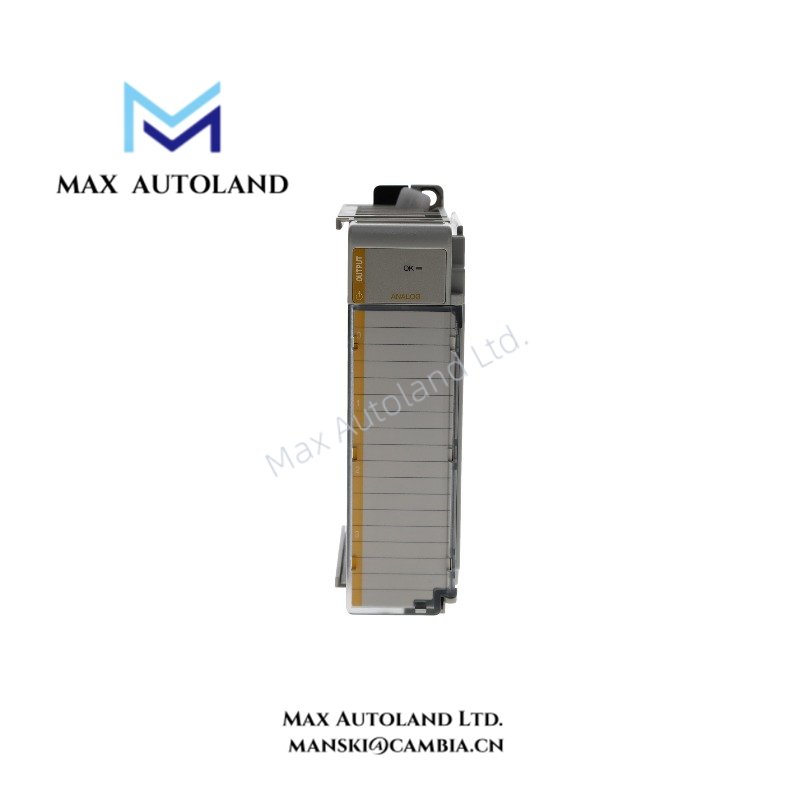

| Model | 1769-OF4 |
| Brand | Allen Bradley |
| Product Type | Analog Output Module |
| Product Line | CompactLogix |
| UPC | 612598840786 |
| Number of Outputs | 4 |
| Output Configuration | Single-ended |
| Voltage Output Ranges | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V |
| Current Output Ranges | 0 to 20 mA, 4 to 20 mA |
| Current Draw at 5.1 V | 120 mA |
| Current Draw at 24 V | 170 mA |
| Maximum Heat Dissipation | 2.86 W |
| Open-Circuit Protection | Supported |
| Short-Circuit Current | Supported |
| Slot Width | 1 slot |
| Mounting Options | DIN rail or panel mounting |
| Weight | 0.56 lb (0.26 kg) |
Analog Output Function
The 1769-OF4 converts digital commands from the controller into analog electrical signals. Voltage outputs serve devices that require voltage references, while current outputs support compatible current-loop control inputs. Therefore, the selected output range must match the receiving device’s electrical requirements.
Output Channels and Protection
The module provides four single-ended analog output channels. Each channel must be configured and wired according to the intended signal type and the connected equipment. The module also lists open-circuit protection and short-circuit current support. Check the applicable technical documentation for the specific protection behavior and operating limits before commissioning.
Power and Mounting Requirements
The module draws 120 mA from the 5.1 V supply and 170 mA from the 24 V supply. Its maximum heat dissipation is 2.86 W, which should be considered when checking system power capacity and enclosure thermal conditions. The module supports DIN rail or panel mounting and occupies one slot in the applicable installation.
Frequently Asked Questions
Q: Which analog output ranges does the 1769-OF4 support?
A: The module supports voltage ranges of -10 to 10 V, 0 to 10 V, 0 to 5 V, and 1 to 5 V. Its current output ranges are 0 to 20 mA and 4 to 20 mA. Select the range that matches the receiving device.
Q: How many output channels are available?
A: The 1769-OF4 provides four single-ended analog output channels. Verify the signal type, range, and wiring requirements for each connected device.
Q: What should be checked before replacing an existing module?
A: Confirm the complete part number, controller platform, available power capacity, slot requirements, output ranges, and wiring configuration. Check hardware and software compatibility before installing the replacement.
