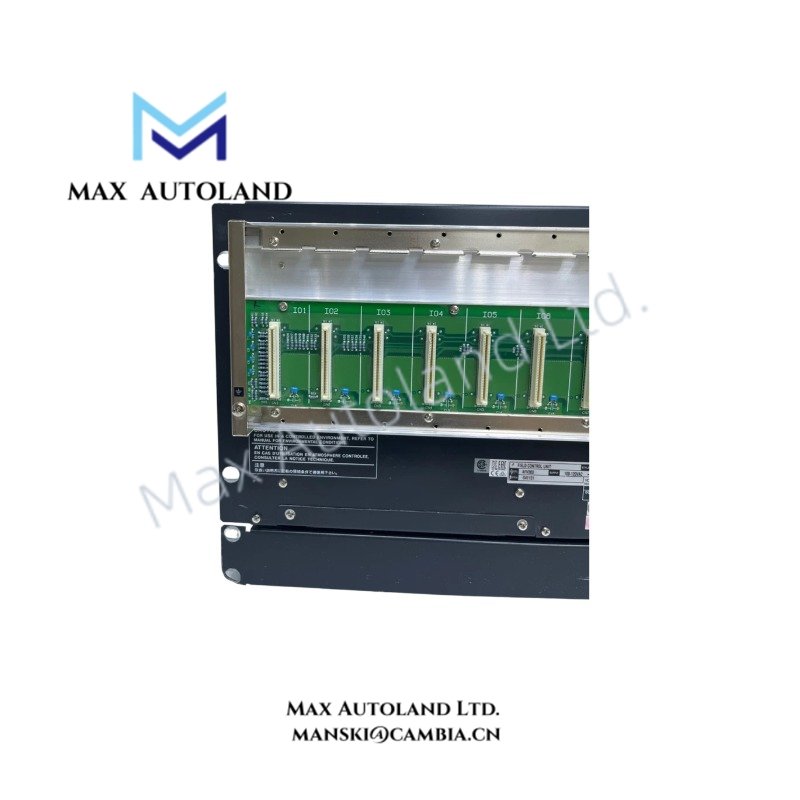

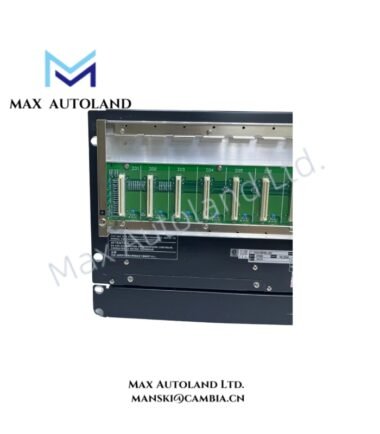

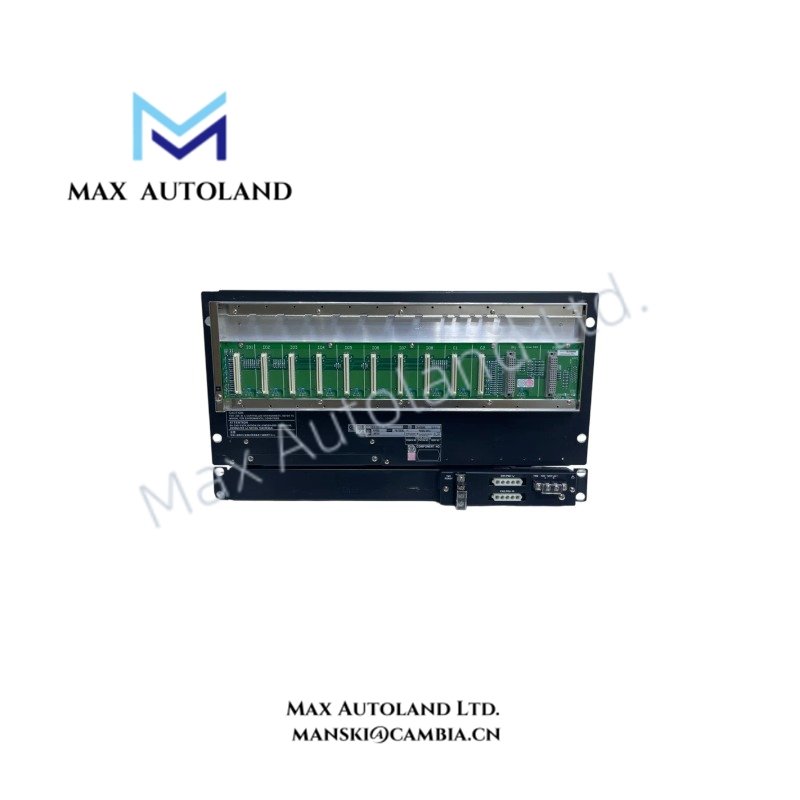

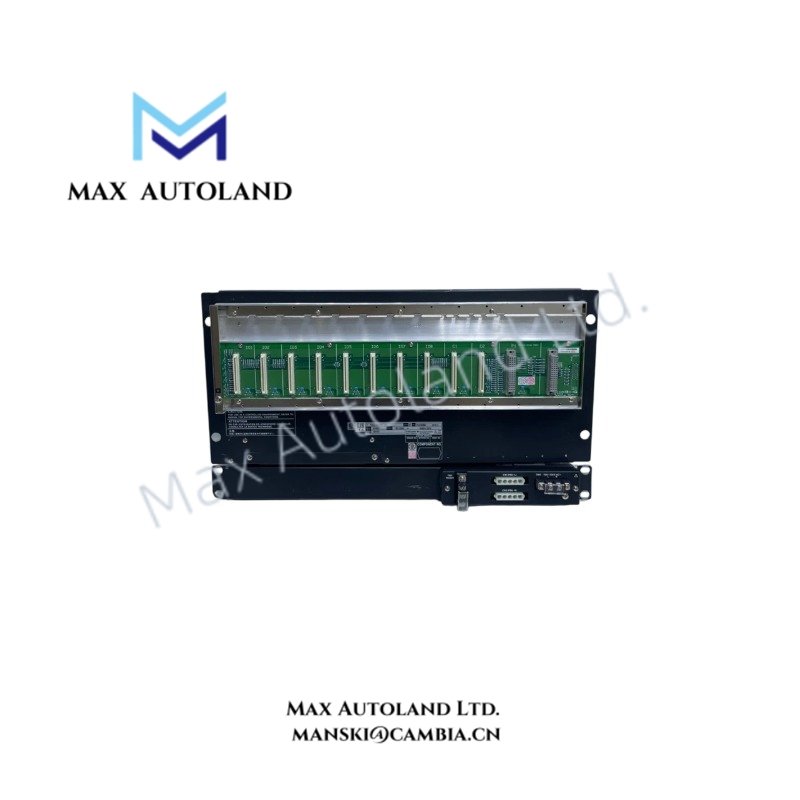

AFV30S-S31262 Yokogawa Field Control Unit

Hardware Specifications

DCS Communication and Process Interface Characteristics

The Yokogawa AFV30S-S31262 performs control calculations, sequence execution, and data communication management within the CENTUM VP architecture. It exchanges process data between field I/O modules and the Vnet/IP network through the CP461 processor module.

Furthermore, the unit supports dual-redundant Vnet/IP network interfaces for continuous communication path monitoring. The controller processes field signals from FIO modules and transfers control information through the industrial Ethernet-based control network.

For process instrumentation integration, Yokogawa CENTUM VP systems support field communication methods including 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA through compatible I/O modules. These interfaces provide channel signal processing, instrument status handling, and diagnostic data acquisition at the control layer.

The AFV30S-S31262 also uses ISA Standard S71.04 Class G3 conformal coating on printed circuit assemblies. Therefore, the unit maintains circuit board protection against corrosive industrial atmospheric conditions.

Frequently Asked Questions

Q: Does the AFV30S-S31262 support redundant Vnet/IP communication?
A: Yes. The AFV30S-S31262 configuration includes dual-redundant Vnet/IP network interfaces for control communication availability.

Q: Which processor module is installed in the AFV30S-S31262?
A: The unit is configured with the CP461 processor module for CENTUM VP field control execution.

Q: Can the AFV30S-S31262 operate with multiple FIO modules?
A: Yes. The rack configuration supports up to 8 local FIO modules connected to the Field Control Unit.

Field Installation Guidelines

• Install the AFV30S-S31262 in a compatible 19-inch rack enclosure with proper mechanical support.
• Verify the 220-240 VAC power supply wiring before energizing the unit.
• Connect Vnet/IP communication cables using industrial Ethernet installation practices and maintain separation from high-voltage power cables.
• Use appropriate grounding methods for rack assemblies and cable shields to reduce electrical interference.
• Confirm FIO module connections and terminal assignments before system startup.
• Maintain sufficient airflow around the rack installation area to prevent thermal accumulation.
• Check conformal coating condition and environmental requirements before installation in corrosive areas.
