Woodward 8273-128 Digital Load Sharing and Speed Control Module

Overview

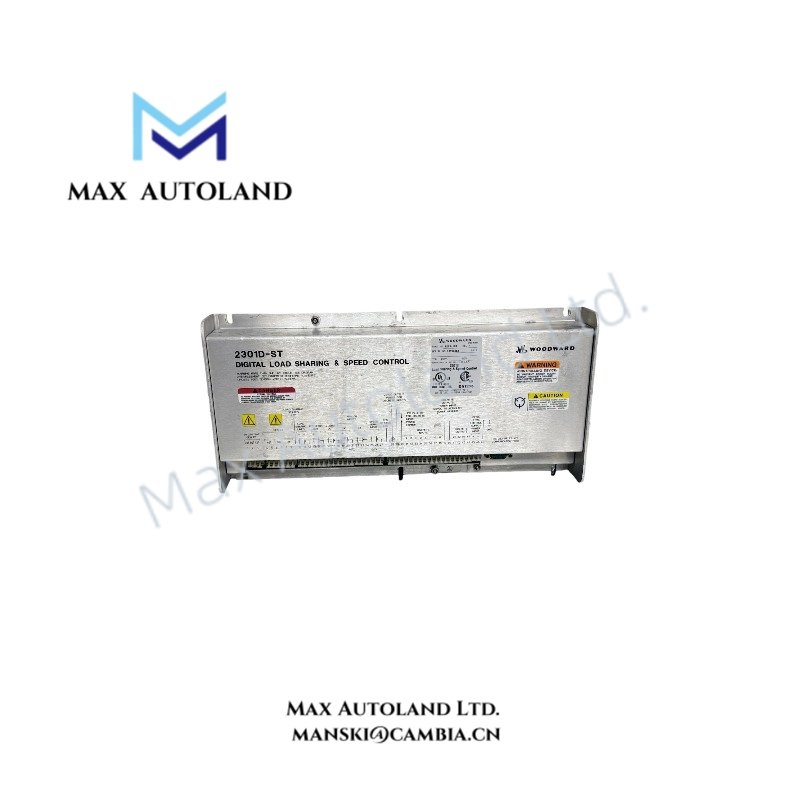

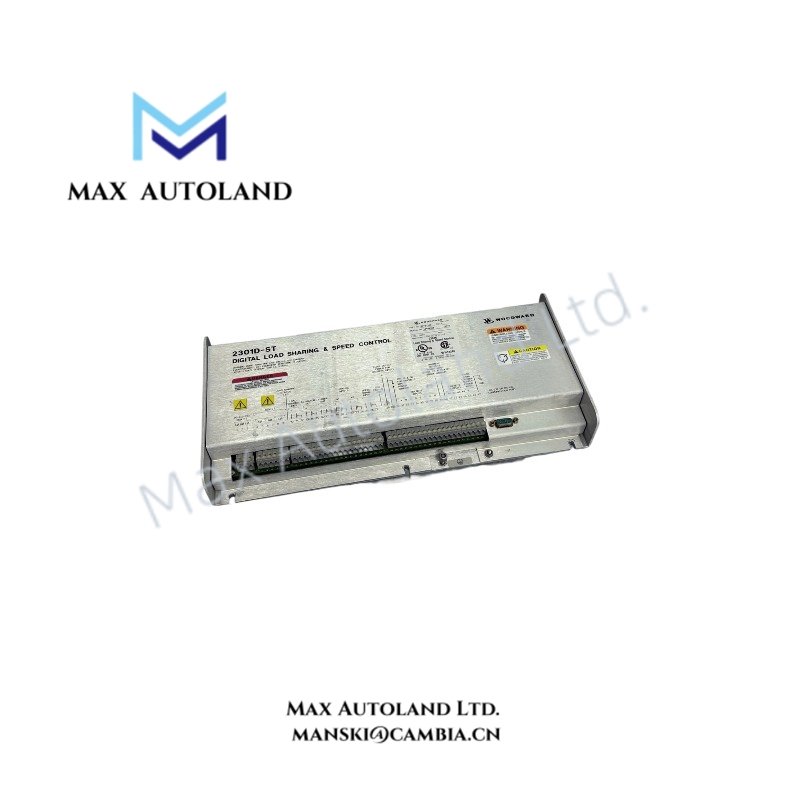

Woodward 2301D-ST Digital Load Sharing and Speed Control Module

The Woodward 2301D-ST (8273-128), also cataloged as the 2301D-ST Digital Load Sharing and Speed Control Module, operates as a dedicated hardware component for generator speed regulation, actuator control, and load management within parallel generator control systems.

Hardware Specifications

Actuator Loop Feedback Response and Governor Control

The Woodward 2301D-ST applies digital governor algorithms to process speed feedback signals and regulate actuator commands. The module receives magnetic pickup speed input signals, calculates engine speed deviation, and adjusts actuator output currents to maintain the configured operating point.

Furthermore, the unit supports isochronous and droop control modes for generator applications. The actuator loop feedback response allows controlled fuel valve or steam valve positioning through proportional output adjustment.

The module provides load sharing functions through analog load sharing connections or compatible digital communication methods. Therefore, multiple generator sets can exchange load information and maintain proportional power distribution during parallel operation.

The control architecture supports V/Hz related speed regulation requirements and actuator response monitoring. In addition, the module provides fault detection functions for speed sensor loss, overspeed conditions, and control parameter errors.

Frequently Asked Questions

Q: Does the Woodward 2301D-ST support hot-swappable installation?
A: No. The 2301D-ST is designed for fixed panel installation. Remove power before disconnecting field wiring or replacing the module.

Q: What type of speed signal does the module accept?
A: The module accepts magnetic pickup (MPU) speed sensor input signals for engine or turbine shaft speed measurement.

Q: Which actuator signals are supported by the output circuit?
A: The module supports configurable actuator outputs including 0-200 mA and 4-20 mA current control signals.

Field Installation Guidelines

Install the Woodward 2301D-ST inside a suitable control cabinet with adequate protection against dust, moisture, and mechanical vibration.

Use shielded cables for speed sensor and actuator signal wiring. Connect cable shields according to the grounding practice defined by the generator control system design.

Keep MPU signal wiring separated from high-current power conductors to reduce electromagnetic interference. Verify input polarity, actuator output range, and load sharing connections before energizing the control circuit.

Configure operating parameters through the Woodward Watch Window software interface. Confirm speed calibration, load sharing settings, and fault monitoring functions during commissioning.
