Overview

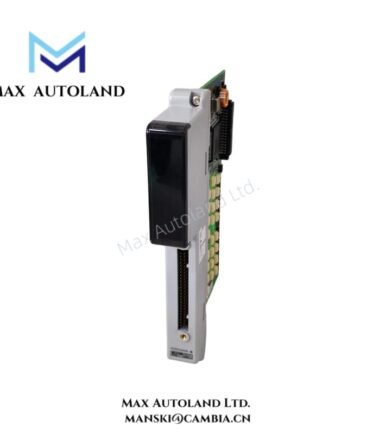

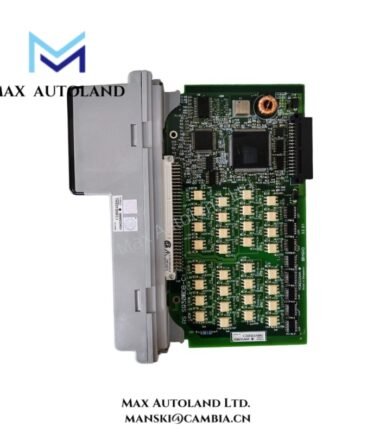

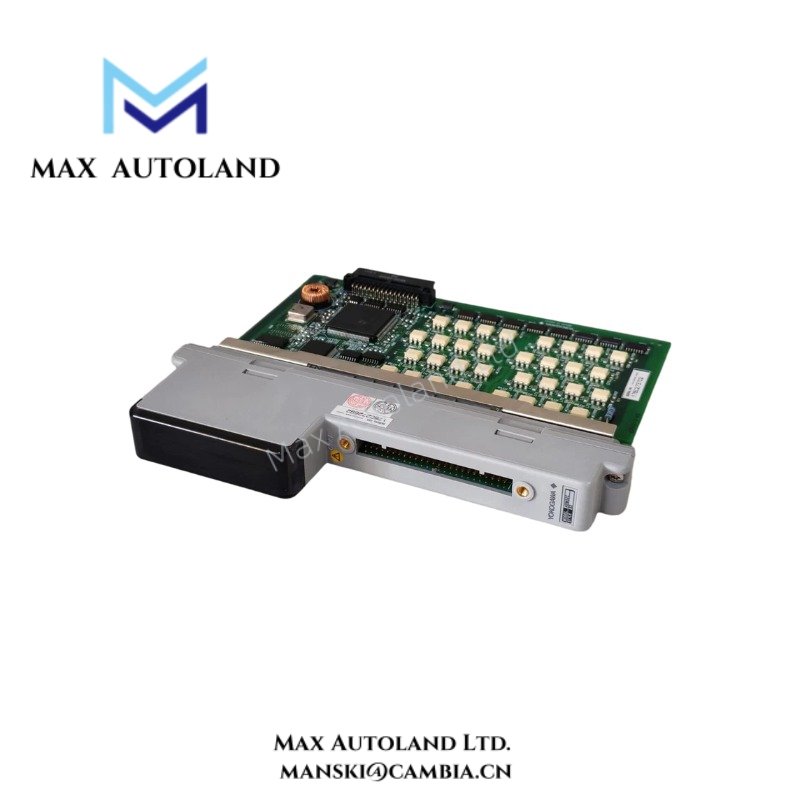

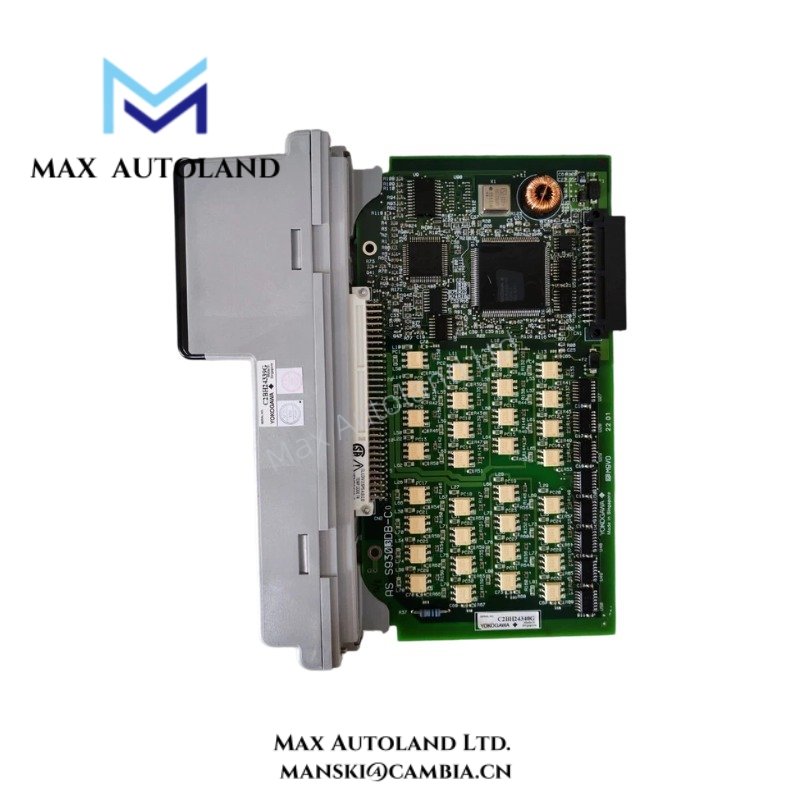

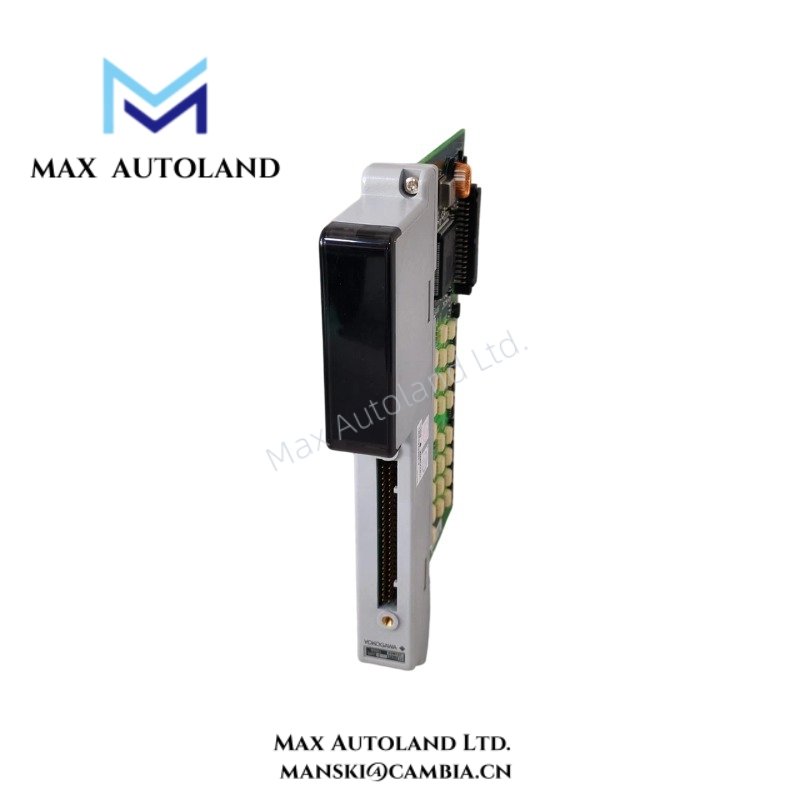

The ADM52C from Yokogawa delivers stable contact output control for industrial automation and process systems.
Moreover, this module supports precise signal switching within PLC and DCS control system environments.
Engineers select this unit for applications requiring dependable relay-based output control and long operational life.
In addition, Yokogawa integrates this module into CENTUM CS and CENTUM VP distributed control systems.
Specification
| Parameter | Detailed Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADM52C |
| Product Type | Contact Output Module |
| System Compatibility | CENTUM CS / CENTUM VP Distributed Control Systems |
| Function | Relay-based digital contact output control |
| Number of Output Channels | 16 channels |
| Output Type | Mechanical relay contact |
| Contact Configuration | Normally Open (NO) / System-dependent configuration |
| Rated Output Voltage | 24 V DC (typical industrial control level) |
| Rated Output Current | Up to 2 A per channel (resistive load, typical) |
| Contact Material | High-durability industrial relay contacts |
| Isolation Method | Galvanic isolation between channels and system |
| Dielectric Strength | Designed for industrial-level electrical isolation |
| Switching Response Time | Millisecond-level operation |
| Minimum Load | Suitable for low-level industrial control signals |
| Power Supply | 24 V DC system power |
| Power Consumption | Approximately 5 W (typical) |
| Signal Protection | Surge and transient protection integrated |
| Mounting Type | Rack-mounted module |
| Installation Location | Control cabinet or CENTUM system rack |
| Wiring Interface | Screw terminal block connection |
| Terminal Capacity | Designed for secure industrial field wiring |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Industrial standard control cabinet environment |
| Dimensions (Approx.) | 130 mm × 32 mm × 200 mm |
| Weight (Approx.) | 0.45 kg |
| Maintenance | Front-access modular replacement design |
| Application Environment | Industrial automation, process control, factory automation |
| Typical Applications | Alarm output, interlock control, actuator switching |
| Compliance | Designed according to Yokogawa industrial system standards |
FAQ
Q1: Is the product new and original?
A1: Yes, the ADM52C is 100% brand new and original from Yokogawa.
Q2: Do you have stock available?
A2: Yes, we have stock for the ADM52C, depending on order quantity requirements.
Q3: What is the delivery time?
A3: We ship within 3 days to 2 weeks depending on order size and logistics arrangements.
Q4: Which logistics services do you use?
A4: We commonly use DHL and other international carriers for fast and secure delivery.
Q5: What type of outputs does this module provide?
A5: The ADM52C provides relay contact outputs suitable for industrial switching applications.
