Overview

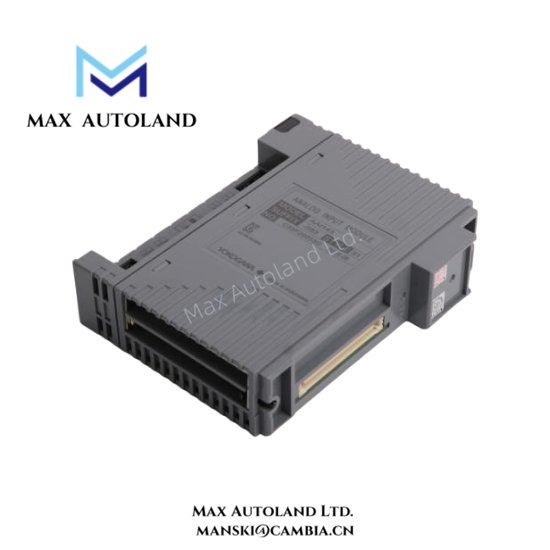

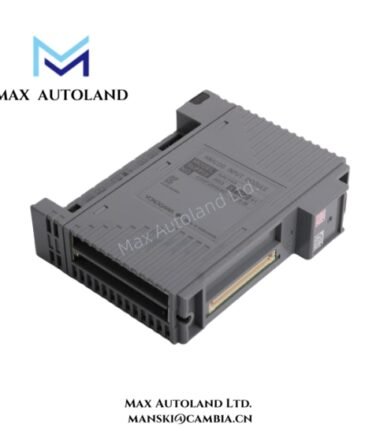

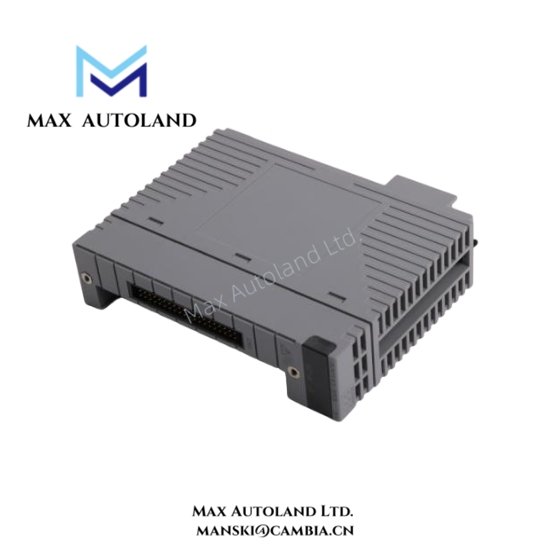

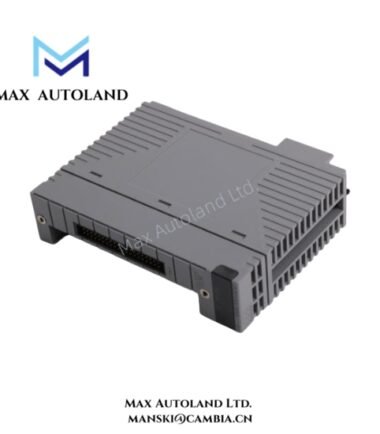

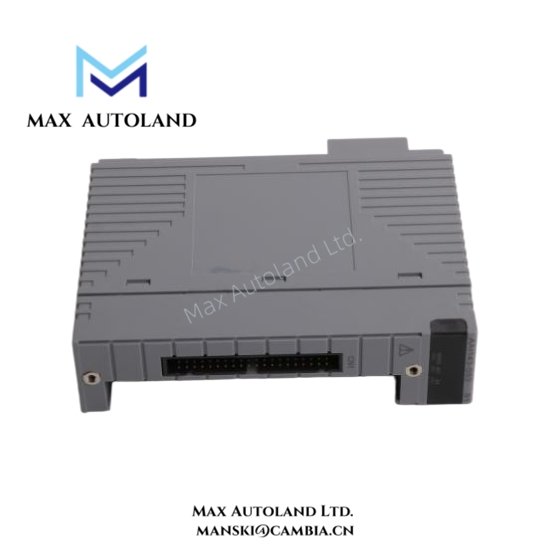

Moreover, the AAI143-S53 module from Yokogawa delivers precise analog current input acquisition for advanced industrial process automation systems.
First, engineers integrate AAI143-S53 modules into Yokogawa CENTUM distributed control systems to achieve reliable multi-channel signal monitoring.
Next, the module captures field current signals and converts them into digital values for accurate process control analysis.
In addition, Yokogawa equips AAI143-S53 with stable measurement circuitry and high-reliability industrial components for continuous plant operation.
As a result, automation engineers widely deploy AAI143-S53 modules across energy production, chemical processing, and modern manufacturing control infrastructures.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa Electric Corporation |
| Model Number | AAI143-S53 |
| Product Type | Analog Current Input Module |
| System Compatibility | Yokogawa CENTUM Distributed Control System |
| Input Channels | 16 isolated current input channels |
| Input Signal Range | 4–20 mA analog current |
| Input Resolution | 16-bit analog-to-digital conversion |
| Measurement Accuracy | ±0.1% of full scale |
| Input Impedance | Approx. 250 Ω |
| Signal Isolation | Channel-to-channel and system isolation |
| Conversion Method | High-precision analog-to-digital signal processing |
| Power Supply | Provided through CENTUM system backplane |
| Power Consumption | Approximately 5–7 W |
| Communication Interface | Backplane connector interface |
| Installation Method | Rack-mounted within Yokogawa I/O system |
| Diagnostic Functions | Built-in module self-diagnostics and signal status monitoring |
| LED Indicators | Module operation and communication status indicators |
| Dimensions | Approx. 107 mm × 32.8 mm × 130 mm |
| Weight | Approximately 0.3 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −25°C to 75°C |
| Relative Humidity | 5% to 95% non-condensing |
| Application Areas | Process automation, power plants, oil and gas, manufacturing control |
FAQ
Q1: What is the primary function of the AAI143-S53 module?
A1: The AAI143-S53 module collects 4–20 mA analog current signals from field transmitters and converts them into digital data for the Yokogawa control system.
Q2: How many input channels does the AAI143-S53 provide?
A2: The AAI143-S53 module provides 16 independent current input channels, allowing engineers to monitor multiple sensors simultaneously.
Q3: Which control systems support the AAI143-S53 module?
A3: Engineers use the AAI143-S53 module within Yokogawa CENTUM distributed control systems through the standard backplane rack interface.
Q4: Do you supply original AAI143-S53 modules?
A4: Yes, we supply brand new and original AAI143-S53 modules and maintain available stock for industrial customers.
Q5: How fast can you ship the AAI143-S53 module?
A5: We usually ship the AAI143-S53 module within 3 days to 2 weeks, depending on the order quantity and preparation schedule.
Q6: What if the AAI143-S53 module has a quality issue after delivery?
A6: If any quality problem occurs, we support returns within 30 days after delivery of the AAI143-S53 module.
