Overview

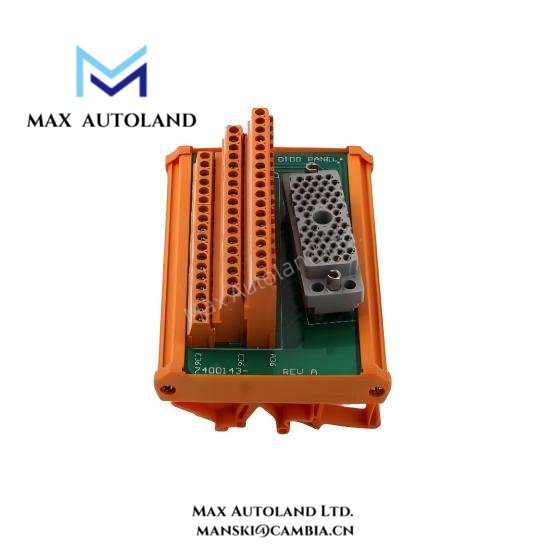

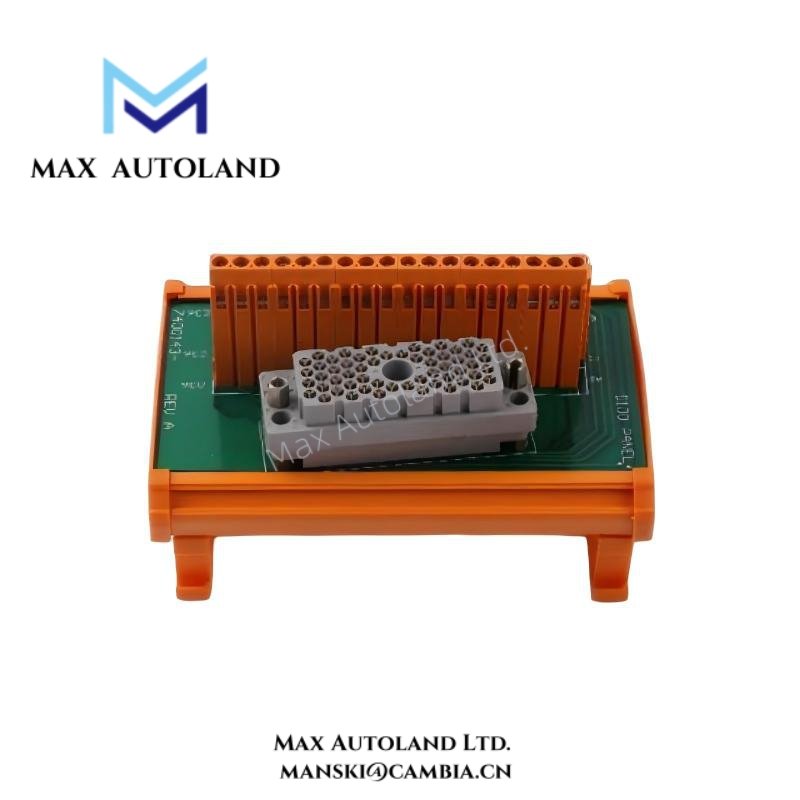

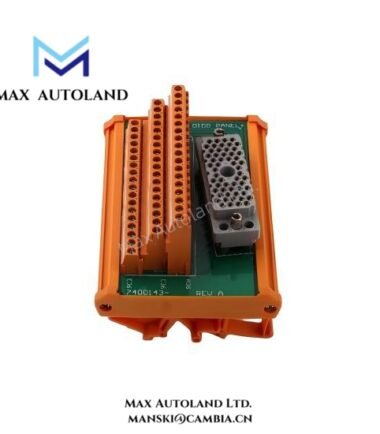

The 9853-610 analog output terminal board supports precise current signal distribution within Triconex safety instrumented systems.
Engineers deploy 9853-610 to connect analog output modules with field devices using stable industrial wiring interfaces.
Additionally, the 9853-610 panel manages current output loops that control valves, actuators, and industrial instrumentation.
The board provides eight independent output channels designed for reliable 4–20 mA analog control signals.
Furthermore, 9853-610 integrates dedicated return terminals and redundant power input connectors for improved electrical reliability.
This architecture ensures consistent analog signal transmission across critical automation and safety control installations.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Manufacturer | Triconex | Industrial safety control brand within Schneider Electric |
| Model | 9853-610 | Analog Output Terminal Board |
| Panel Type | Current Output, Basic | Designed for analog signal termination and distribution |
| Output Points | 8 analog current outputs | Supports 8 independent control loops |
| Output Signal Range | 4–20 mA | Standard industrial analog control signal |
| Input Voltage Range | 0–20 V input for 4–20 mA conversion | Supports voltage-to-current conversion |
| Nominal Power Supply | 24 VDC | Operating range 20–28 VDC |
| Quiescent Current | 20 mA typical | With Vsupply 24 V and Vin 0 V |
| Maximum Load Resistance | 750 Ω with 24 V supply | Supports long-distance analog control loops |
| Offset and Linearity | ±0.1 mA maximum | Maintains precise output accuracy across full range |
| Input Impedance | 1 MΩ differential mode | 850 kΩ common mode |
| Maximum Input Voltage | ±100 V continuous | ±200 V pulse tolerance for 0.5 seconds |
| Differential Frequency Response | –6 dB/octave from 1 kHz to 8 kHz | –12 dB/octave above 8 kHz |
| Common Mode Response | –12 dB/octave above 8 kHz | Reduces electrical interference |
| Terminal Configuration | 8 output terminals and 8 return terminals | Provides stable current loop connections |
| Power Terminals | Redundant 24 VDC power inputs | Improves system reliability |
| PCB Construction | Multi-layer industrial circuit board | Enhances signal stability and durability |
| Mounting Method | Cabinet-mounted termination panel | Compatible with Tricon system racks |
| Dimensions | Approximately 305 mm × 180 mm × 45 mm | Compact panel design |
| Weight | Approximately 1.2 kg | Durable construction for industrial installation |
| Operating Temperature | −20°C to 70°C | Suitable for harsh industrial environments |
| Humidity Range | 5% to 95% non-condensing | Maintains stable operation in humid facilities |
FAQ
Q1: Is the 9853-610 terminal board brand new and original?
Yes. The 9853-610 we provide is completely new and factory original.
Q2: Do you keep 9853-610 modules in stock?
Yes. We maintain available inventory for many Triconex products including 9853-610.
Q3: How quickly can you ship the product after placing an order?
Shipping usually occurs within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics services do you normally use for delivery?
We commonly use DHL, FedEx, and UPS international shipping services.
Q5: Which Tricon modules work with 9853-610?
The 9853-610 supports 3805E, 3805H, and 2870H analog output interface modules.
Q6: What happens if the product has quality problems?
We support returns within 30 days if customers identify verified quality issues.
