Overview

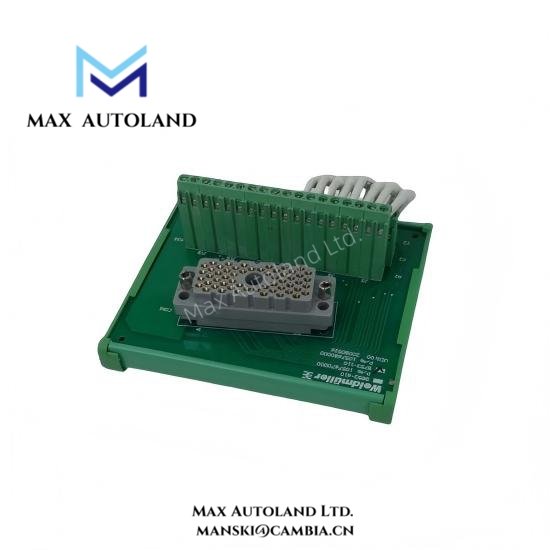

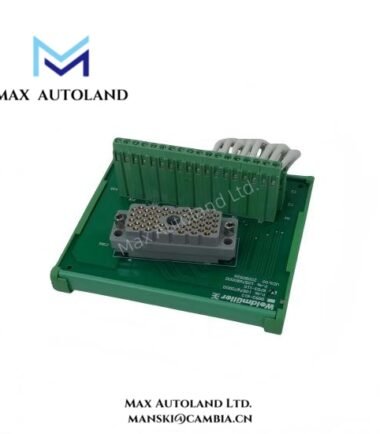

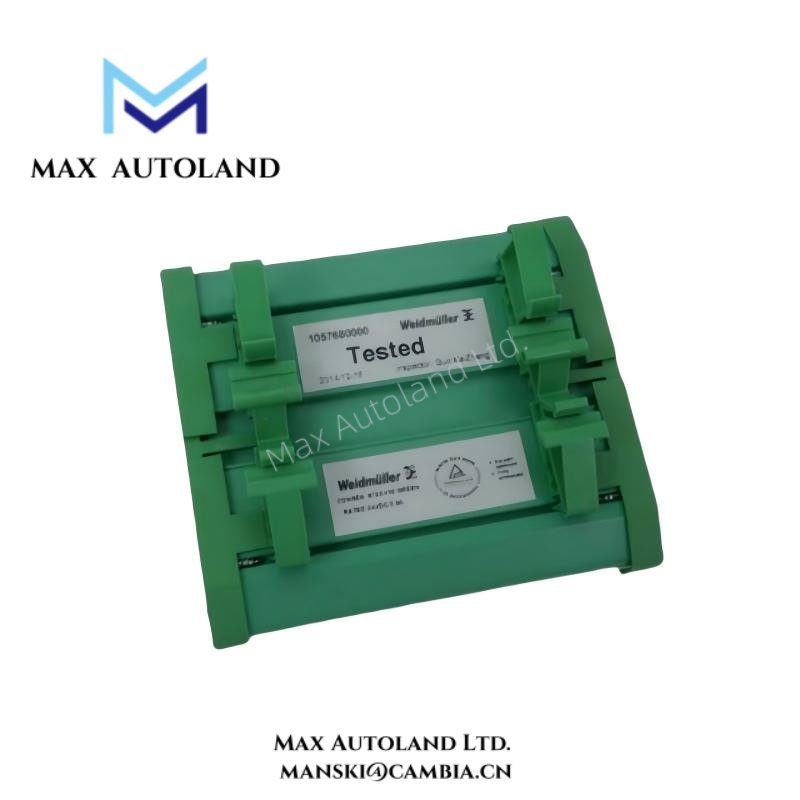

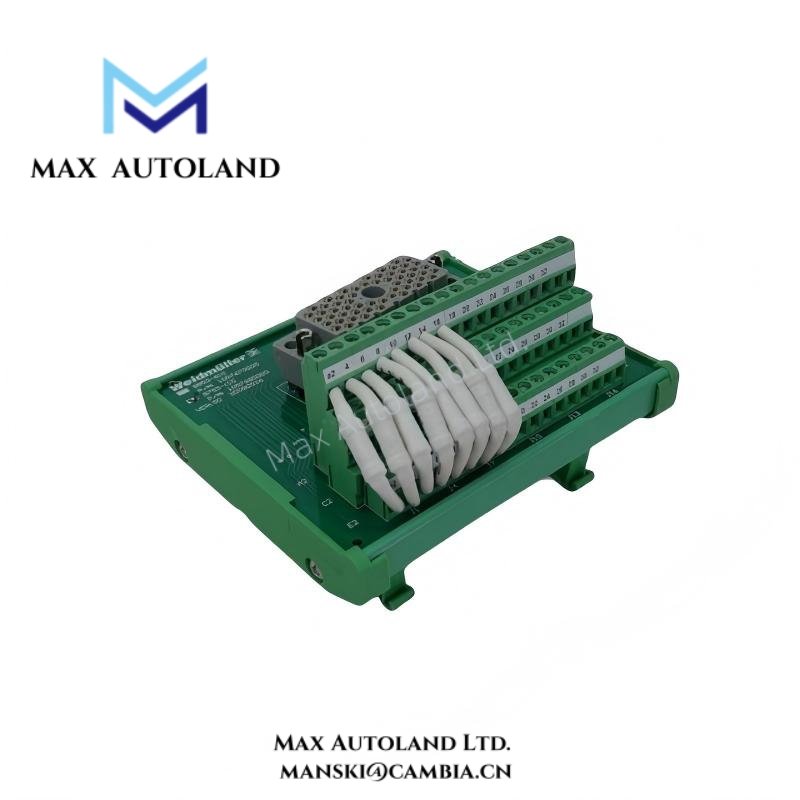

The 9753-110 termination panel provides structured signal termination for Triconex pulse input and pulse totalizer modules.
Engineers install 9753-110 within Tricon safety systems to manage high-frequency pulse signals from industrial sensors.
Additionally, 9753-110 organizes field wiring connections and simplifies integration with Tricon control modules.
The module supports pulse measurement applications including turbine speed monitoring, flow measurement, and event counting.
Furthermore, 9753-110 ensures stable signal routing through differential input terminals and industrial-grade connectors.
Its panel architecture allows reliable operation within demanding automation environments including power plants and process industries.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Manufacturer | Triconex | Industrial safety system manufacturer within Schneider Electric portfolio |
| Model | 9753-110 | Pulse Input and Pulse Totalizer Input Termination Panel |
| System Compatibility | Tricon v9–v10 Systems | Integrates with Tricon pulse input and totalizer modules |
| Panel Type | Basic termination panel | Designed for structured signal termination and distribution |
| Pulse Input Points | 8 differential pulse input channels | Used with pulse input modules such as 3510 and 3511 |
| Pulse Totalizer Points | 16 pulse totalizer input channels | Used with pulse totalizer module 3515 |
| Compatible Modules | 3510, 3511, 3515 | Supports pulse input and pulse totalizer monitoring functions |
| Input Signal Type | Differential signal terminals (IN+ and IN–) | Ensures accurate pulse signal detection |
| Signal Frequency Range | 20 Hz to 20 kHz for pulse input modules | Supports high-speed industrial sensor signals |
| Totalizer Frequency Range | 0 to 1 kHz | Suitable for pulse counting and process monitoring |
| Connectors | Industrial screw terminal blocks | Provides secure wiring connections for field devices |
| Interface Connector | 32-pin high-density system connector | Connects termination panel to Tricon controller modules |
| PCB Construction | Multi-layer industrial circuit board | Improves signal stability and reduces electromagnetic interference |
| Shielding Support | Dedicated shield grounding terminals | Enhances noise suppression for long cable installations |
| Energy Stabilization | Integrated filtering capacitors | Maintains stable signal levels during electrical disturbances |
| Dimensions | 305 mm × 180 mm × 45 mm | Designed for standard Tricon cabinet mounting |
| Weight | 1.2 kg | Durable construction suitable for industrial installations |
| Mounting Method | Panel mounting within control cabinet | Supports organized field wiring layout |
| Operating Temperature | −20°C to 70°C | Suitable for harsh industrial control environments |
| Humidity Range | 5% to 95% non-condensing | Maintains reliable signal transmission in humid facilities |
| Service Life | More than 10 years | Designed for continuous safety system operation |
FAQ
Q1: Is the 9753-110 termination panel brand new and original?
Yes. The 9753-110 module we supply is completely new and factory original.
Q2: Do you currently keep 9753-110 panels in stock?
Yes. We usually maintain stock for 9753-110 to support urgent industrial replacement requirements.
Q3: How long does shipping take after placing an order?
Shipping normally occurs within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics services do you use for delivery?
We commonly ship products through DHL, FedEx, and UPS international logistics services.
Q5: Which Tricon modules work with 9753-110?
The 9753-110 termination panel supports modules 3510, 3511, and 3515 for pulse monitoring applications.
Q6: What happens if the module develops quality issues after purchase?
We support product returns within 30 days if customers report verified quality problems.
