Overview

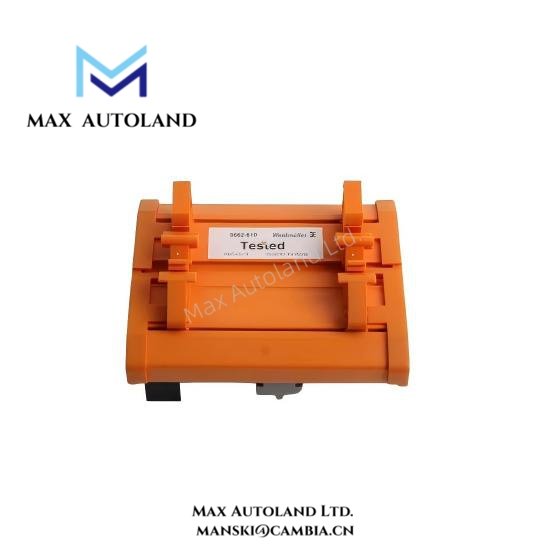

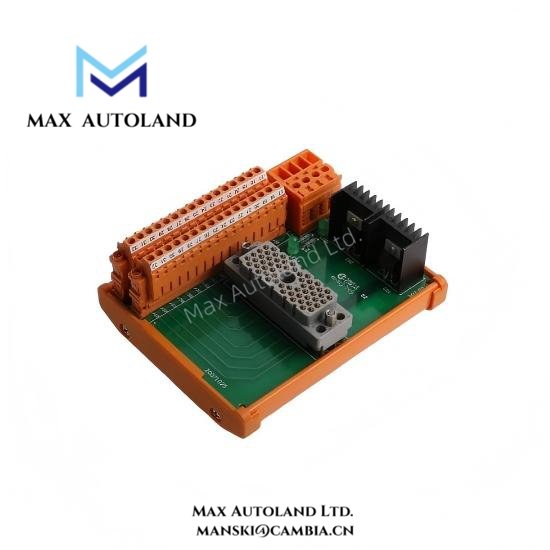

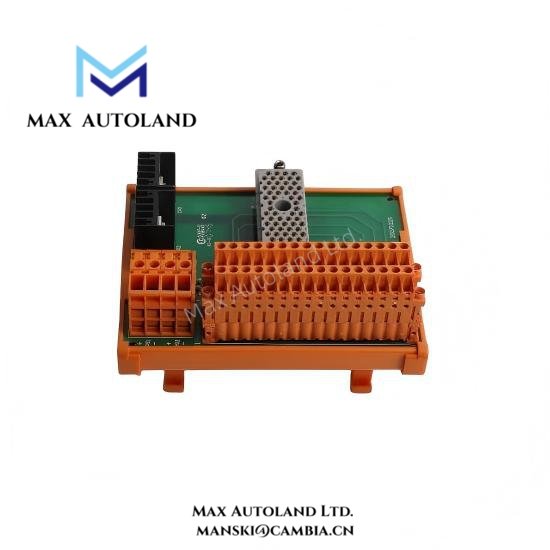

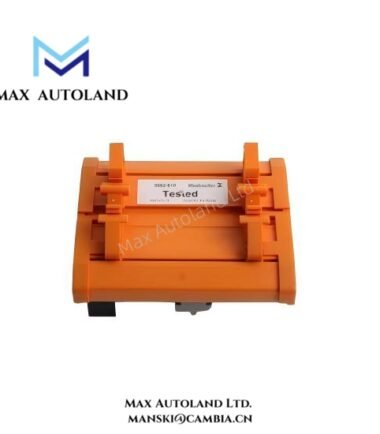

The 9662-610 Triconex Termination Board provides reliable field wiring connectivity for Triconex digital output modules. It supports industrial automation systems that require stable signal distribution and simplified wiring organization. Additionally, the board integrates directly with Tricon safety systems and connects field devices to digital output modules efficiently.
Moreover, the 9662-610 termination panel supports 24 VDC commoned digital output signals and includes sixteen load terminals. Engineers use this board with Triconex digital output modules such as 3624, 3625, 3664, and 3674. The panel also distributes power through common PWR+ and PWR– terminals while maintaining safe current capacity across all connected circuits.
Specification
| Parameter | Specification |
|---|---|
| Model | 9662-610 |
| Manufacturer | Triconex / Invensys |
| Product Type | Digital Output Termination Board |
| Panel Type | Commoned termination panel |
| Number of Termination Points | 16 output points |
| Output Voltage Compatibility | 24 VDC digital output systems |
| Maximum Total Current | 16 amps per termination panel |
| Current Limit with 3625 | 10 amps maximum to limit module power dissipation |
| Power Terminals | Commoned PWR+ and PWR– distribution terminals |
| Compatible Modules | 3624, 3625, 3664, 3674 digital output modules |
| Terminal Connections | 16 load terminals plus shared power terminals |
| Internal Components | Copper bus traces, terminal blocks, power distribution connectors, protective insulation |
| Energy Storage | Integrated filtering capacitors stabilize transient load switching conditions |
| Interface Connection | Ribbon cable or system connector to Tricon digital output modules |
| Dimensions | Approx. 210 mm × 160 mm × 40 mm |
| Weight | Approx. 0.9 kg |
| Operating Temperature | -20°C to 70°C industrial operating range |
| Storage Temperature | -40°C to 85°C |
| Mounting | Panel-mounted termination board for Tricon control cabinets |
FAQ
Q1: Is the 9662-610 termination board new and original?
Yes. Every 9662-610 board we supply is completely new and original factory equipment.
Q2: Do you currently have the 9662-610 in stock?
Yes. Our warehouse stocks the 9662-610 termination board for immediate order processing.
Q3: How long does shipping usually take?
We arrange shipment within 3 days to 2 weeks depending on order quantity and packaging preparation.
Q4: Which logistics carriers handle product delivery?
We normally ship products through DHL, FedEx, UPS, and other reliable international logistics providers.
Q5: Can the 9662-610 board work with 32-point digital output modules?
Yes. Engineers install two 9662-610 panels when connecting a 32-point module such as 3625.
Q6: What happens if a quality problem occurs after delivery?
If any quality issue occurs, we support return or replacement within 30 days after delivery.
