Overview

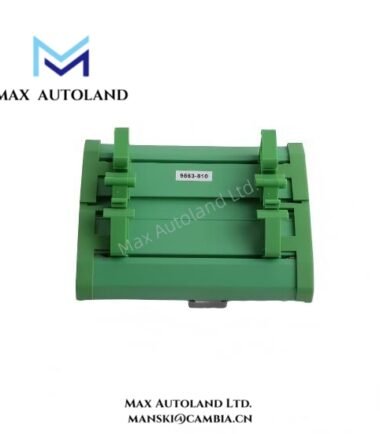

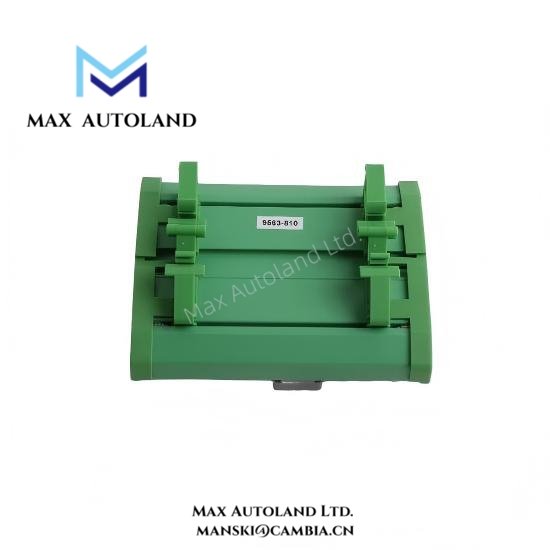

The 9563-810 module supports signal termination and distribution within Triconex Tricon safety instrumented systems.
Engineers install 9563-810 to connect field digital input signals with Triconex controller modules efficiently.
Additionally, the 9563-810 termination panel organizes multiple wiring connections and simplifies industrial signal management tasks.
The module integrates durable connectors and stable circuit routing that maintain accurate signal transmission during operation.
Furthermore, 9563-810 includes high-reliability components that support continuous operation in demanding industrial environments.
Its compact design allows quick installation inside Triconex system cabinets without occupying excessive rack space.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Manufacturer | Triconex | Industrial safety system manufacturer within Schneider Electric group |
| Model | 9563-810 | Digital Input Termination Panel Module |
| System Compatibility | Triconex Tricon Safety System | Supports integration with Tricon digital input modules |
| Module Type | Digital Input Termination Panel | Provides structured wiring interface for field input signals |
| Input Channel Capacity | 32 digital input channels | Supports discrete field signal termination |
| Terminal Type | Industrial screw terminal connectors | Ensures secure and stable wiring connections |
| Connector Interfaces | 3 high-density system connectors | Connects directly to Tricon input modules through cable assemblies |
| PCB Construction | Multi-layer industrial circuit board | Optimizes signal routing and electromagnetic compatibility |
| Energy Storage | Integrated filtering capacitors | Stabilizes voltage and reduces signal noise |
| Dimensions | 305 mm × 180 mm × 45 mm | Compact panel suitable for cabinet mounting |
| Weight | 1.15 kg | Reinforced structure improves mechanical durability |
| Mounting Method | Panel or rack mounting | Compatible with Tricon system cabinet layouts |
| Operating Temperature | −20°C to 70°C | Suitable for industrial automation environments |
| Humidity Range | 5% to 95% non-condensing | Ensures reliable performance in humid facilities |
| Wiring Capacity | Supports multiple field cable connections | Simplifies wiring organization and maintenance |
| Diagnostic Support | Visual inspection and accessible terminals | Facilitates quick troubleshooting and maintenance |
| Expected Service Life | More than 10 years | Designed for long-term safety system operation |
FAQ
Q1: Is the 9563-810 module brand new and original?
Yes. The 9563-810 module we supply is brand new and factory original.
Q2: Do you currently have 9563-810 modules in stock?
Yes, we maintain inventory for 9563-810 and support urgent industrial replacement orders.
Q3: How long does shipping usually take after ordering?
Shipping normally occurs within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics services do you typically use for delivery?
We commonly use reliable logistics providers such as DHL, FedEx, and UPS.
Q5: How many input channels does 9563-810 support?
The 9563-810 termination panel supports up to 32 digital input signal channels.
Q6: What happens if the module develops quality issues?
We support returns within 30 days if customers identify verified product quality problems.
