Overview

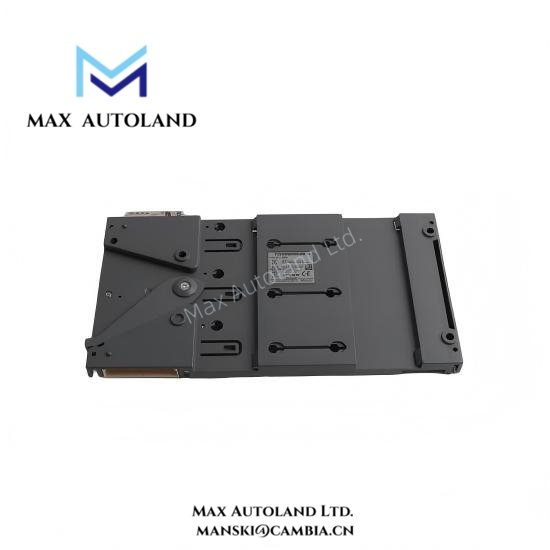

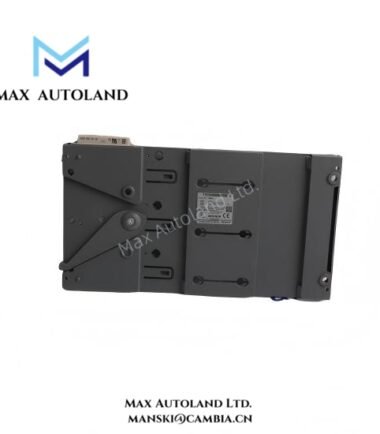

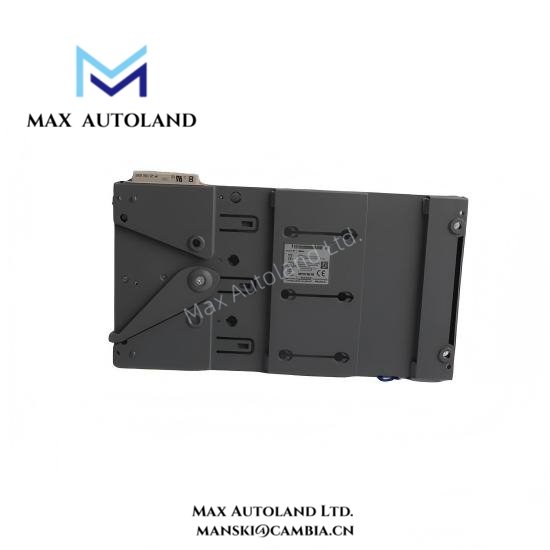

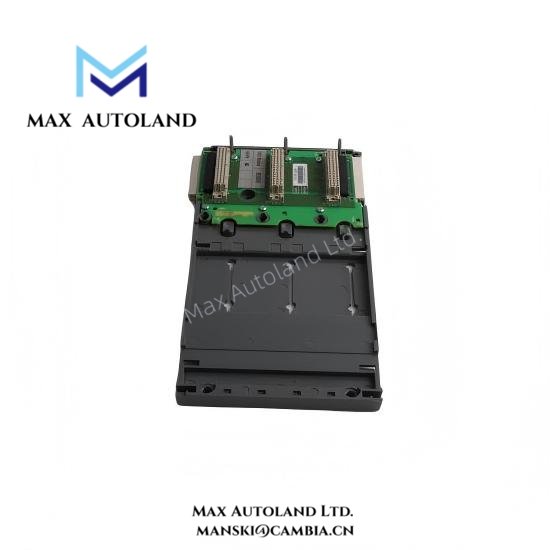

The 9300 Triconex I/O Backplane serves as the central communication and power distribution hub for ICS Triplex safety controllers. It provides structured interconnection between processor modules, analog input/output, and digital input/output units, ensuring synchronized operation across all modules. The backplane’s high-speed serial and parallel buses enable real-time data transfer, supporting critical safety functions and fast response times. Its integrated decoupling capacitors maintain stable internal power distribution during transient events, minimizing signal fluctuations.
Constructed from durable materials, the 9300 withstands extreme temperatures, vibration, and humidity in industrial environments. It fits seamlessly into standard Tricon chassis and is compatible with a wide range of processor and I/O modules, making it ideal for chemical, oil & gas, and power generation process control applications. Additionally, its hot-swappable design allows maintenance without system shutdown, reducing operational downtime and enhancing system reliability.
Specification
| Parameter | Specification |
|---|---|
| Model | 9300 |
| Manufacturer | Triconex / ICS Triplex |
| Module Type | I/O Backplane Module |
| Supported Modules | Processor modules, analog input/output, digital input/output units |
| Communication | High-speed serial and parallel buses |
| Power Distribution | 24 VDC internal distribution |
| Number of Slots | Up to 12 I/O and processor slots depending on chassis series |
| Dimensions | 320 mm × 150 mm × 40 mm |
| Weight | 1.5 kg |
| Backplane Interface | Standard Tricon connector, hot-swappable |
| Isolation | 2500 V galvanic isolation between modules |
| Energy Storage | Integrated decoupling capacitors for transient power stability |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% RH non-condensing |
| Vibration Tolerance | 5–25 Hz: 2g; 25–100 Hz: 0.5g |
| Certification | CE, UL listed (industrial safety standard) |
FAQ
Q1: Is the 9300 module new and original?
A1: Yes, all our 9300 backplanes are fully new, factory-original units.
Q2: How fast can you ship this I/O backplane module?
A2: We ship within 3 days to 2 weeks depending on order quantity.
Q3: Which logistics companies do you use for delivery?
A3: We commonly use DHL, FedEx, and UPS for global shipments.
Q4: What if the product has a quality issue?
A4: We support returns within 30 days if quality issues arise.
Q5: How many modules can this backplane support?
A5: The 9300 supports up to 12 processor and I/O modules depending on chassis configuration.
Q6: Does it provide stable power and communication?
A6: Yes, integrated decoupling capacitors and high-speed buses ensure consistent performance.
