Overview

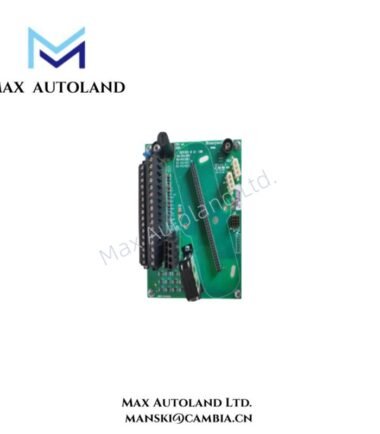

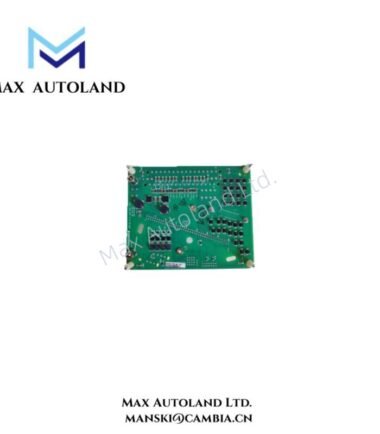

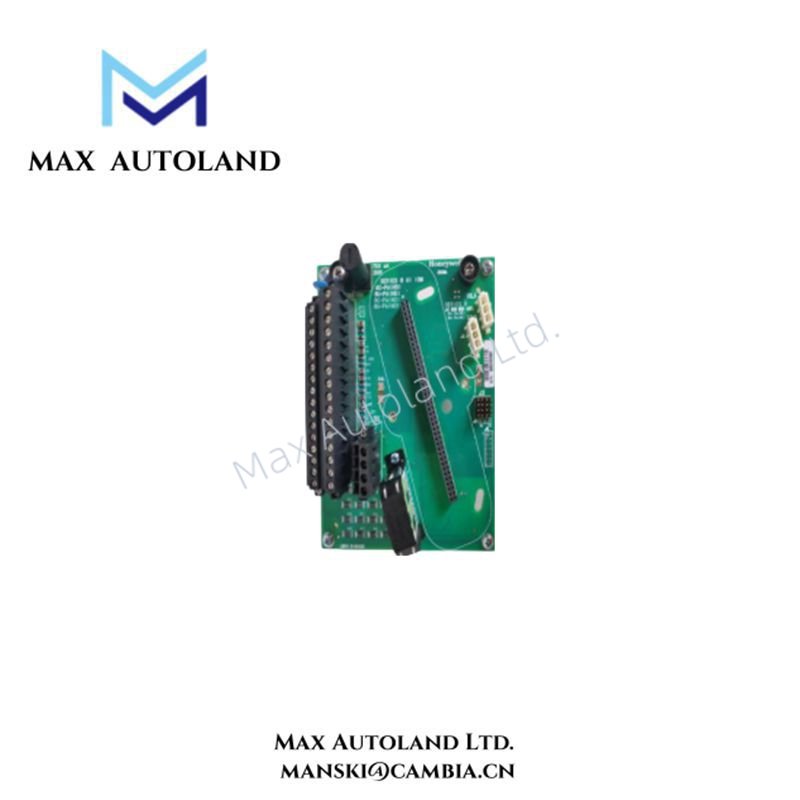

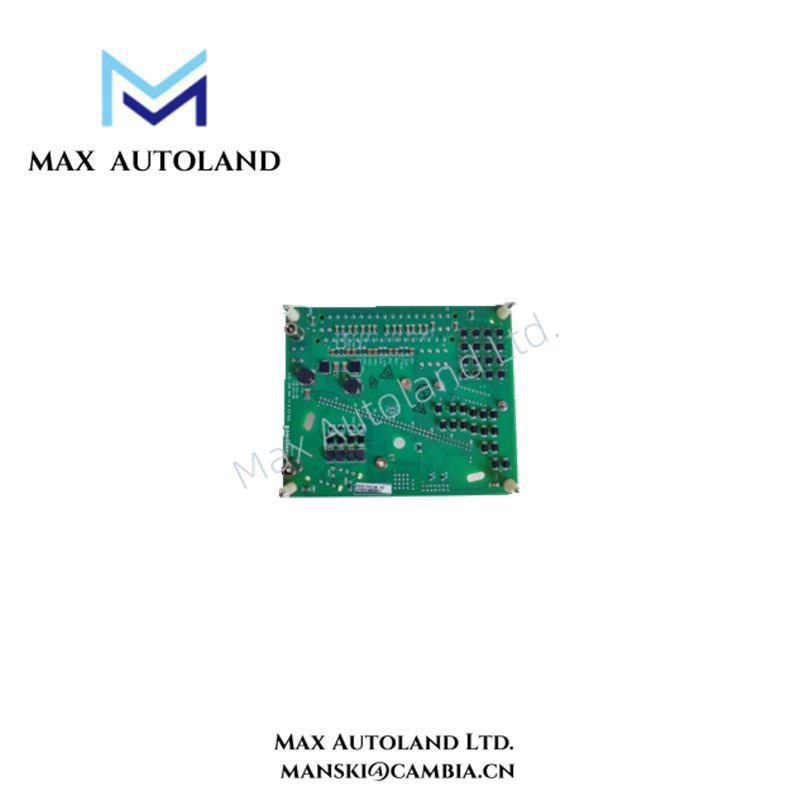

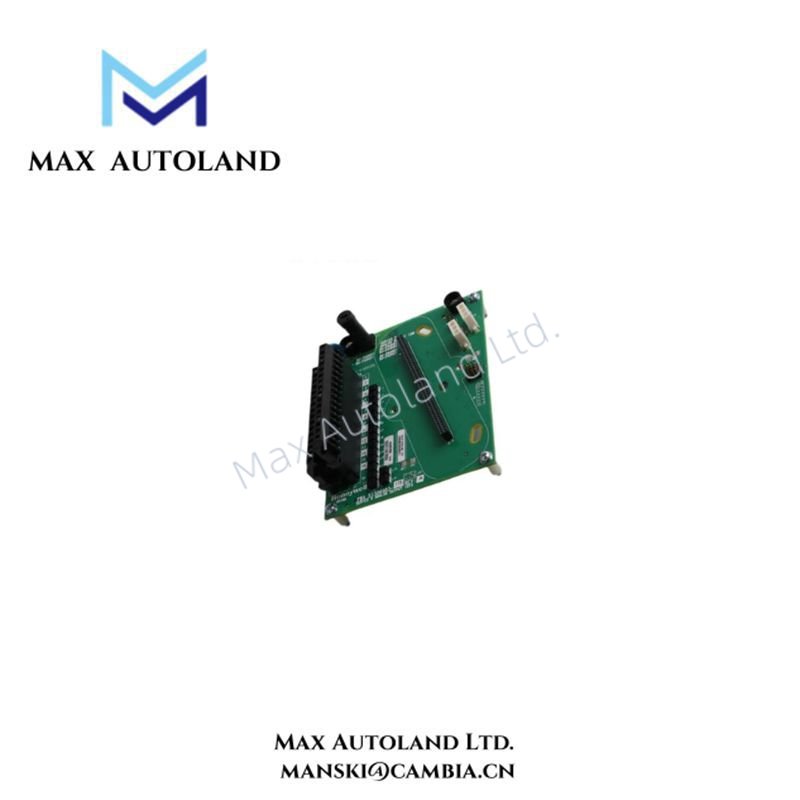

The Honeywell 8C-TAOXA1 51307135-175 is a coated Analog Output I/O Termination Assembly (IOTA) designed for the Experion C300 controller within the Series 8 platform. This module provides 16 channels of analog output, supporting both 0–10 VDC and 4–20 mA signals, and is suitable for applications requiring precise analog signal control in industrial automation systems.
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices.This Series 8 IO function can detect and annunciate open field wire with a Channel Soft Failure indication. Series 8 AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM device electronics fails.
Specification
| Attribute | Specification |
|---|---|
| Model Number | 8C-TAOX51 |
| Manufacturer | Honeywell |
| Series | Experion Series 8 |
| Module Type | Analog Output IOTA (Coated) |
| Channels | 16 |
| Output Type | 0–10 VDC or 4–20 mA (configurable) |
| Resolution | 12 bits |
| Power Supply | 24V DC nominal (20–30 V DC range) |
| Power Consumption | Maximum 2.4 W |
| Mounting Type | DIN Rail or Panel via IOTA Base |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Dimensions (L × W × H) | 14.5 × 12 × 6.5 cm |
| Weight | Approximately 0.5 kg |
