Overview

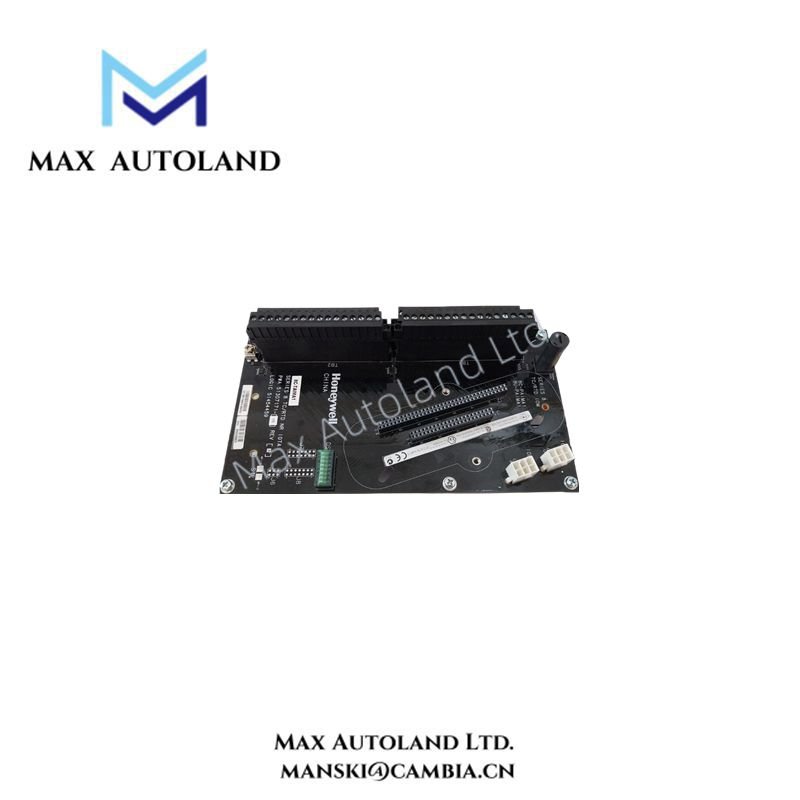

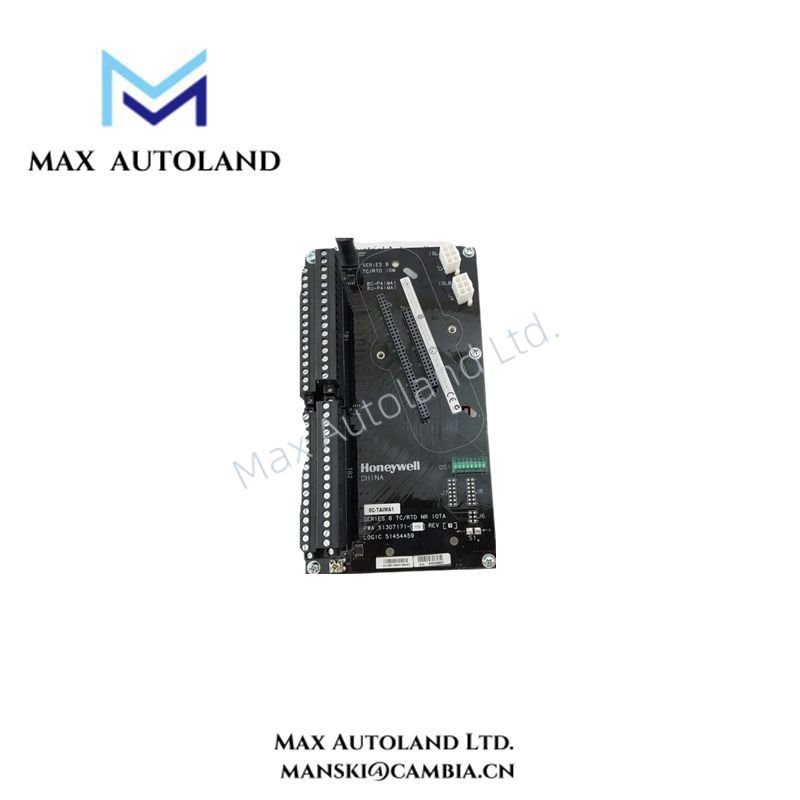

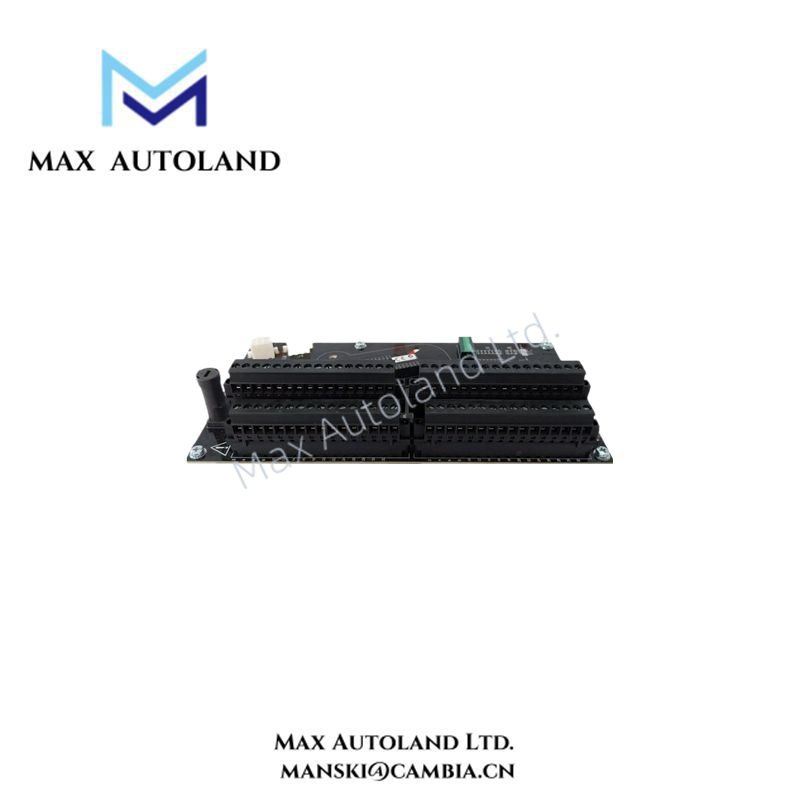

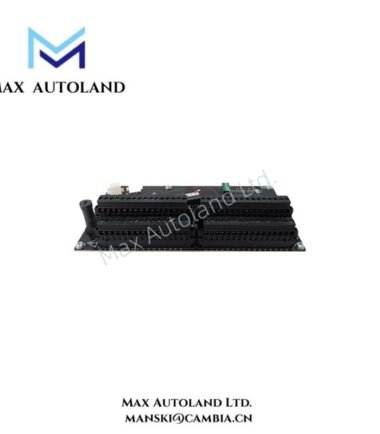

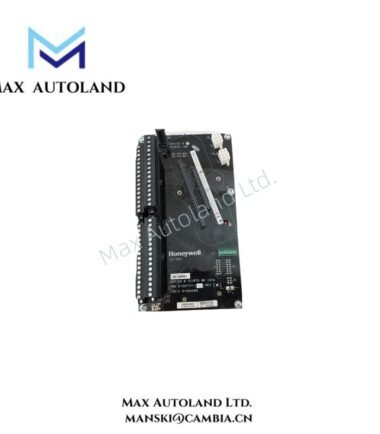

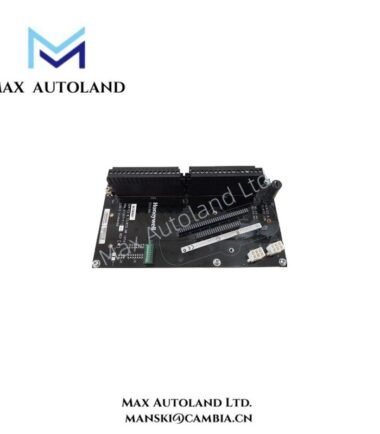

The Honeywell 8C-TAIMA1 is a coated, non-redundant Input/Output Termination Assembly (IOTA) designed for the Experion C300 controller within the Series 8 platform. This module provides 16 channels for temperature measurements, supporting both thermocouple (TC) and Resistance Temperature Detector (RTD) inputs. It ensures precise temperature monitoring in industrial automation systems.
The Low Level Analog Input (LLAI) Module accepts up to 16 channels of temperature inputs from RTD & TC.
Specification
| Attribute | Specification |
|---|---|
| Model Number | 8C-TAIMA1 |
| Manufacturer | Honeywell |
| Series | Experion Series 8 |
| Module Type | TC/RTD IOTA (Coated, Non-Redundant) |
| Channels | 16 |
| Input Types | Thermocouple (J, K, E, T), RTD (Pt100, Pt1000, Ni120, Cu10, Cu50) |
| Scan Rate | 1 second (fixed) |
| Cold Junction Comp. | Integral for TC inputs |
| OTD Detection | Configurable |
| Surge Protection | EN 61000-4-5 compliant |
| Mounting Type | DIN Rail or Panel |
| Operating Voltage | 24V DC nominal (20–30 V DC range) |
| Power Consumption | Maximum 120 mA |
| Dimensions (L × W × H) | 9 inches (22.9 cm) length |
| Weight | Approximately 1 kg |
Manual/Datasheet PDF
8C-TAIMA1 51307171-175 Honeywell Series 8 C300 IOTA Modules datasheet
