Overview

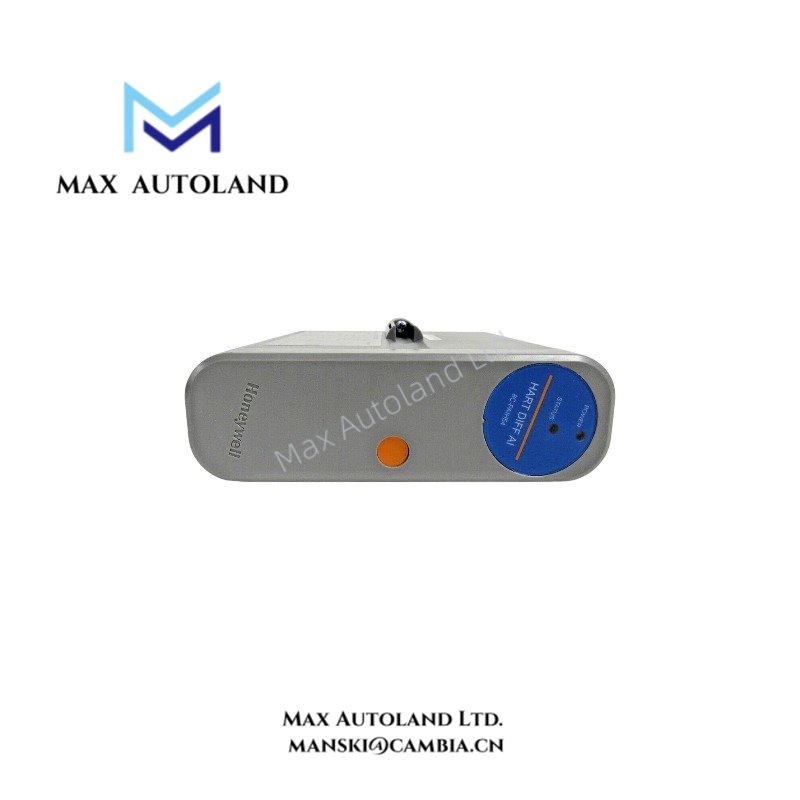

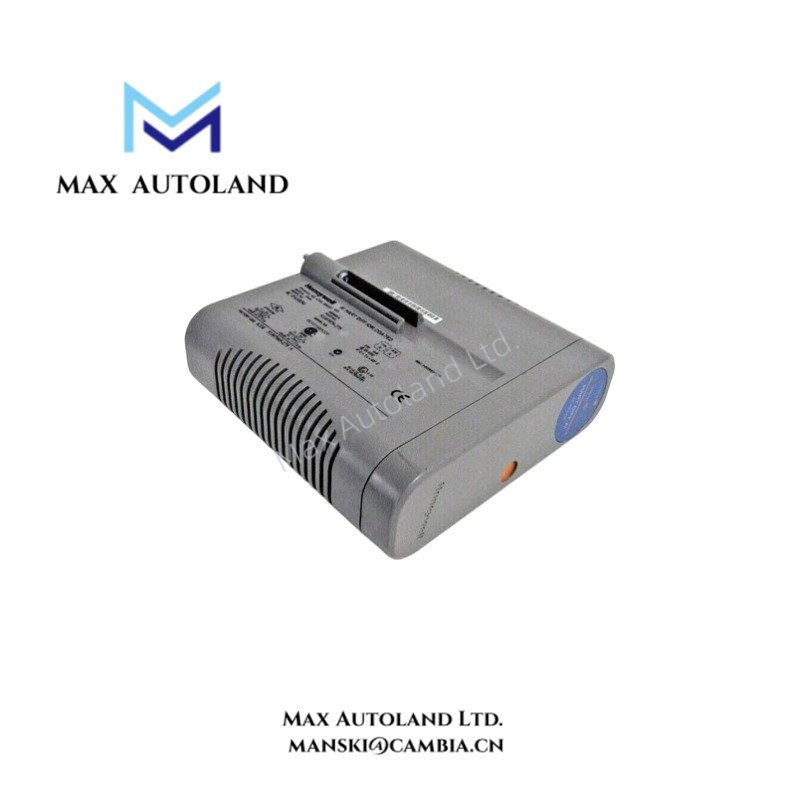

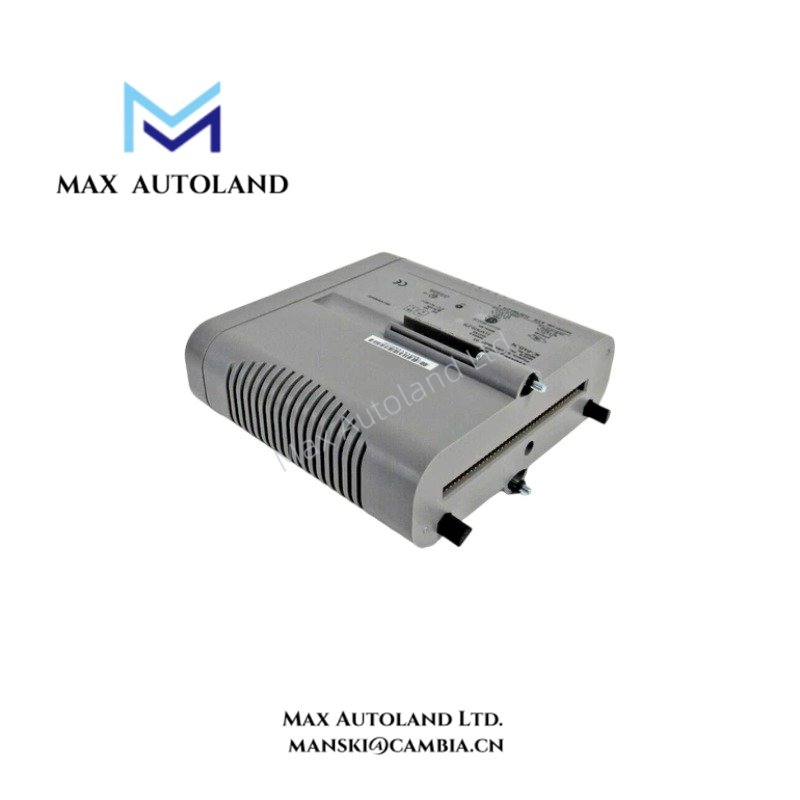

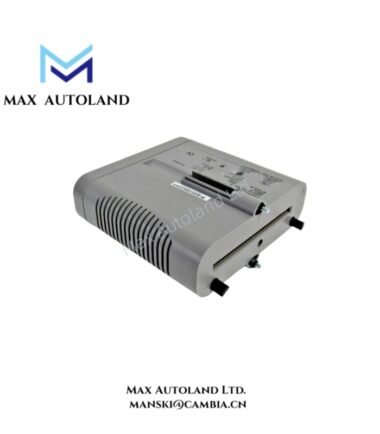

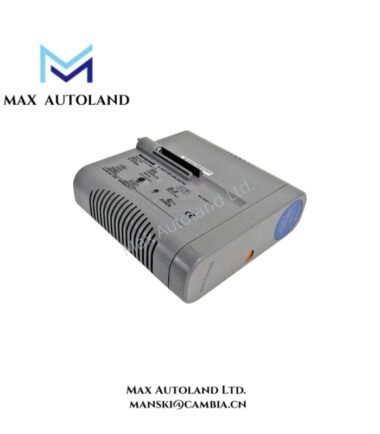

The Honeywell 8C-PAIH54 51307070-275 is a 16-channel analog input module for industrial process control. It reads voltage and current signals from field instruments and converts them into digital data with 16-bit resolution. In addition, it supports HART-capable multivariable instruments, self-diagnostics, and single-ended or differential inputs. Optional redundancy is also listed among its features.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-PAIH54 51307070-275 |
| Brand | Honeywell |
| Product Type | Analog Input Module |
| Module Type | I/O Module |
| Input Channels | 16 |
| Input Configuration | Single-ended or differential |
| A/D Converter Resolution | 16 bits |
| Input Range | 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA |
| Voltage Rating | 24 VDC |
| Module Current Rating | 310 mA |
| Common Mode Rejection Ratio | 70 dB, DC to 60 Hz |
| Common Mode Voltage | -6 to +5 V peak, DC to 60 Hz |
| Normal Mode Rejection Ratio | 19 dB at 60 Hz |
| Normal Mode Filter Response | Single-pole RC |
| Filter Response | -3 dB at 6.5 Hz |
| Crosstalk | -60 dB, DC to 60 Hz |
| Input Impedance (Voltage Inputs) | Greater than 10 MOhm when powered |
| Maximum Normal Mode Input | +/-30 V |
| Diagnostics | Self-diagnostics |
| HART Support | Supports HART-capable multivariable instruments |
| Redundancy | Optional; configuration requires verification |
| Tariff Code | 8537101190 |
| Country of Origin | USA |
| Estimated Shipping Dimensions | 7 x 13 x 12.1 cm |
| Weight | 0.36 kg |
Analog Input and Signal Conversion
The module reads analog signals from field instruments and converts them into digital values for the control system. Its 16 input channels support single-ended or differential configurations, depending on the selected signal and wiring arrangement.
The listed input ranges cover several voltage signals and the standard 4-20 mA current signal. Therefore, check the field instrument output and the module’s configured input range before connecting the signals.
HART Support and Self-Diagnostics
The 8C-PAIH54 supports HART-capable multivariable instruments. The supplied feature information also identifies multiple modems for faster collection of control variables, along with a fast loop scan function. However, the exact HART channel capacity, communication arrangement, and scan time require confirmation from model-specific documentation.
In addition, self-diagnostics help the control system identify module faults. The available specifications do not list individual diagnostic codes or detailed fault responses.
Signal Filtering and Electrical Limits
The module uses a single-pole RC filter with a -3 dB response at 6.5 Hz. This filter affects the response to changing input signals, so it is worth checking when the application requires a specific measurement response.
The module also specifies a common mode rejection ratio of 70 dB and a normal mode rejection ratio of 19 dB at 60 Hz. These values describe its ability to reject certain types of electrical interference. However, the maximum normal mode input of +/-30 V does not define the normal measurement range; the configured input range and applicable electrical limits still apply.
Frequently Asked Questions
Q: How many input channels does the Honeywell 8C-PAIH54 provide?
A: It provides 16 analog input channels. Each channel supports the specified voltage or current input options, subject to the selected configuration.
Q: Can the 8C-PAIH54 read signals from HART instruments?
A: Yes. The module supports HART-capable multivariable instruments. However, confirm the required communication arrangement and instrument configuration before commissioning.
Q: What should I check before replacing an existing analog input module?
A: First, verify the complete model number, input signal types, channel configuration, and terminal connections. Then confirm the control system requirements, HART communication needs, and any optional redundancy configuration.
