Overview

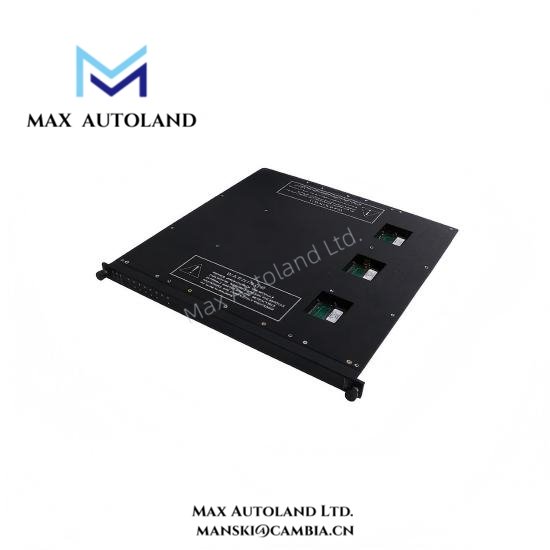

The 3511 Triconex AC Coupled Pulse Input Module captures high-frequency pulse signals from field sensors and monitoring instruments. It converts these signals into accurate digital data for Triconex safety controllers. Moreover, the module supports precise signal processing for turbine speed monitoring, flow measurement, and rotating equipment supervision.
Additionally, the 3511 integrates directly with Triconex control systems through a high-density backplane interface connector. The module includes advanced signal conditioning circuits and optical isolation components to ensure reliable signal integrity. Rugged industrial construction allows the module to perform consistently under vibration, temperature variation, and electrical noise conditions.
Specification
| Parameter | Specification |
|---|---|
| Model | 3511 |
| Manufacturer | Triconex / Invensys |
| Product Type | AC Coupled Pulse Input Module |
| Input Channels | 8 independent pulse input channels |
| Input Signal Type | AC-coupled pulse signals from speed probes or sensors |
| Maximum Input Frequency | Up to 20 kHz pulse detection capability |
| Input Voltage Range | 5 V to 120 V peak pulse signals |
| Input Impedance | Approximately 10 kΩ per channel |
| Signal Conditioning | AC coupling filters and noise suppression circuits |
| Isolation | Optical isolation between field signals and controller logic |
| Interface Connection | High-density backplane connector for Triconex chassis |
| Internal Components | Opto-isolators, signal filters, comparator circuits, precision resistors, and protection diodes |
| Energy Storage | Integrated decoupling capacitors maintain stable voltage during transient pulse events |
| Power Supply | Backplane supplied power from Triconex controller rack |
| Power Consumption | Approx. 3–4 W typical |
| Dimensions | Approx. 235 mm × 160 mm × 35 mm |
| Weight | Approx. 1.1 kg |
| Operating Temperature | -20°C to 70°C industrial operating range |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Mounting | Rack-mounted module for Triconex safety controller systems |
