Overview
Specification
| Parameter | Specification |
|---|---|

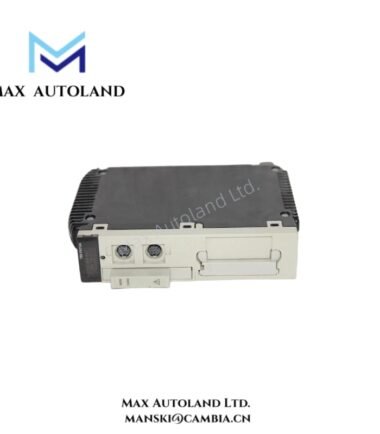

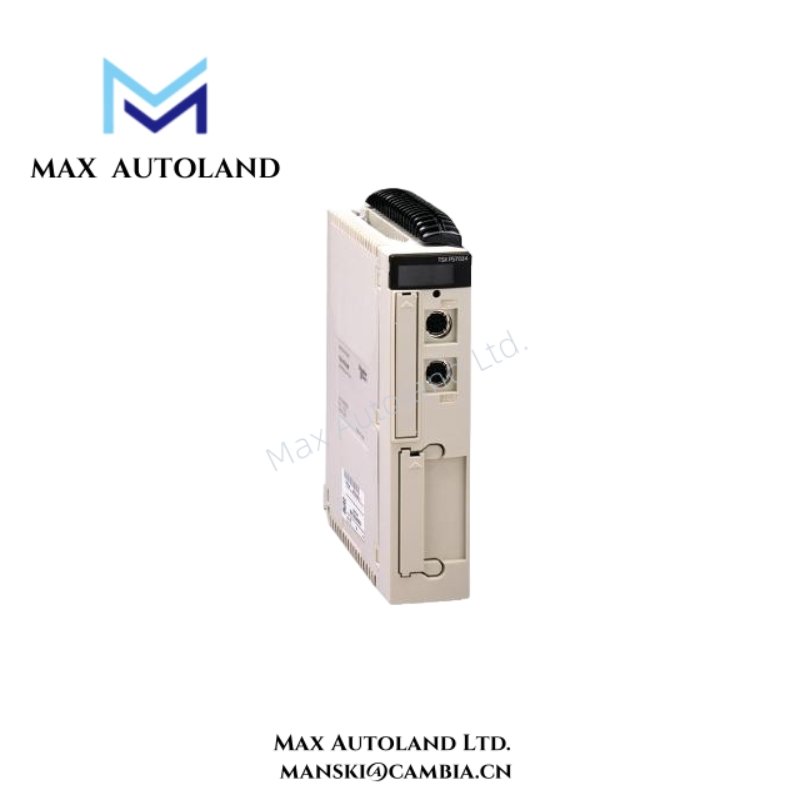

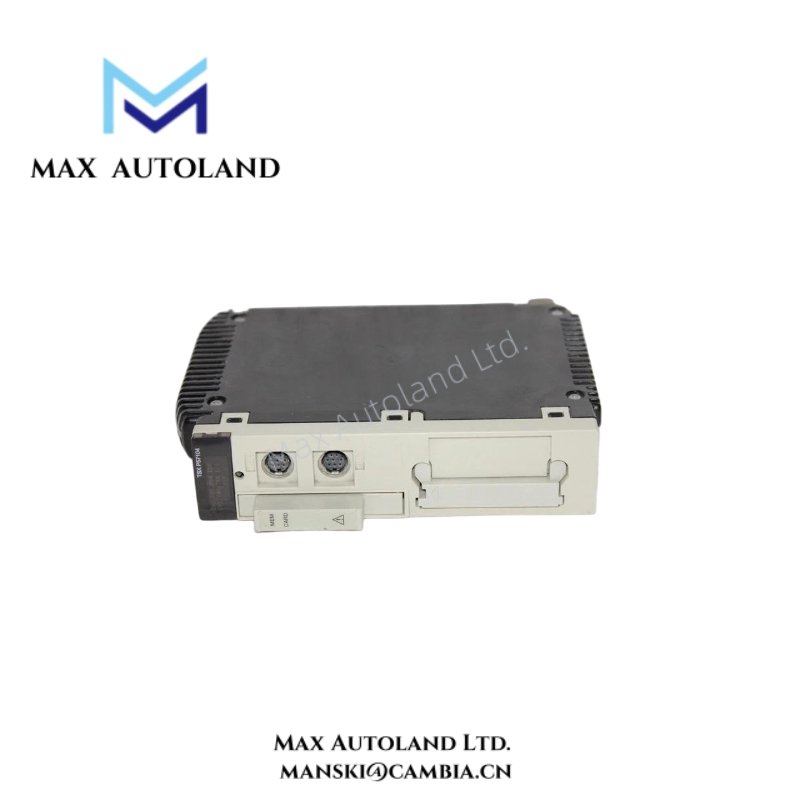

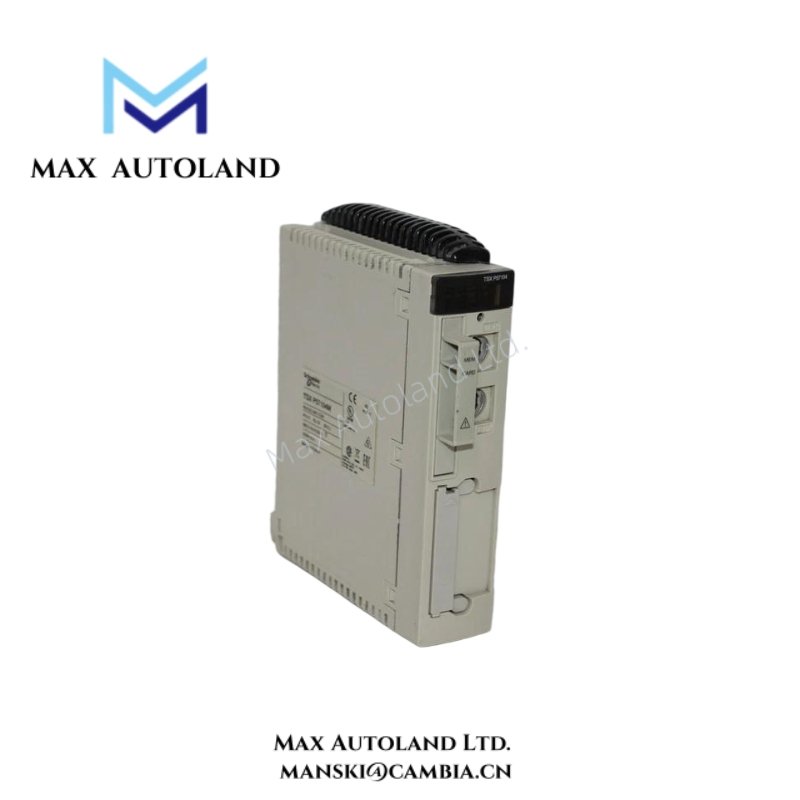

| Product Type / Platform | Unity Processor for Modicon Premium automation system |
| Software Compatibility | Unity Pro programming environment |
| Rack / Slot Support | Supports either 2‑rack (12‑slot) or 4‑rack (4/6/8 slots) configurations |
| Total Slots Capacity | Up to 16, 24 or 32 slots depending on rack setup |
| Discrete I/O Capacity | Up to 512 I/O points |
| Analog I/O Capacity | Up to 24 analog I/O channels |
| Application‑Specific Channels | Up to 8 special‑function channels |
| Memory (Internal RAM) | Without PCMCIA card: 96 KB (program + data) |
| Memory (with PCMCIA card) | 224 KB for program + 96 KB for data |
| PCMCIA Storage Card (optional) | 256 KB additional data storage capacity |
| Maximum Size of Object Areas | 32 KB (elementary and derived data) + 64 KB for function blocks (DFB/EFB) |
| Task Structure / Multitasking | 1 master task, 1 fast task, plus up to 32 event-driven tasks |
| Instruction Execution Time (no PCMCIA) | Boolean operations: 0.19 µs; fixed-point: 0.25 µs |
| Instruction Execution Time (with PCMCIA) | Boolean: 0.25 µs; fixed-point: 0.5 µs; floating‑point: 1.75–2.6 µs |
| Max Instruction Rate | Up to 4.76k instructions/ms (100% Boolean, no PCMCIA) |
| System Overhead / Task Cycle | Fast‑task overhead 0.3 ms; master task cycle 1.0 ms |
| Integrated Communication Interface | Non‑isolated serial link: 2 female mini‑DIN (RS485), 19.2 kbit/s |
| Power Supply / Consumption | 5 V DC, current consumption approx. 850 mA |
| Local Signalling / Status LEDs | RUN (green), I/O fault (red), System/Processor fault (ERR, red), Terminal‑port activity (TER, yellow) |
| Environmental Conditions (Operation) | Ambient temperature: 0–60 °C; Relative humidity: 10–95% (non‑condensing) |
| Environmental Conditions (Storage) | –25–70 °C ambient; humidity 5–95% (non‑condensing) |
| Altitude Rating | Up to 2000 m above sea level |
| Protection Rating / Pollution Degree | IP20, Pollution Degree 2, suitable for industrial control environments |
| Weight | Approximately 0.38 kg |
FAQ
A1: The TSXP57104M is a Unity Processor CPU for Modicon Premium systems that executes control programs and manages I/O modules efficiently.
