Overview
Specification
| Parameter | Specification |
|---|---|

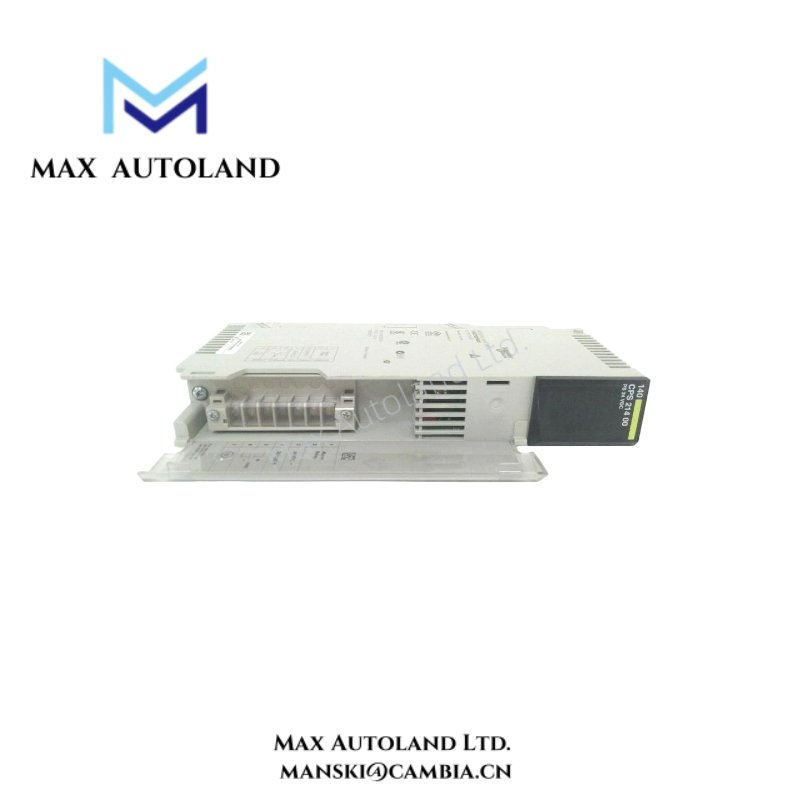

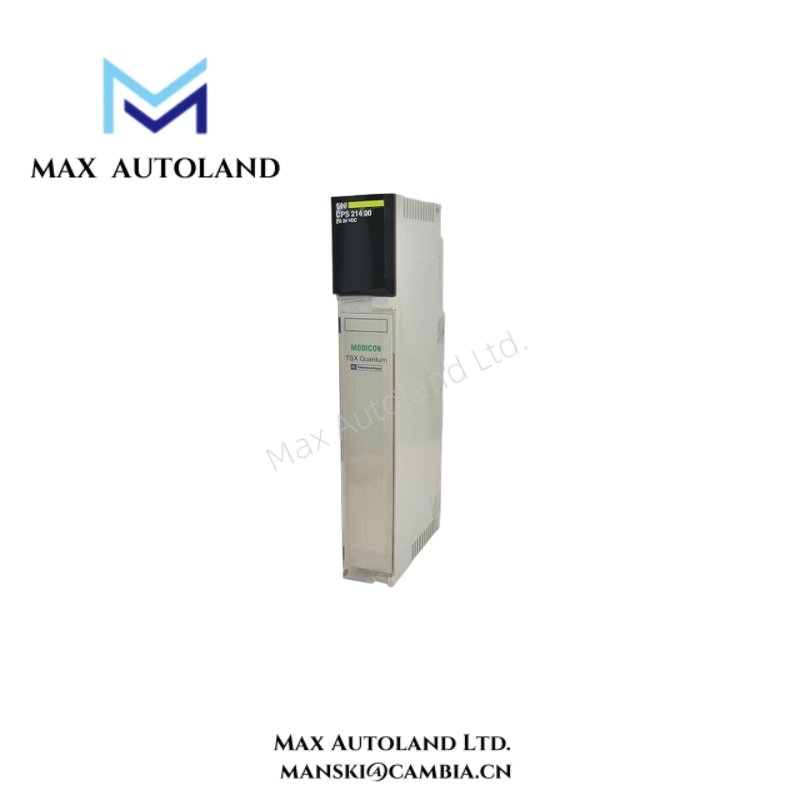

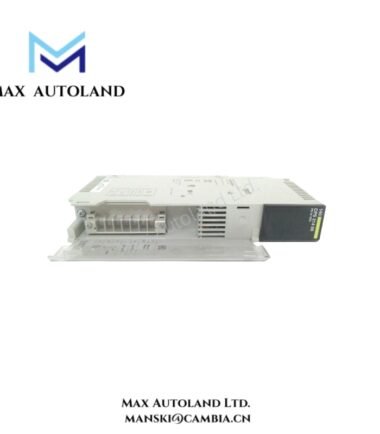

| Model | 140CPS21400 |
| Brand | Schneider Electric |
| Module Type | Quantum power supply module |
| Input Voltage Range | 20–30 V DC |
| Output Voltage | 24 V DC nominal |
| Output Current | 2 A continuous load |
| Power Rating | 48 W maximum |
| Efficiency | >85% typical |
| Protection | Overload, short-circuit, and thermal protection |
| Mounting | DIN rail or rack-mounted |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -20–70°C for safe transport and storage |
| LED Status Indicators | Yes, for power and fault monitoring |
| Certifications | CE, UL, and CSA compliant |
| Dimensions (HxWxD) | 110 x 45 x 125 mm |
| Weight | 0.5 kg |
FAQ
The module provides a stable 24 V DC output for Quantum PLC systems.
Q2: What input voltage range does it support?
It supports 20–30 V DC, accommodating variable supply conditions.
Q3: Can this module be mounted in dense control panels?
Yes, its compact form factor allows flexible installation in tight spaces.
Q4: Does it include protection features?
Yes, it provides overload, short-circuit, and thermal protection.
Q5: What industrial applications is it suitable for?
It is suitable for manufacturing automation, process control, packaging, and OEM machinery requiring reliable 24 V DC power.
