Overview

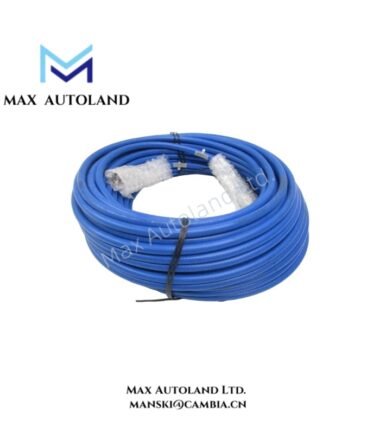

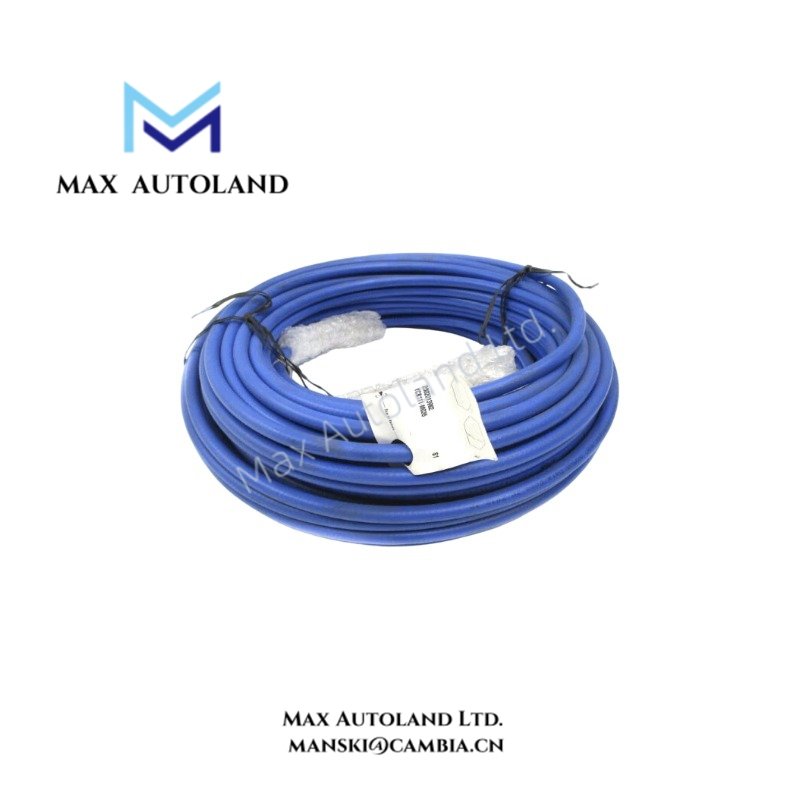

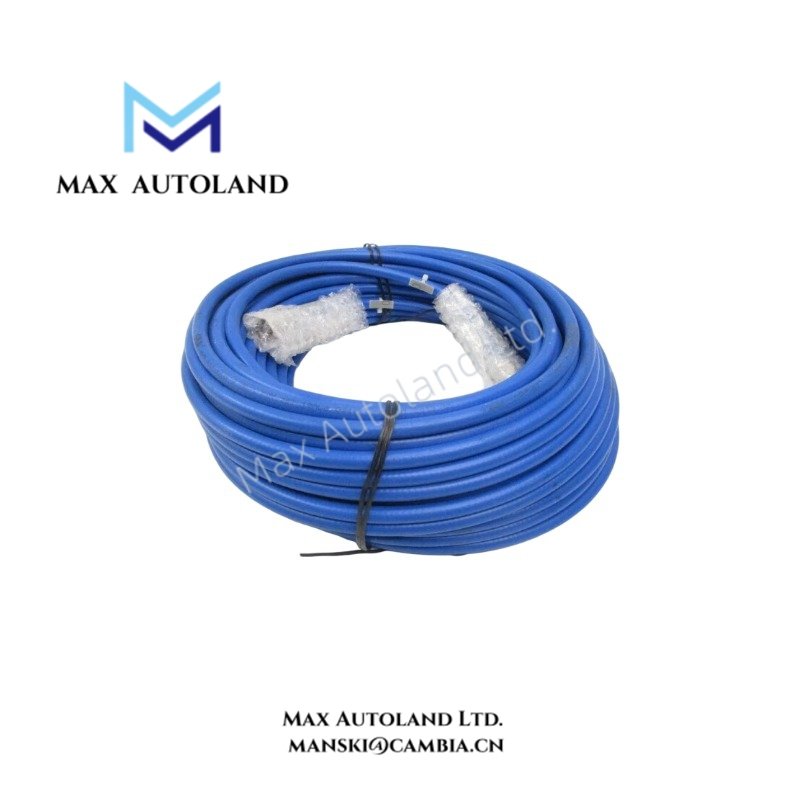

The Yokogawa YCB111-M025, based on the YCB111 V net Cable series, is a 10BASE-5 coaxial cable designed for data communication within Yokogawa CENTUM VP control networks. It uses an N-type connector and has a specified cable length of 25 m. The cable supports physical network connections for V net communication.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | YCB111-M025 |
| Brand | Yokogawa |
| Product Type | V net Communication Cables |
| Cable Type | 10BASE-5 coaxial cable |
| Cable Connector | N type |
| Cable Length | 25 m, based on the model designation |
| Minimum Bending Radius | 100 mm |
| Application | V net communication in CENTUM VP systems |
| Origin | Japan |
| Maximum Specified Cable Length | 500 m for the YCB111 model series |
V net Cable Characteristics
The YCB111 series uses coaxial cable for the V net 10BASE-5 communication bus. The specified connector type is N type, and the minimum bending radius is 100 mm.
Yokogawa also specifies separate cable types for other control-system buses. V net and ER bus cables use different coaxial cable standards and connectors, so their physical interfaces should not be treated as interchangeable.
Frequently Asked Questions (FAQ)
Q: What connector does the YCB111-M025 use?
A: The specified connector is N type for the V net 10BASE-5 coaxial cable.
Q: What is the minimum bending radius?
A: The specified minimum bending radius is 100 mm. Maintain this radius during installation to avoid excessive cable bending.
Q: Can the YCB111-M025 be used as an ER bus cable?
A: The YCB111 is specified for V net 10BASE-5 communication. The ER bus uses 10BASE-2 coaxial cable with BNC connectors, so the cable types and connector interfaces differ.
Field Installation Guidelines
- Verify that the cable and N-type connectors match the intended V net 10BASE-5 interface.
- Maintain a minimum bending radius of 100 mm during routing and installation.
- Secure the cable to prevent mechanical strain at connectors and connection points.
- Follow the system installation documentation for cable termination, shielding, grounding, and network topology.
- Do not substitute ER bus 10BASE-2 cables or connectors for the specified V net cable without explicit system documentation.
