Overview

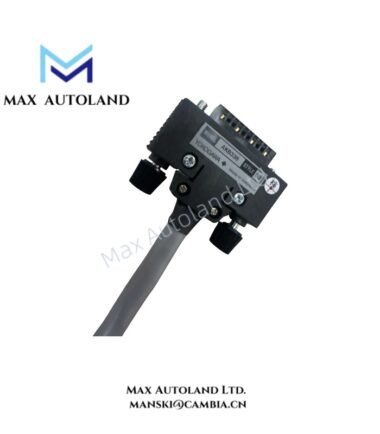

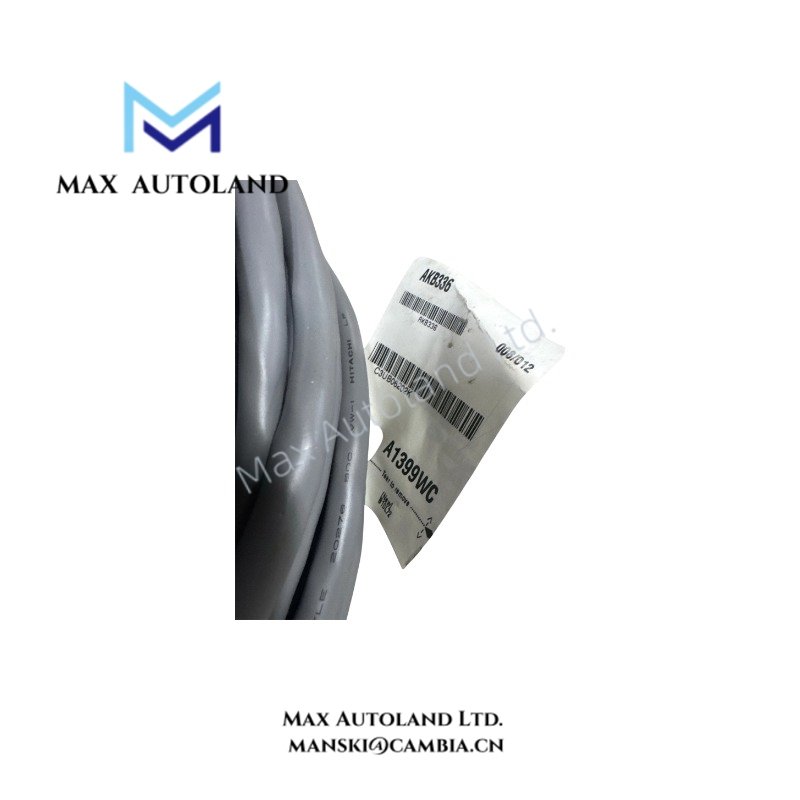

The Yokogawa AKB336-M002, also cataloged as the AKB336 signal cable, provides a 2 m physical interconnection between an ALF111 module and a terminal board in Yokogawa control system configurations. The cable uses a 20-pin to 20-pin connection. The suffix code -M002 specifies the cable length.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AKB336-M002 |
| Base Model | AKB336 |
| Brand | Yokogawa |
| Product Type | Signal Cables |
| Application | Connection between ALF111 and terminal board |
| Connector Configuration | 20-pin to 20-pin |
| Cable Length | 2 m |
| Origin | Japan |
| Optional Code | 8544601300 |
DCS Signal Interconnection Characteristics
The AKB336-M002 is specified for signal interconnection between the ALF111 module and a terminal board. Its 20-pin to 20-pin configuration and 2 m cable length define the physical connection requirements.
The supplied general specification also describes V net, ER bus, ESB bus, and RIO bus cable characteristics. However, those network-specific cable types and connector details do not establish the electrical characteristics of the AKB336 itself. Confirm the applicable cable specification before substituting it for another interconnection cable.
Frequently Asked Questions (FAQ)
Q: What does the suffix -M002 indicate?
A: The suffix -M002 specifies a cable length of 2 m. The AKB336 series also lists other lengths from 1 m to 30 m.
Q: Which equipment does the AKB336-M002 connect?
A: The specified application is the connection between an ALF111 module and a terminal board.
Q: What does the /NL option indicate?
A: The /NL option indicates support for CSA Non-Incendive instrumentation. Verify the applicable equipment certification and installation requirements for the intended configuration.
Field Installation Guidelines
- Verify the complete model number and cable length before installation.
- Confirm that both mating interfaces match the specified 20-pin connection configuration.
- Route the cable according to the control system installation documentation. Avoid excessive bending, tensile loading, and mechanical abrasion.
- Keep signal cables separated from power conductors where required by the system wiring specifications.
- Check connector engagement and cable condition before commissioning.
- Confirm the /NL option and applicable certification requirements when non-incendive installation conditions apply.
