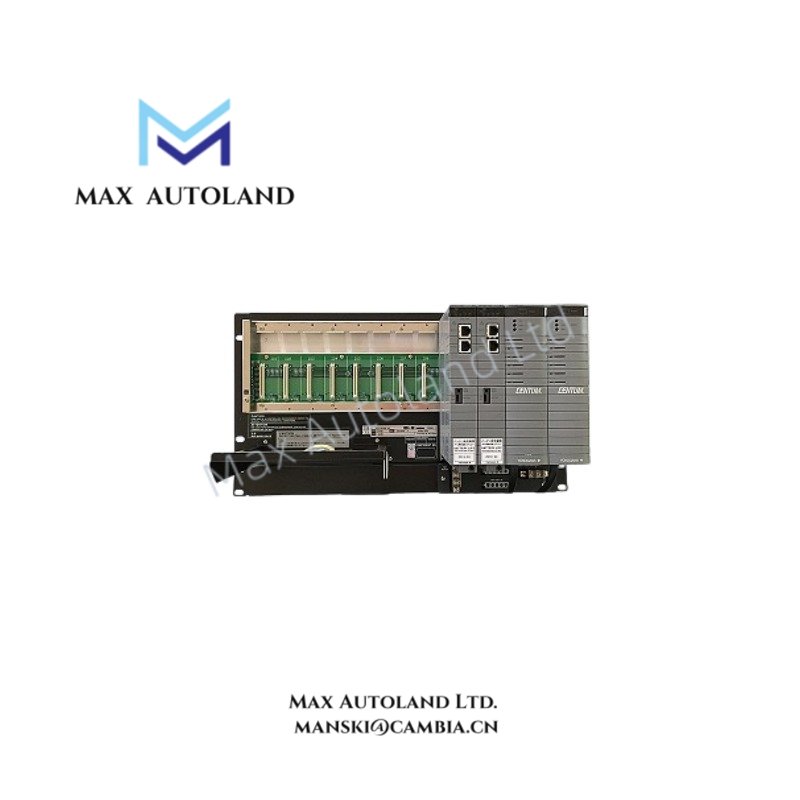

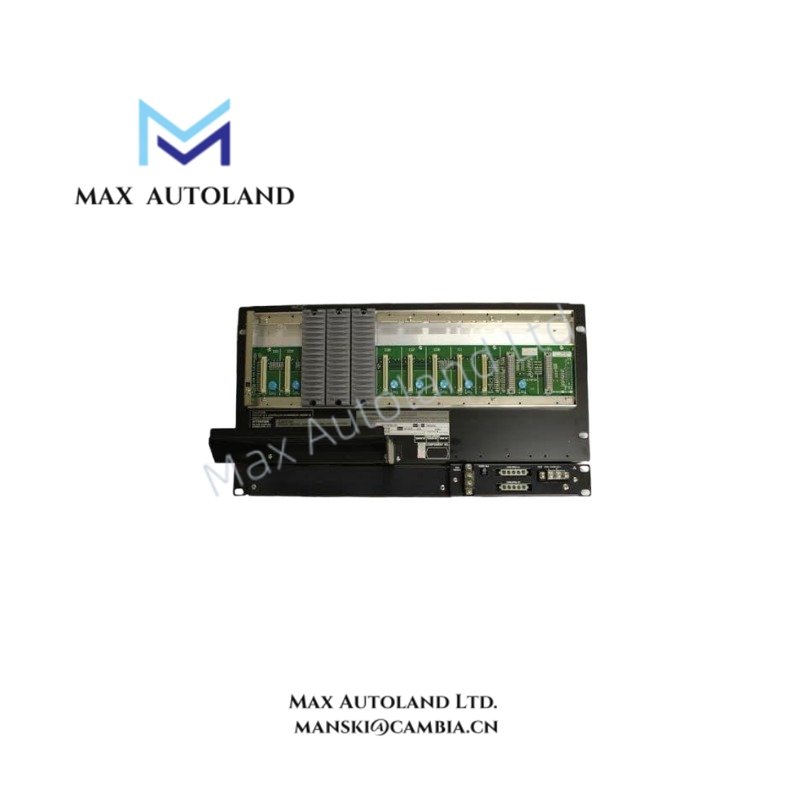

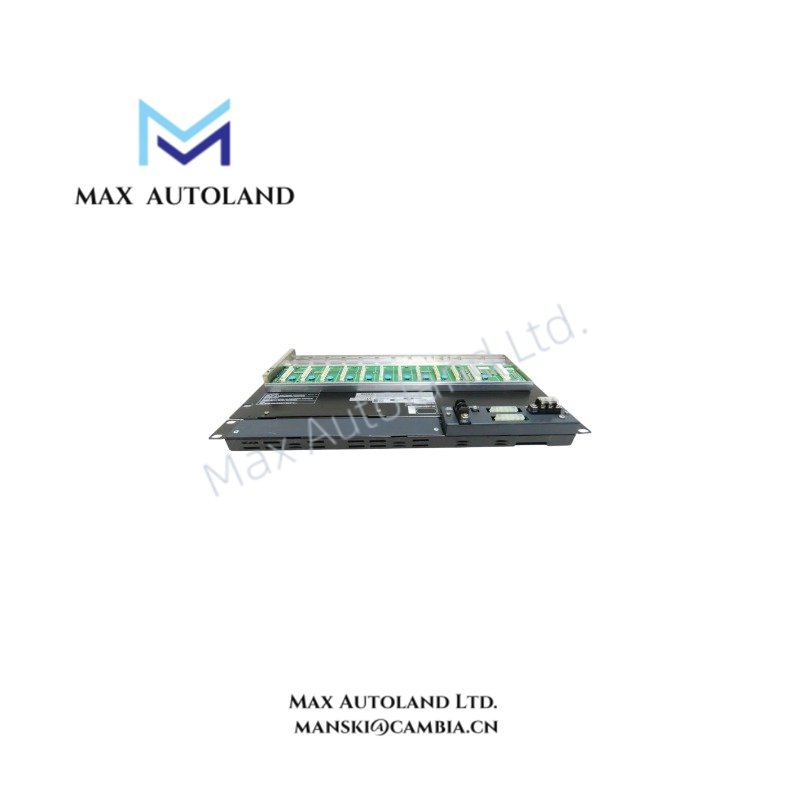

Yokogawa AFG10D Duplexed Field Control Unit

Hardware Specifications

Yokogawa Process Control I/O Isolation and Fieldbus Execution Characteristics

Within Yokogawa DCS field architecture, the AFG10D executes channel-level process data conditioning and redundant path validation across V net/RIO communication layers. The module is typically integrated into channel-to-channel isolation topologies where analog and discrete signal domains are electrically separated to reduce loop interference. HART-compatible 4–20 mA loop conditioning and fieldbus synchronization behavior may be implemented at upstream I/O nodes, with cold junction compensation handled at terminal-level conversion points in mixed signal thermocouple applications. Duplexed operation ensures parallel data path consistency checking between redundant processing paths before controller-level forwarding.

Frequently Asked Questions

Q: Does the AFG10D support hot-swapping in a live V net/RIO rack configuration?
A: Field replacement is generally dependent on system cabinet design. In most configurations, removal requires controller-level I/O freeze and bus isolation prior to physical extraction.

Q: What is the expected backplane power loading behavior under duplex operation?
A: Power draw is distributed across redundant control paths. Load balancing is managed at system architecture level rather than module-level dynamic switching.

Q: Can firmware or logic configuration be updated without interrupting field I/O?
A: Update procedures depend on system redundancy state. In duplex mode, one processing path may be isolated while maintaining controlled I/O continuity through the active channel.

Field Installation Guidelines

Install the unit in a 19-inch rack enclosure with confirmed mechanical grounding to cabinet earth bus. Maintain separation between field signal wiring and power conductors to minimize induced noise on V net/RIO communication lines. Shielded cables should be grounded at a single termination point to avoid ground loop formation. Ensure breaker protection is installed according to upstream panel design, with correct fuse rating coordination between internal and external protection elements.

Suffix Breakdown & Model Matrix

AFG10D is referenced as a fixed model designation within the AFG10 duplexed field control unit series. No further officially documented suffix segmentation is provided in the supplied data.
