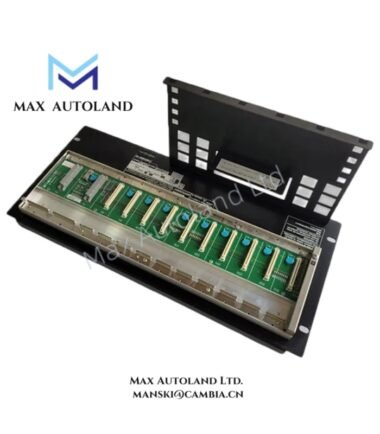

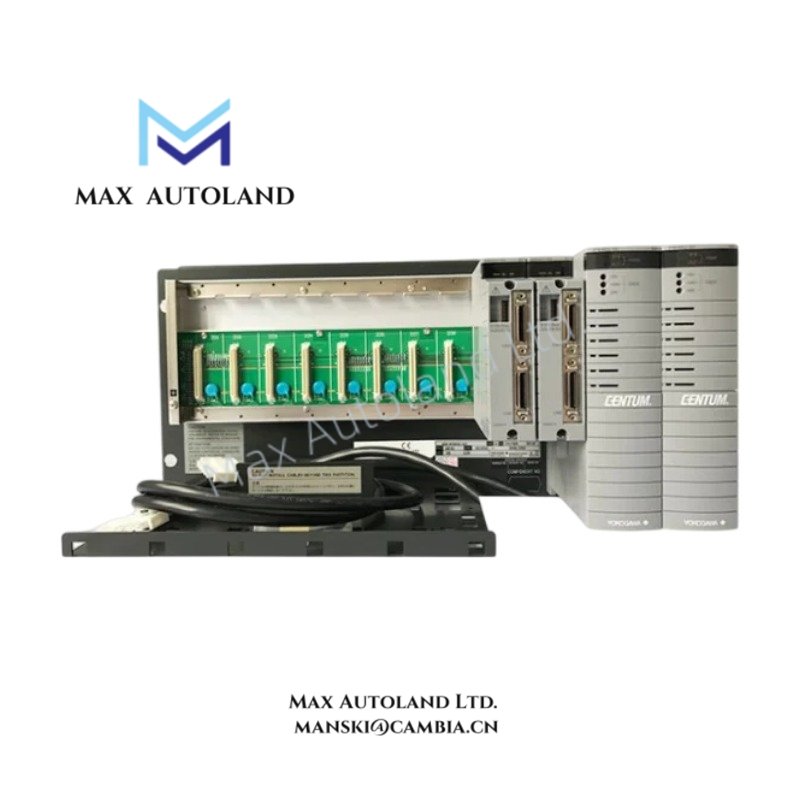

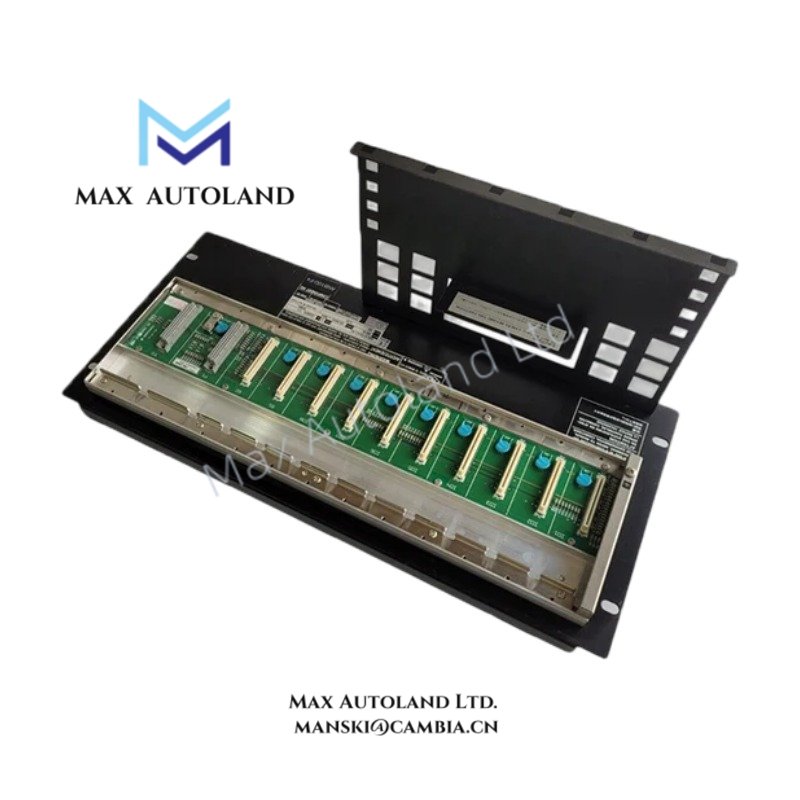

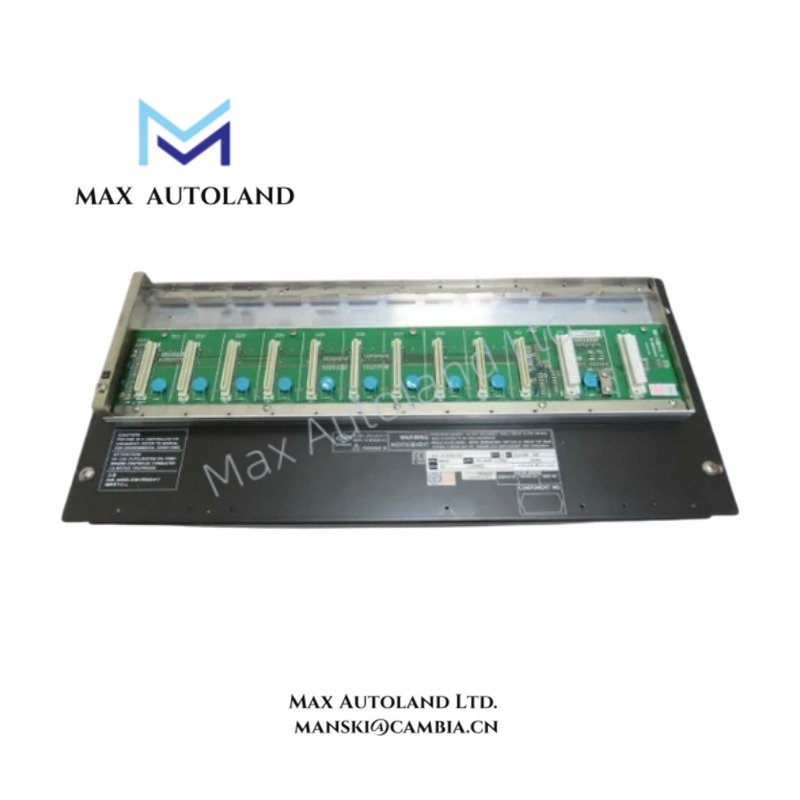

Duplexed Field Control Unit Yokogawa AFF50D-H41201

Hardware Specifications

Process Control Communication and Redundancy Behavior

The Yokogawa process control architecture implemented in the AFF50D-H41201 is aligned with dual-redundant field communication pathways, supporting continuous data exchange through Vnet and ESB bus layers. In typical DCS configurations, channel redundancy ensures deterministic data propagation even under single-path degradation scenarios.

A key characteristic of the Yokogawa control stack is its support for 4-20 mA signal conditioning and system-level integration with field instrumentation networks, ensuring stable analog-to-digital transition under distributed I/O conditions. Internal processing maintains synchronized execution states across redundant field control units, minimizing control divergence during switching events.

Frequently Asked Questions (FAQ)

Q: Does the AFF50D-H41201 support hot standby redundancy switching?
A: The unit is designed as a duplexed Field Control Unit with synchronized operation; switching behavior is managed through Vnet dual-redundant architecture without manual intervention.

Q: What is the maximum battery-backed memory retention time?
A: Main memory retention is supported for up to 72 hours using internal battery backup.

Q: Can ESB bus operate in single-redundant mode on this model?
A: No. For AFF50D-H41201, ESB bus interface operates in dual-redundant configuration only.

Field Installation Guidelines

The unit shall be installed in a 19-inch rack mounting structure with controlled grounding of signal reference points. Vnet and ESB cabling must be routed with separation from power lines to minimize electromagnetic coupling. Redundant communication lines should follow physically diverse routing paths.

Battery backup systems require minimum 48-hour recharge period after full discharge conditions. Power supply selection must match suffix-defined input range (AC or 24 VDC) prior to energization. Shield termination for fieldbus wiring shall be completed at designated grounding terminals only.
