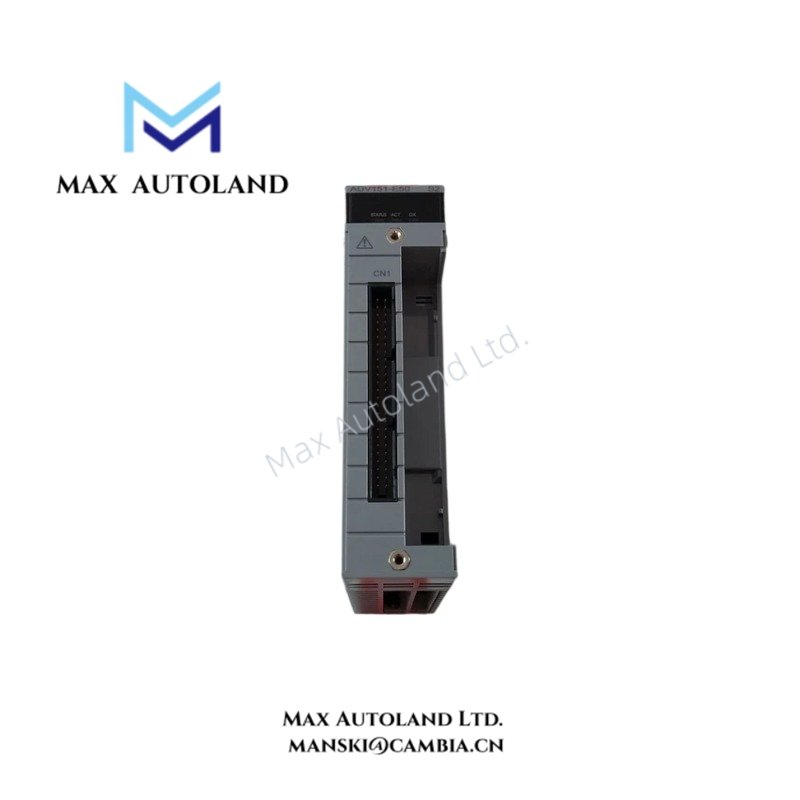

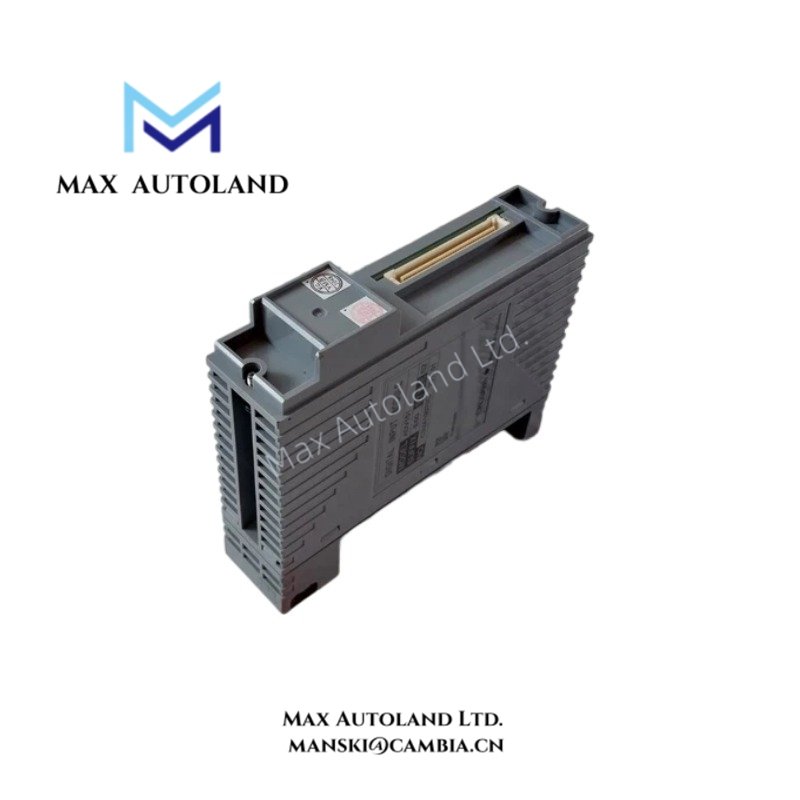

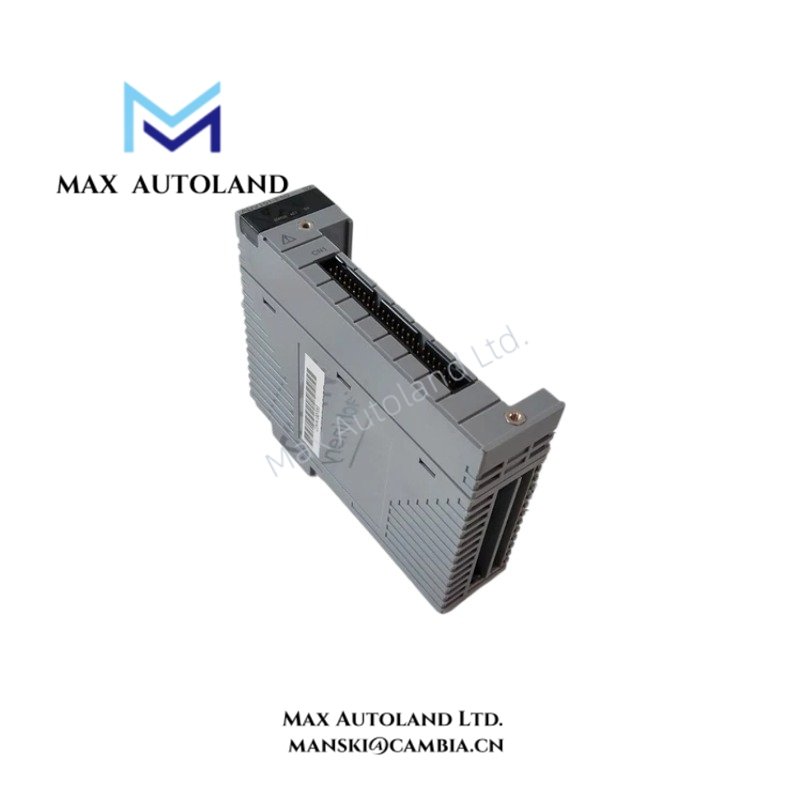

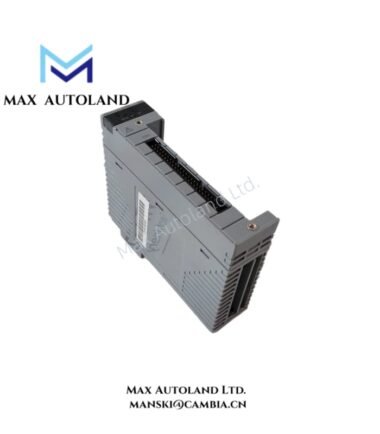

Yokogawa ADV151-E50 Digital Input Module

Technical Specifications

Function and Configuration

Digital input modules receive discrete field signals and make their status available to the control system. These signals can represent binary conditions, such as the ON/OFF state of a field contact or equipment status. The exact input voltage, channel count, isolation method, and input response time for the ADV151-E50 are not specified in the supplied information.

The source also describes configurable point modes used across digital modules. These include Status Input (SI), Pushbutton Input (PB), Status Output (SO), Pulse Width Output (PW), and Time-Proportioning ON/OFF Output (TP). However, this general function-assignment information does not confirm that every listed mode is supported by the ADV151-E50.

Frequently Asked Questions

Q: Which Yokogawa units support the ADV151-E50?

A: The documented installation units include ANB10S and ANB10D ESB Bus Node Units, ANB11S and ANB11D Optical ESB Bus Node Units, and AFV30S, AFV30D, AFV40S, and AFV40D Field Control Units.

Q: What input voltage and channel count does the ADV151-E50 support?

A: The supplied information does not specify the rated input voltage or number of input channels. Confirm these parameters against the exact ADV151-E50 hardware specifications before selecting the module or preparing field wiring.

Q: Does the ADV151-E50 support pulse width and time-proportioning output modes?

A: The supplied function-assignment section lists these modes for digital modules in general, but it does not establish their availability on the ADV151-E50. Verify the supported functions for this exact model before using it in an output application.
