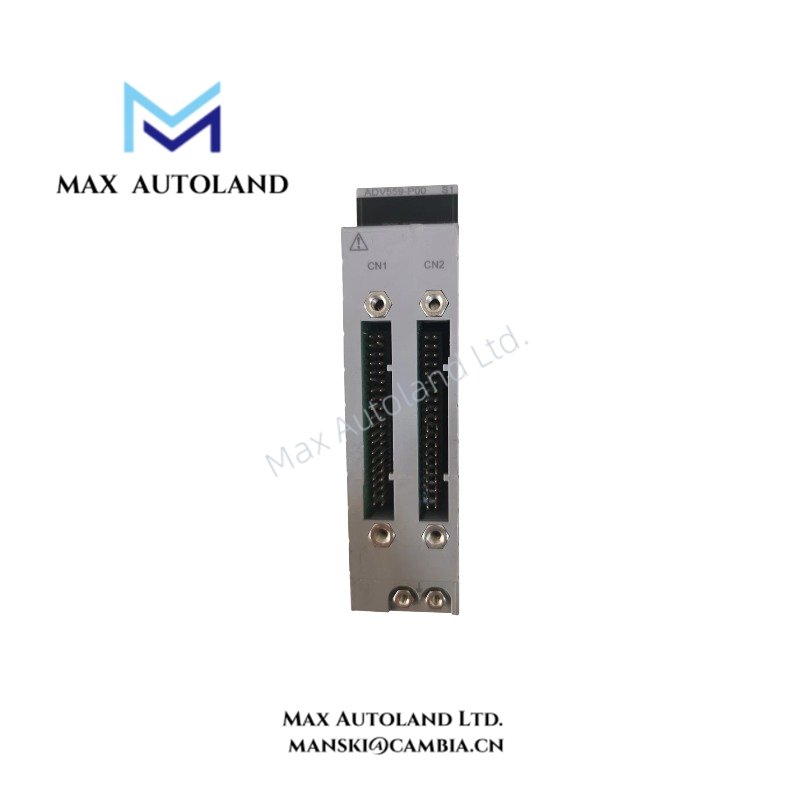

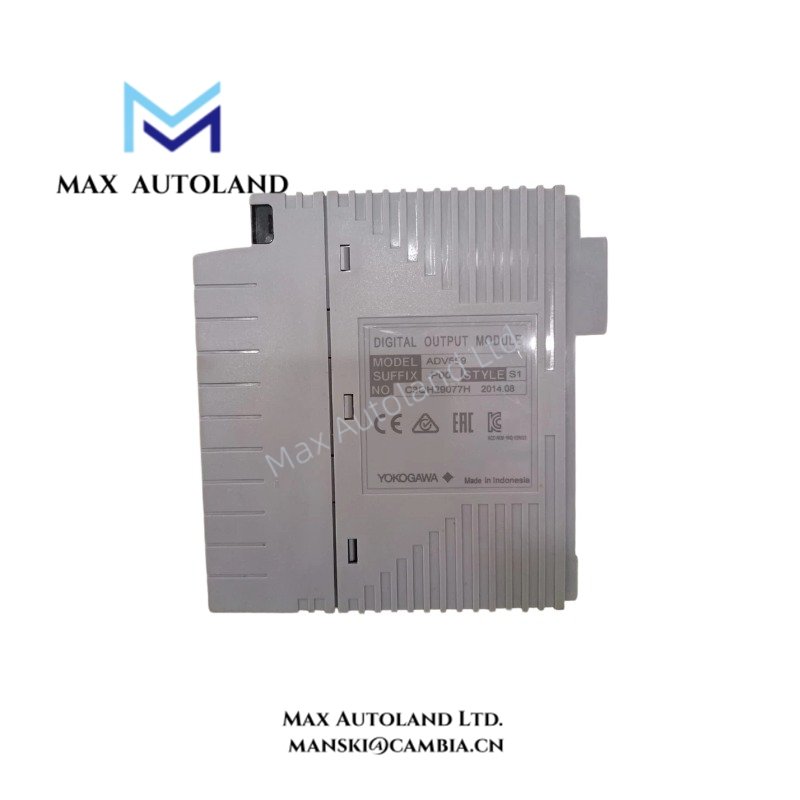

Overview
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV559-P00 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| Number of Output Channels | 32 |
| Channel Configuration | Isolated channels |
| Output Type | Transistor contact |
| Load Type | Resistive and inductive loads |
| Maximum Load Rating | 30 VDC, 100 mA |
| Response Time | 16 ms or less |
| Pulse Width / Time-Proportional Output Setting | 8 ms to 7200 s |
| ON/OFF Delay Time | 8 ms, with up to 1 ms additional delay |
| Power Consumption | 570 mA at 5 VDC |
| Compatible I/O Type | ST4 compatible |
| Connection Type | Dedicated KS2 cable |
| Approximate Weight | 0.3 kg |
| Estimated Shipping Dimensions | 5.1 x 12.7 x 12.7 cm |
Output Functions and Configuration
The ADV559-P00 provides 32 isolated digital output channels for switching field signals. Its transistor-contact outputs support resistive and inductive loads within the specified voltage and current limits. When selecting connected devices, verify that their operating current and voltage remain within the module’s output ratings.
The module includes pulse width and time-proportional output functions. The configurable time range is 8 ms to 7200 s, allowing timed output operation where required by the control application.
System Compatibility and Connection
The ADV559-P00 can be installed in the following Yokogawa units, as specified in the supplied hardware information:
- ESB Bus Node Unit: ANB10S and ANB10D
- Optical ESB Bus Node Unit: ANB11S and ANB11D
- Field Control Unit: AFV30S, AFV30D, AFV40S and AFV40D
The module uses a dedicated KS2 cable and is identified as ST4 compatible. Confirm the installed system configuration and cable requirements before replacement.
Frequently Asked Questions
Q: How many output channels does the ADV559-P00 provide?
A: It provides 32 isolated digital output channels. Each channel switches a field output through a transistor contact.
Q: What are the output load limits of the ADV559-P00?
A: The specified maximum load rating is 30 VDC at 100 mA for resistive and inductive loads. Check the connected device’s electrical requirements before use.
Q: Which Yokogawa units support the ADV559-P00?
A: The supplied specifications identify the ANB10S, ANB10D, ANB11S, ANB11D, AFV30S, AFV30D, AFV40S and AFV40D units. Verify the specific system configuration and KS2 cable requirements before installation.
