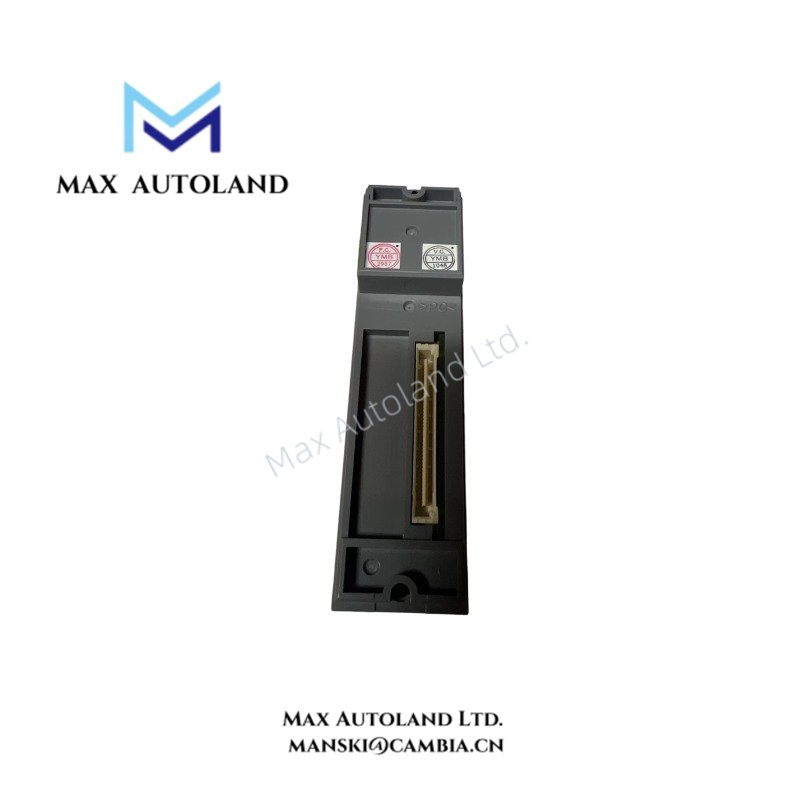

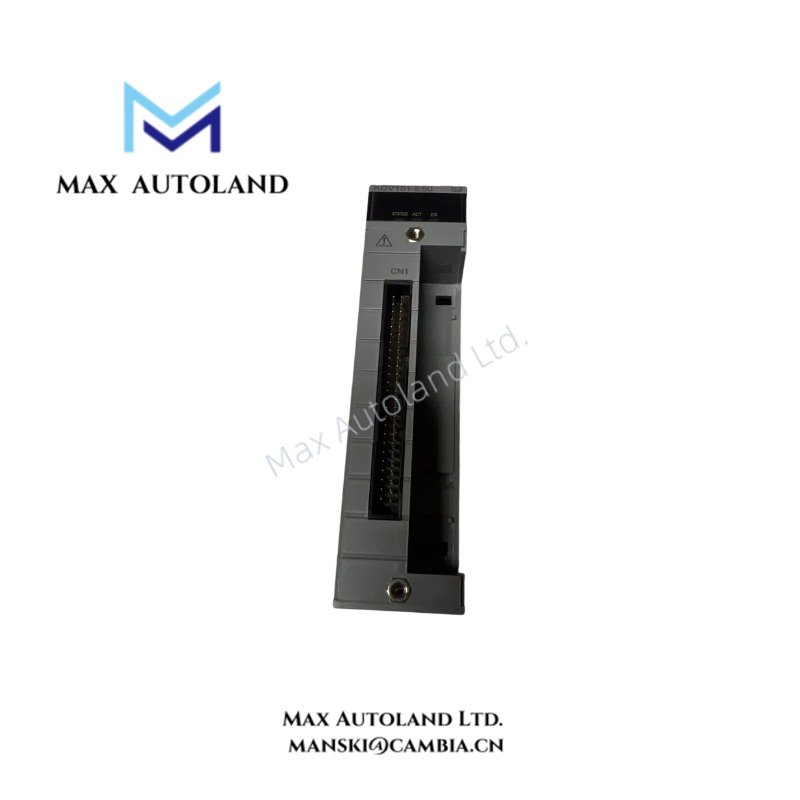

Overview
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151 |
| Brand | Yokogawa |
| Product Number | ADV151-E50/D5A00 |
| Product Type | Digital Input Module |
| Number of Channels | 32 |
| Rated Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Rated Input Current | Approximately 4.1 mA |
| SOE Capture | Supported |
| Cable Interface | KS cable interface adapter for 32-channel digital connections |
| Weight | Approximately 1.5 kg |
Input Signal and Event Capture
The ADV151 accepts discrete field signals representing two states, such as ON and OFF. The specified ON and OFF voltage thresholds help determine whether an incoming signal represents an active or inactive state. Signals between the stated thresholds require verification against the applicable input characteristics before use.
The SOE capture function supports Sequence of Events recording. This capability helps control-system personnel analyze the order of discrete state changes during event investigation. The supplied information does not specify the event timestamp resolution or recording capacity.
Ordering Configuration
The complete ordering code identifies the module and its selected configuration.
| Code | Description |
|---|---|
| ADV151 | 32-channel digital input module |
| -E | With SOE capture |
| /D5A00 | With KS cable interface adapter for 32-channel digital connections |
Check the complete model number against the installed system configuration before ordering a replacement. The cable interface option is relevant when confirming the field wiring arrangement.
Frequently Asked Questions
Q: How many digital input channels does the ADV151-E50/D5A00 provide?
A: It provides 32 digital input channels with a rated input voltage of 24 V DC.
Q: Does the ADV151-E50/D5A00 support SOE capture?
A: Yes. The -E suffix identifies the SOE capture configuration. Confirm the required event-recording characteristics against the applicable system documentation.
Q: What does the /D5A00 option specify?
A: It specifies a KS cable interface adapter for 32-channel digital connections. Verify the required cable and interface arrangement before installation.
