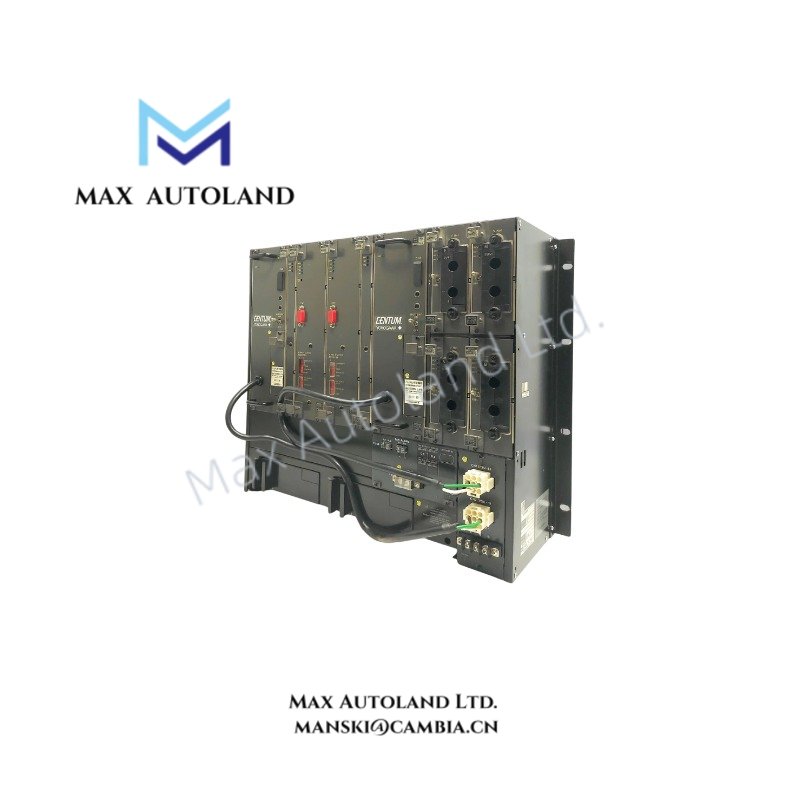

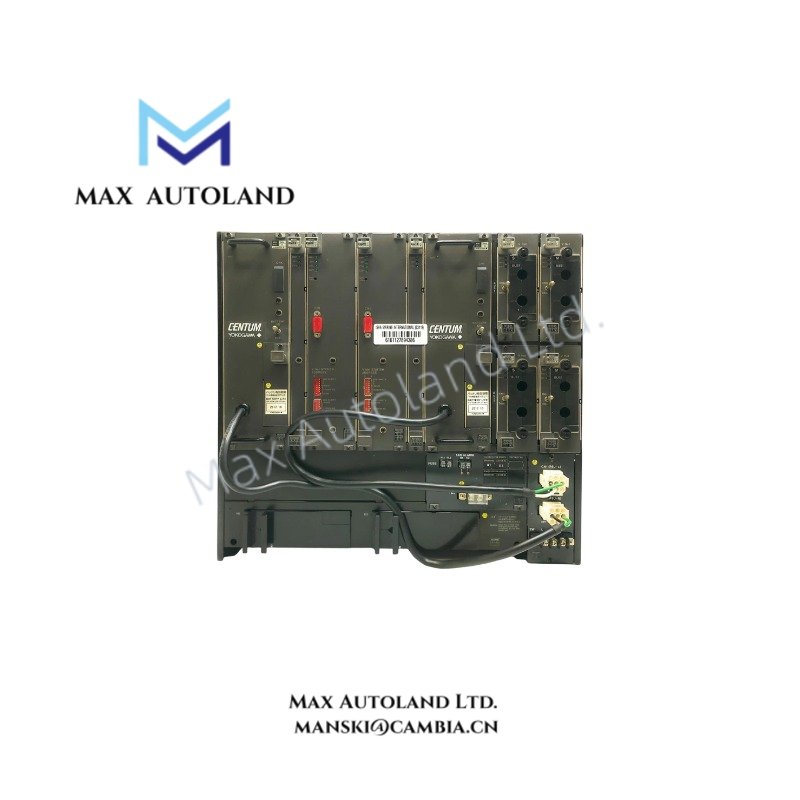

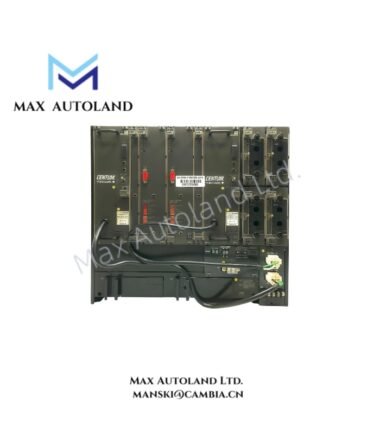

Yokogawa ABC11D-Q8143 Dual-Redundant Bus Converter

Suffix Breakdown & Model Matrix

• Model Series: ABC11D Dual-Redundant Bus Converter
• Q8143: Order-specific configuration identifier (no further structural decomposition defined in source data)
• Power Supply Variants (suffix dependent):
  • 100-120 VAC
  • 220-240 VAC
  • 24 VDC
• Network Domain Options (series dependent):
  • Vnet (10BASE-5 / 10BASE-2)
  • VLnet
  • HF bus
  • RL bus

Hardware Specifications

Process Control Bus Interfacing Characteristics

The ABC11D-Q8143 implements redundant bus coupling logic across CENTUM VP communication layers with deterministic frame handling across heterogeneous network domains. Communication routing is executed between Vnet HIS nodes and legacy CENTUM CS / CS3000 stations via dedicated bus conversion pathways.

Channel-level redundancy management ensures continuous signal propagation during single-path degradation conditions. CPU supervisory output contact provides external fault indication via dry contact signaling. Multi-bus compatibility includes 10BASE-5 and 10BASE-2 Vnet variants, supporting legacy Ethernet-based process control segmentation.

Frequently Asked Questions

Q: Does the ABC11D-Q8143 support hot-swappable replacement?
A: No hot-swap capability is defined in the provided hardware specification. Replacement requires controlled shutdown and rack isolation to avoid Vnet communication disruption.

Q: How is redundancy handled between dual bus paths?
A: Redundant operation is implemented at hardware bus converter level, maintaining parallel communication paths across supported network domains with automatic failover behavior.

Q: Can multiple power supply types be used simultaneously?
A: No. Only one power supply configuration (AC or DC variant) is selected per installed unit based on suffix code.

Field Installation Guidelines

• Install unit in a standard 19-inch industrial control rack with mechanical fixation on both mounting ears
• Ensure segregation of Vnet / VLnet / HF / RL bus cabling to prevent cross-domain signal interference
• Maintain proper grounding of chassis frame to control cabinet protective earth
• Use shielded twisted pair or coaxial cabling as required by selected Vnet topology (10BASE-5 or 10BASE-2)
• Verify CPU status contact wiring is isolated from power conductors to avoid false fault indication
• Power input selection must match suffix-rated supply before energization
