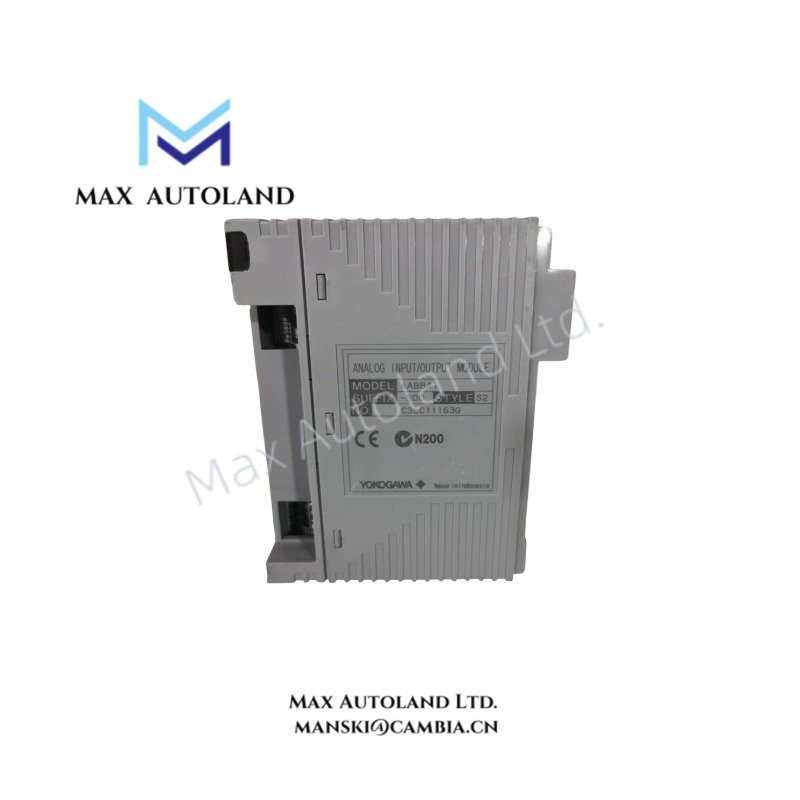

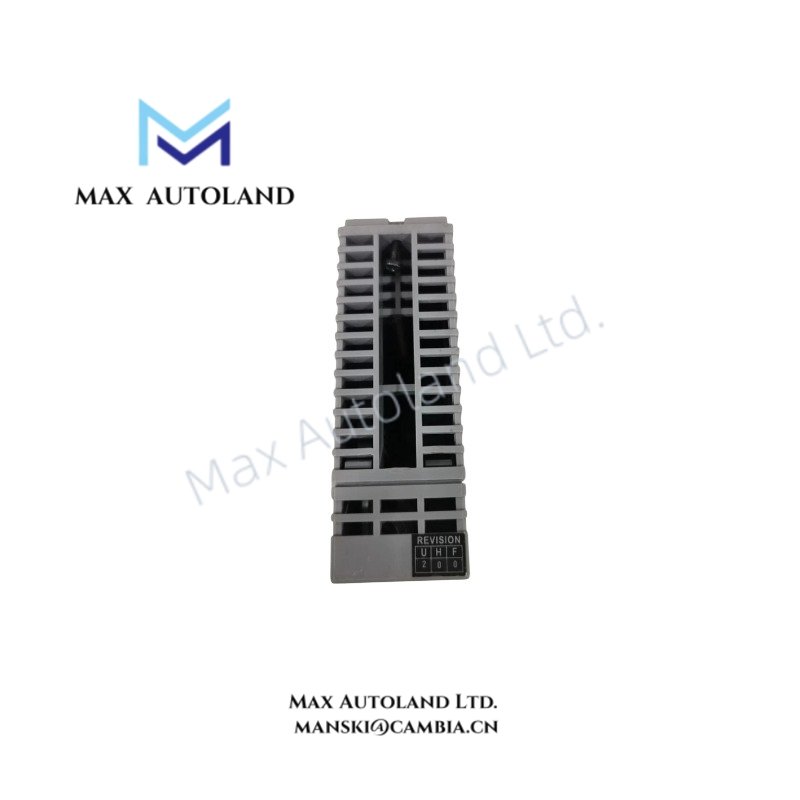

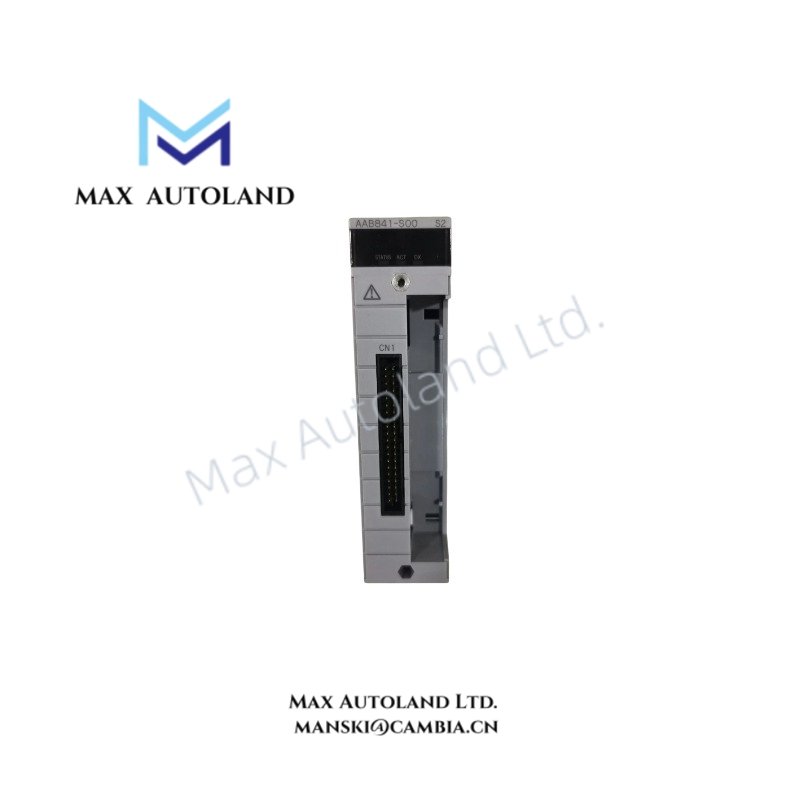

Yokogawa AAB841-S00 Analog I/O Module

Suffix Breakdown & Model Matrix

Model designation AAB841-S00 defines the base analog I/O hardware platform. The suffix structure is interpreted as follows based on provided configuration data:

• AAB841: Base analog I/O module family
• -S: Standard configuration type
• 00: Basic version without extended protection options
• /V4A00: Interface adapter variant associated with VM2-compatible terminal/adaptation structure (ATV4A-00 family reference)

Optional configurations in the series include pressure clamp terminal blocks (A4S00, A4D00 variants), surge protection variants (A4S10, A4D10), and connector cover options for MIL cabling (ICCC01).

Hardware Specifications

Yokogawa Channel-to-Channel Signal Handling Architecture

The AAB841-S00 platform is implemented within Yokogawa distributed control systems using multi-channel analog acquisition architecture. Signal conditioning supports direct interfacing with 4-20 mA current loops and voltage-based instrumentation inputs.

Channel mapping is executed through internal backplane routing with deterministic scan timing. The module design supports loop-level termination without external signal multiplexing.

Channel-to-channel electrical separation is implemented at board-level layout, minimizing cross-interference between simultaneous analog acquisition paths. The I/O structure is optimized for high-density loop termination within redundant controller configurations.

Frequently Asked Questions

Q: Does the AAB841-S00 support hot-swapping in redundant configurations?
A: The module supports redundancy architecture; however, field replacement requires backplane compliance state and controlled system synchronization prior to insertion or removal.

Q: What is the analog signal range supported per channel?
A: The module is designed for standard industrial analog ranges including current loop (typically 4-20 mA) and voltage input modes depending on system configuration.

Q: Can the module operate in dual-redundant I/O setups?
A: Yes. The AAB841-S00 is designed for dual-redundant configuration when deployed within compatible Yokogawa I/O base units.

Field Installation Guidelines

• Ensure backplane power is fully isolated before module insertion or removal
• Verify correct seating alignment with I/O base connector rails
• Maintain shield grounding continuity for all analog field wiring
• Use twisted-pair cabling for 4-20 mA loop connections to reduce electromagnetic coupling
• Observe terminal torque limits defined by selected A4S00/A4D00 terminal block variant
• Do not mix non-compatible adapter interfaces within the same I/O bank
• Confirm redundancy synchronization state prior to live system replacement
