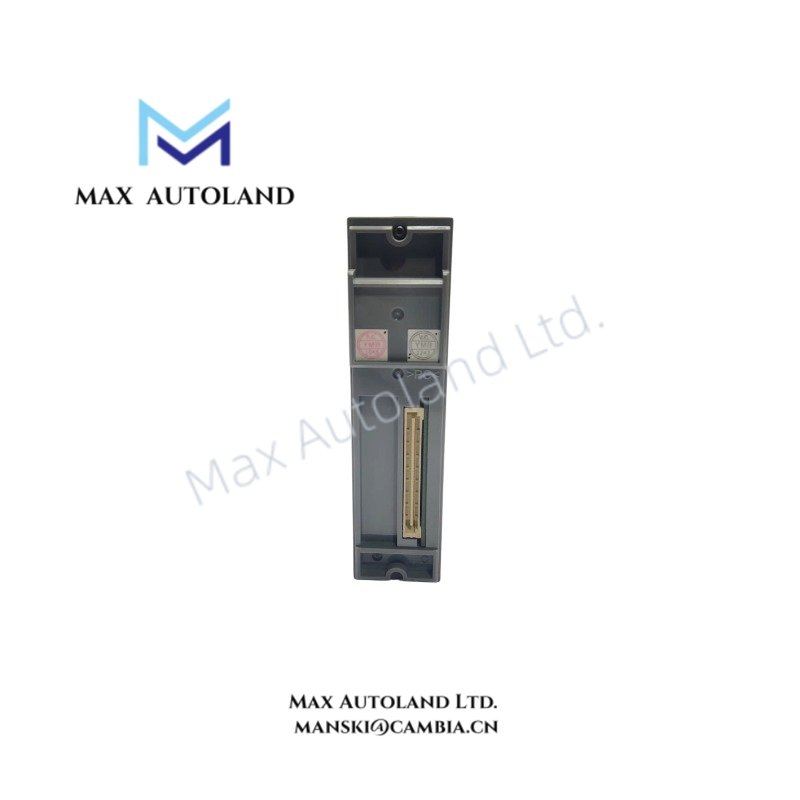

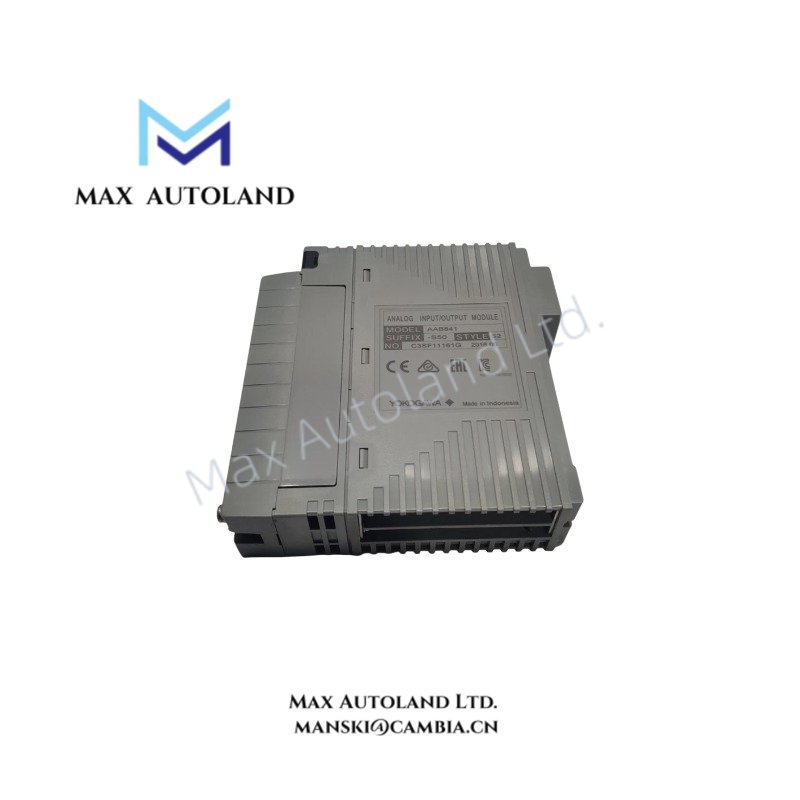

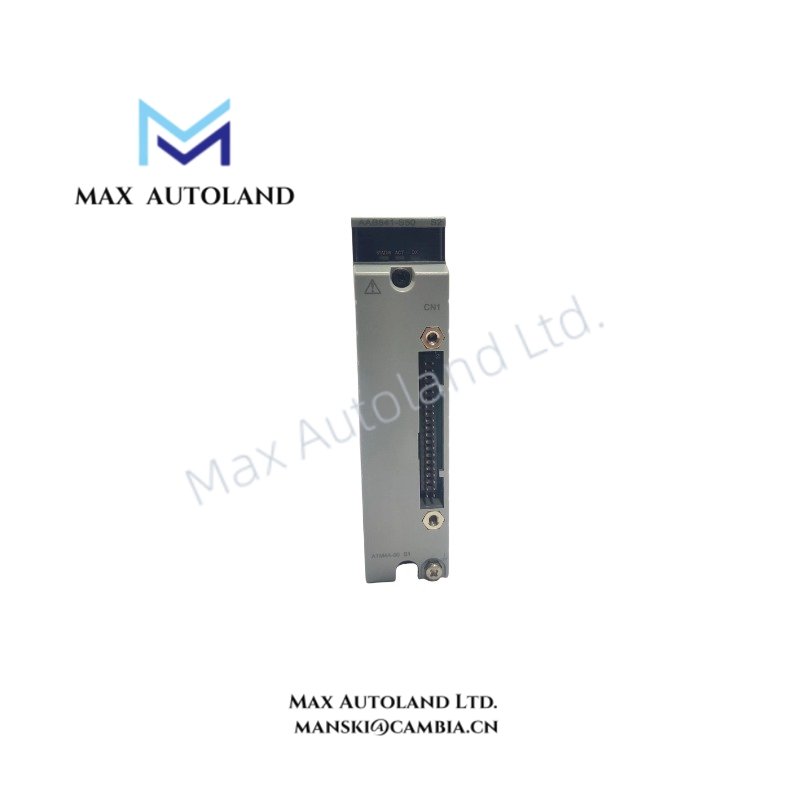

Yokogawa AAB841-S50/V4A00 Analog I/O Module

Suffix Breakdown & Model Matrix

• AAB841: Base analog I/O module family designation
• S50: Standard configuration identifier (no explosion protection configuration indicated in base data)
• V4A00: VM2 compatible adapter option (ATV4A-00 interface adapter integration)

Hardware Specifications

Channel-to-Channel Isolation Behavior in Yokogawa DCS Architecture

Within Yokogawa process I/O topology, the AAB841 series implements a non-isolated analog conversion structure where channel grouping is managed at module level rather than per-channel galvanic separation. Signal integrity is maintained through backplane synchronization and controlled impedance routing across the A/D and D/A conversion stages. In redundant deployments, module-level synchronization ensures output consistency across paired I/O nodes, while loop-level 4-20 mA transmission maintains deterministic current scaling independent of field load variation.

Frequently Asked Questions

Q: Does the AAB841 support hot-swap replacement in redundant configurations?
A: Hot-swap behavior depends on system rack configuration; redundant pairing allows maintenance switching at module level, but loop continuity must be validated at system backplane state.

Q: What is the backplane interaction behavior of the 8-channel I/O structure?
A: All 8 input and 8 output channels are synchronized through the DCS backplane interface, sharing timing and conversion scheduling rather than operating as independent isolated nodes.

Q: Can V4A00 adapter variants be interchanged with other Yokogawa adapter types?
A: Adapter compatibility is fixed to the VM2-compatible interface class; cross-series substitution requires electrical and mechanical interface verification at system integration level.

Field Installation Guidelines

Install the module in a standard Yokogawa I/O rack with secure backplane seating to ensure stable signal propagation across all 8 input and 8 output channels. Maintain correct mating force during insertion to avoid pin deformation at the VM2 adapter interface.

Shielded analog cabling should be terminated at designated grounding points to minimize loop interference in 4-20 mA output circuits. Avoid routing analog input wiring parallel to high-energy switching conductors to reduce induced noise coupling.

Verify redundancy slot alignment prior to energization. In dual redundant configurations, ensure both modules share identical firmware and hardware revision compatibility before system commissioning.
