Woodward 8923-1182 L-Series Service Cable

Overview

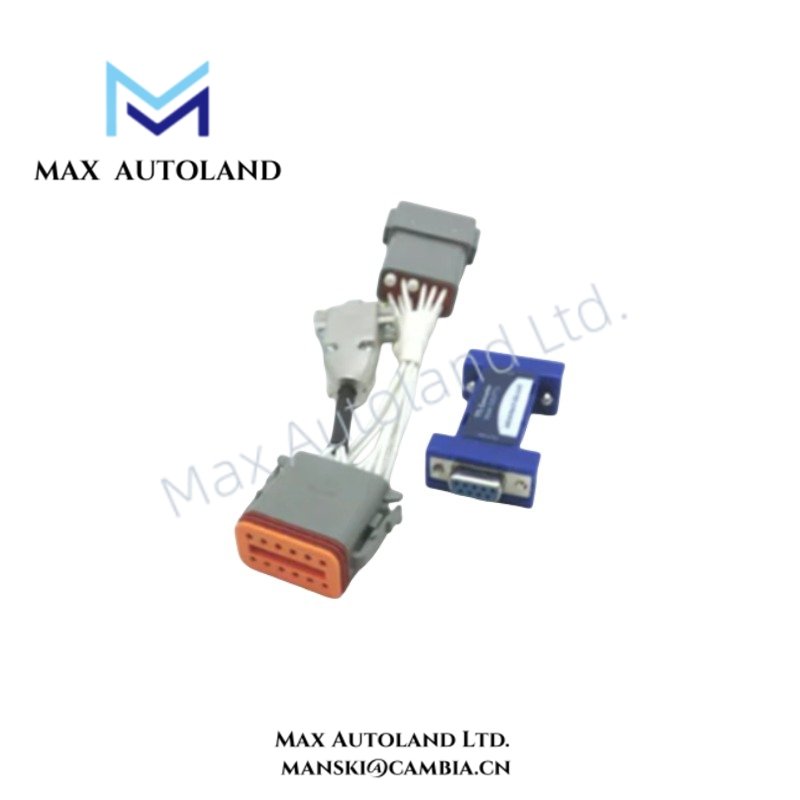

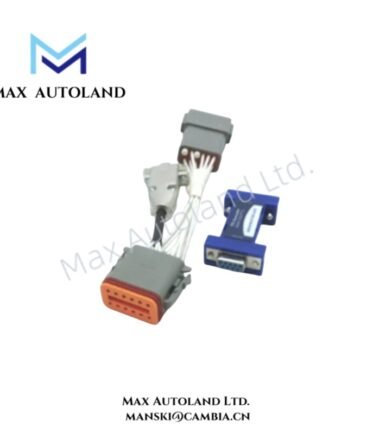

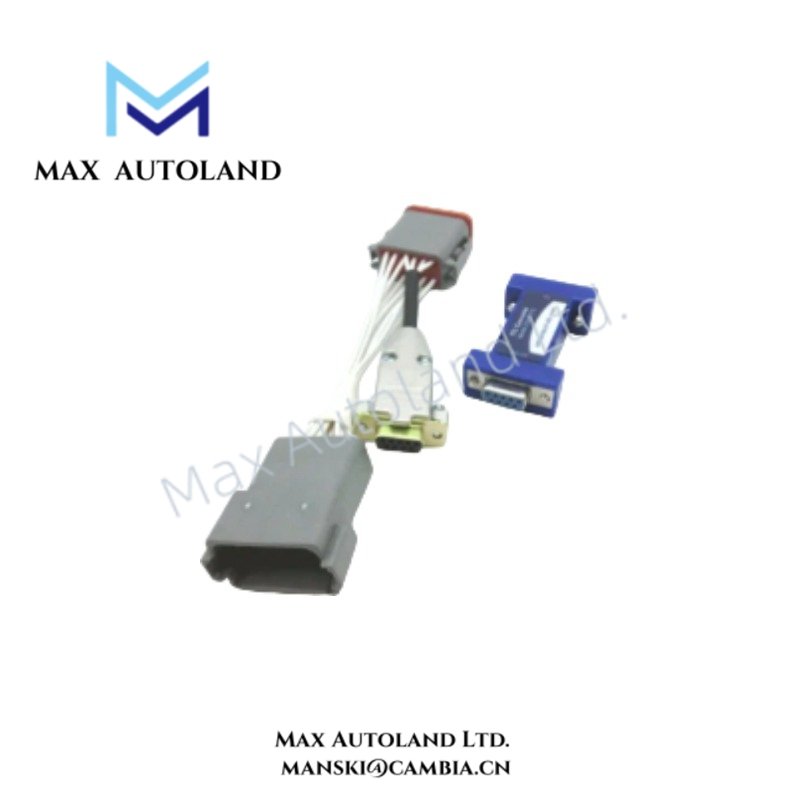

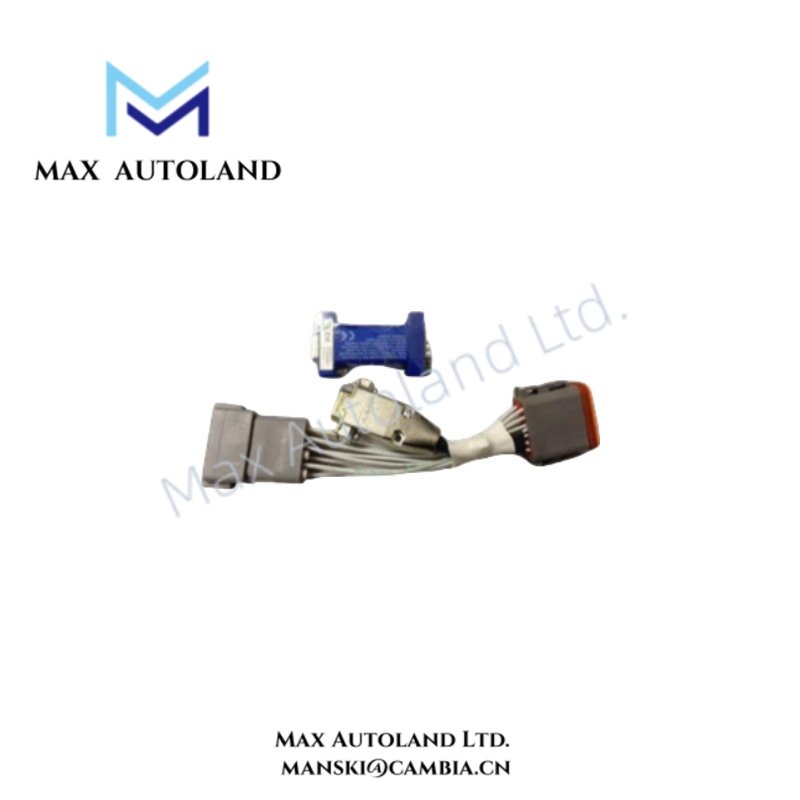

Configured for communication, programming, and diagnostic access in the Woodward L-Series control network, the Woodward 8923-1182 (8923-1182 L-Series Service Cable) provides direct physical and electrical connection between engineering tools and supported control hardware. It establishes the service interface required for configuration, parameter transfer, firmware maintenance, and diagnostic communication. Therefore, it functions as a dedicated hardware accessory rather than a process control module.

Suffix Breakdown & Model Matrix

The supplied documentation identifies 8923-1182 as a single catalog number. No official suffix matrix or ordering-code breakdown is specified by the manufacturer. Therefore, no suffix interpretation is provided.

Hardware Specifications

Actuator Loop Feedback Communication

The 8923-1182 serves as a passive communication interface within the Woodward L-Series platform. It transfers engineering data between the controller and service equipment without introducing control logic or signal conditioning. Consequently, communication integrity depends on proper connector engagement, cable shielding, and secure termination.

Because the cable does not participate in actuator loop execution, it does not influence governor response or closed-loop control performance directly. Instead, it supports controller configuration, parameter verification, diagnostic retrieval, and maintenance activities while preserving the electrical characteristics of the service interface.

Frequently Asked Questions

Q: Does the 8923-1182 perform signal conversion during communication?
A: No. The cable functions as a physical communication link. Signal processing and protocol execution remain inside the connected Woodward controller.

Q: Can the service cable remain permanently connected during normal machine operation?
A: The manufacturer documentation does not specify permanent installation. Service cables are generally connected only during commissioning, maintenance, firmware updates, or diagnostic procedures unless system documentation states otherwise.

Q: Does the cable require an external power supply?
A: No. The 8923-1182 is a passive hardware accessory and does not consume operating power independently.

Field Installation Guidelines

• Verify that the connector type matches the designated service port before connection.
• Route the cable separately from high-current motor and inverter power wiring whenever practical.
• Avoid excessive bending, twisting, or tensile loading near connector terminations.
• Inspect connector pins before installation to prevent communication faults caused by mechanical damage.
• Disconnect the cable by gripping the connector body instead of pulling on the cable jacket.
• Keep connector contacts clean and dry to reduce contact resistance and intermittent communication.
• Follow the grounding and shielding practices specified for the associated Woodward L-Series controller.
