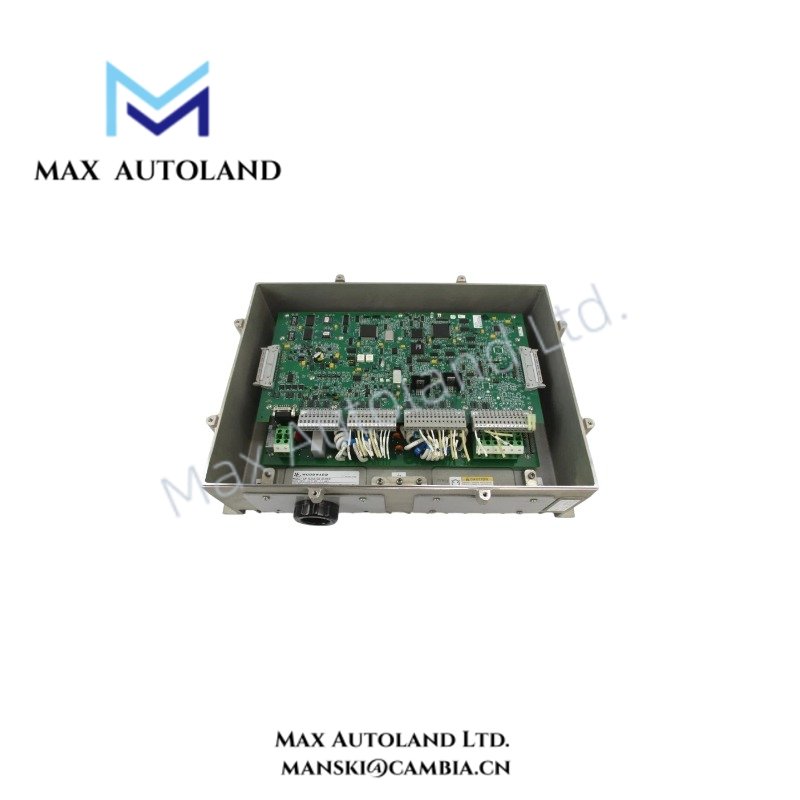

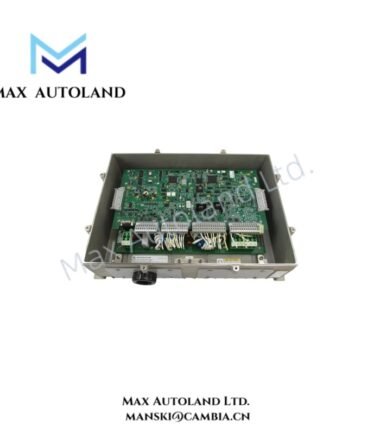

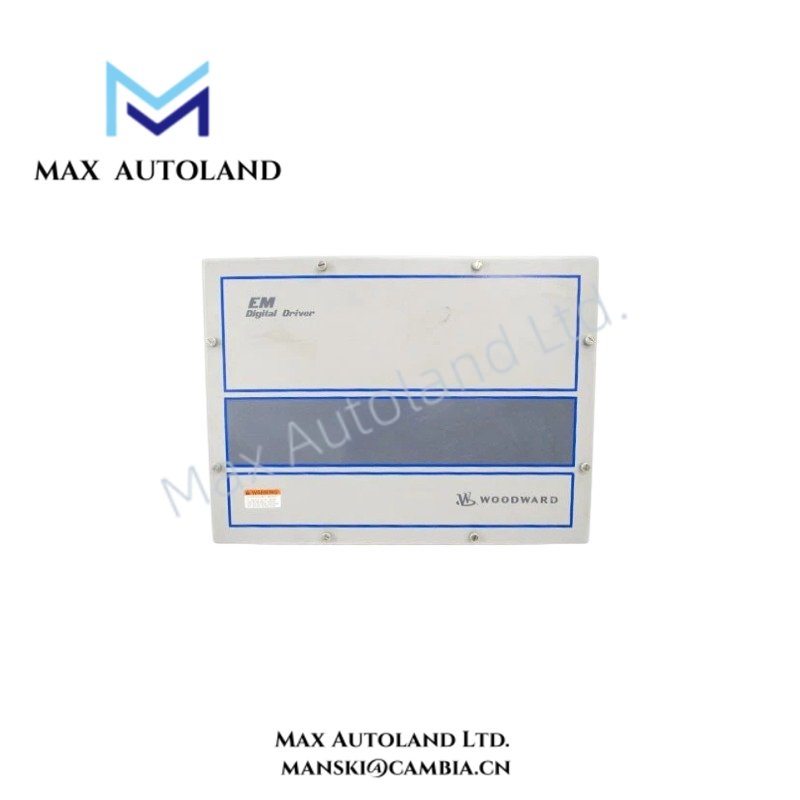

Woodward 8200-177 EM and LQ Digital Driver

Overview

Configured for actuator position control in Woodward EM and LQ control systems, the Woodward 8200-177 (8200-177 EM and LQ Digital Driver) provides direct physical and electrical execution for proportional actuator command processing and feedback regulation.

Hardware Specifications

Actuator Loop Feedback Response and Digital Drive Control

The 8200-177 applies model-based control algorithms to regulate EM actuator and LQ valve position commands. The driver processes position demand signals from a master controller and adjusts actuator output based on feedback response characteristics.

Furthermore, the unit manages actuator load variations caused by changing inertia and friction conditions. The closed-loop control structure maintains proportional position execution for variable geometry valves, steam valves, gas valves, water valves, and flow control valve applications.

The driver architecture supports actuator loop feedback response analysis, signal scaling, and dynamic output regulation. Therefore, system commissioning can adjust control parameters according to the connected actuator mechanical characteristics.

Frequently Asked Questions

Q: What type of actuator signals does the Woodward 8200-177 process?
A: The unit processes position demand signals through a 4-20 mA interface and drives EM or LQ actuator outputs using closed-loop position control.

Q: Which communication interfaces are available for configuration and monitoring?
A: The 8200-177 provides RS-232 and RS-485 communication interfaces. RS-232 supports PC connection through the Servlink protocol and DIP software, while RS-485 supports control system communication.

Q: Can the 8200-177 operate with different actuator load conditions?
A: Yes. The driver uses control algorithms that compensate for actuator load inertia and friction variations during operation.

Field Installation Guidelines

• Install the digital driver in a panel environment that provides adequate protection from dust, moisture, and mechanical vibration.
• Connect actuator power wiring separately from low-level signal wiring to reduce electrical interference.
• Use shielded cables for position demand and feedback signal connections where required by the installation design.
• Terminate cable shields according to the grounding practice defined for the control system to minimize noise coupling.
• Verify actuator polarity, feedback direction, and signal scaling before applying operational commands.

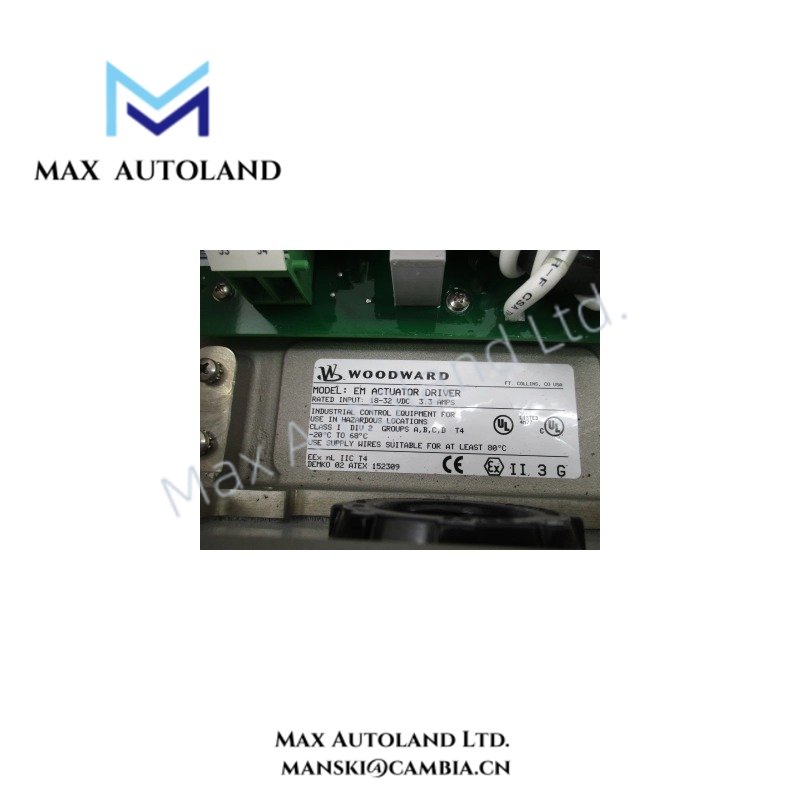

• Confirm the supply voltage range matches the installed 8200-177 configuration before energizing the unit.
• Maintain proper cable routing between RS-232, RS-485 communication lines, and high-current actuator wiring.
