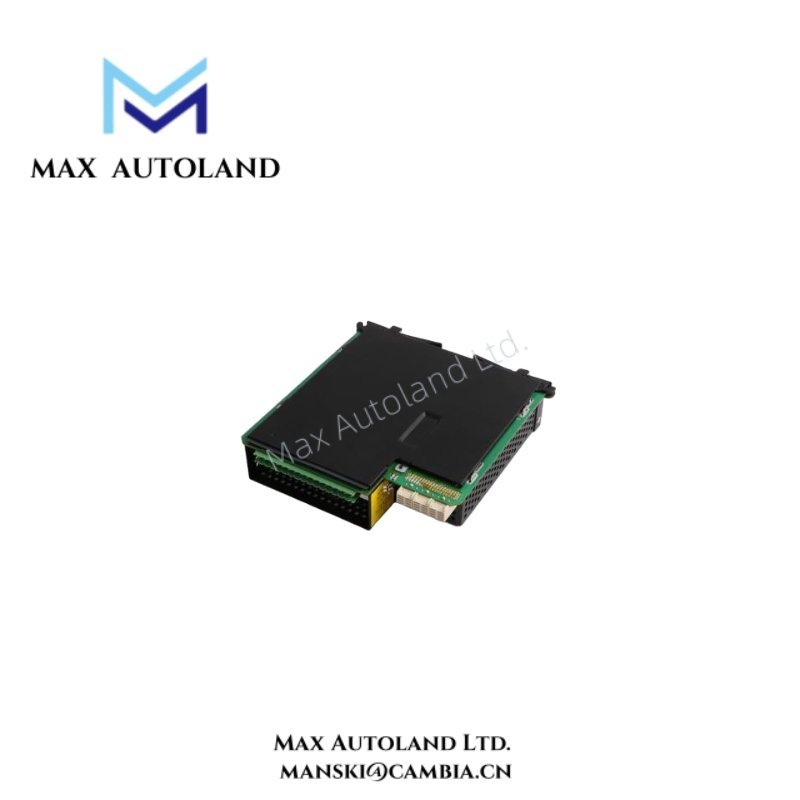

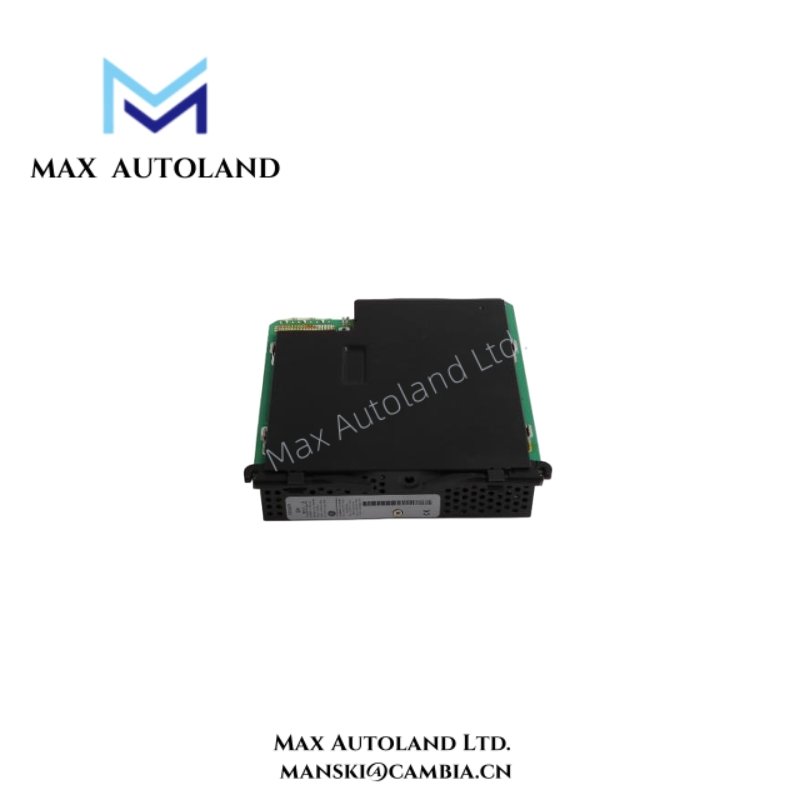

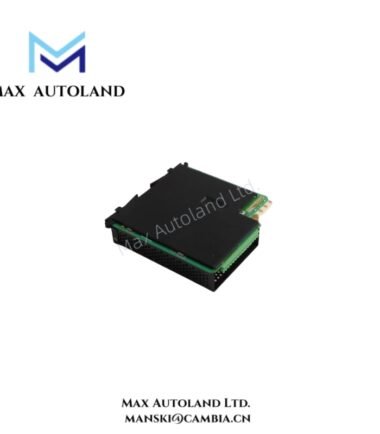

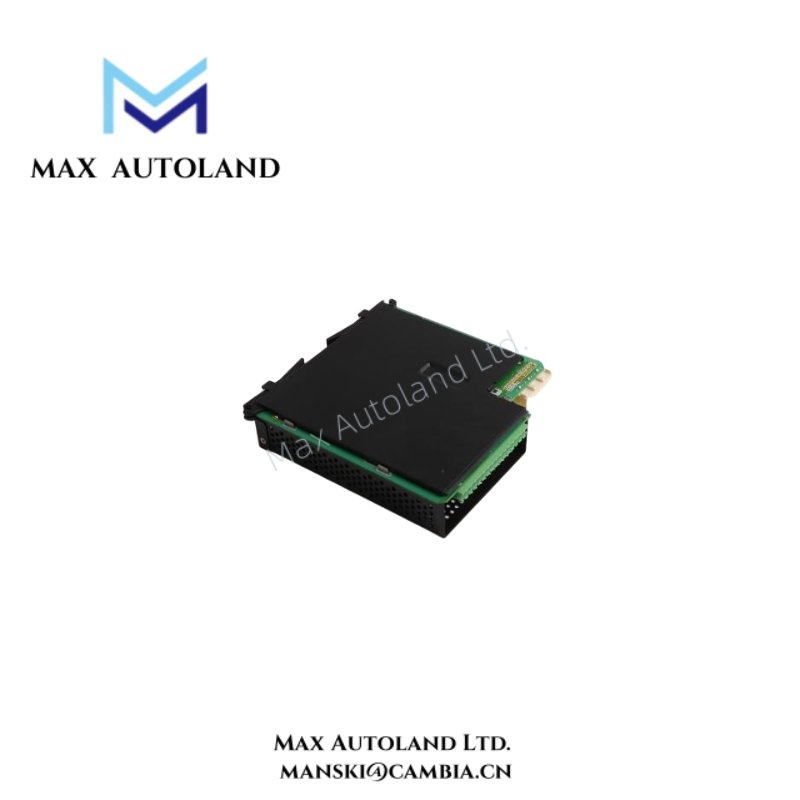

Overview
In addition, the UR-6UH features built-in diagnostic LEDs that clearly indicate module status, power conditions, and fault alerts, allowing rapid troubleshooting and enhanced system reliability. Furthermore, its robust design tolerates wide temperature ranges and electrical conditions, making it suitable for power substations and industrial automation networks.
Specification
| Parameter | Specification |
|---|---|
| Module Type | Digital I/O Module |
| Digital Inputs | 8 |
| Digital Outputs | 4 form-C relay outputs |
| Input Voltage Range | 24–125 VDC/VAC |
| Output Contact Rating | 5 A @ 125 VAC / 2 A @ 30 VDC |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5–95% non-condensing |
| Mounting | DIN rail or panel mount |
| Communication Interface | High-speed digital bus |
| Diagnostics | LED indicators for power, input/output, and fault status |
| Hot-Swappable | Yes |
| Isolation | Input/output channels isolated from each other and from module power supply |
| Response Time | <10 ms typical (input to output) |
| Module Dimensions | 120 mm x 22.5 mm x 90 mm (approx.) |
| Weight | 0.25 kg (approx.) |
| Compliance | CE, UL, IEC standards |
| Environmental Protection | IP20 (installed in panel or enclosure) |
| Life Expectancy | >10 years under recommended operating conditions |
FAQ
A1: Yes, the module can be replaced while the system remains powered, minimizing operational downtime.
Q2: How many inputs and outputs does the UR-6UH support?
A2: The module provides 8 digital inputs and 4 form-C relay outputs for versatile control.
Q3: Can the UR-6UH operate in extreme temperatures?
A3: Yes, it reliably operates from -40°C to +70°C with non-condensing humidity up to 95%.
Q4: Is the UR-6UH compatible with other UR Series modules?
A4: Absolutely, it integrates seamlessly with UR Series CPU, CT/VT, and power modules.
Q5: How does the module simplify troubleshooting?
A5: Built-in LED indicators provide real-time status and fault information for quick diagnostics.
