Overview

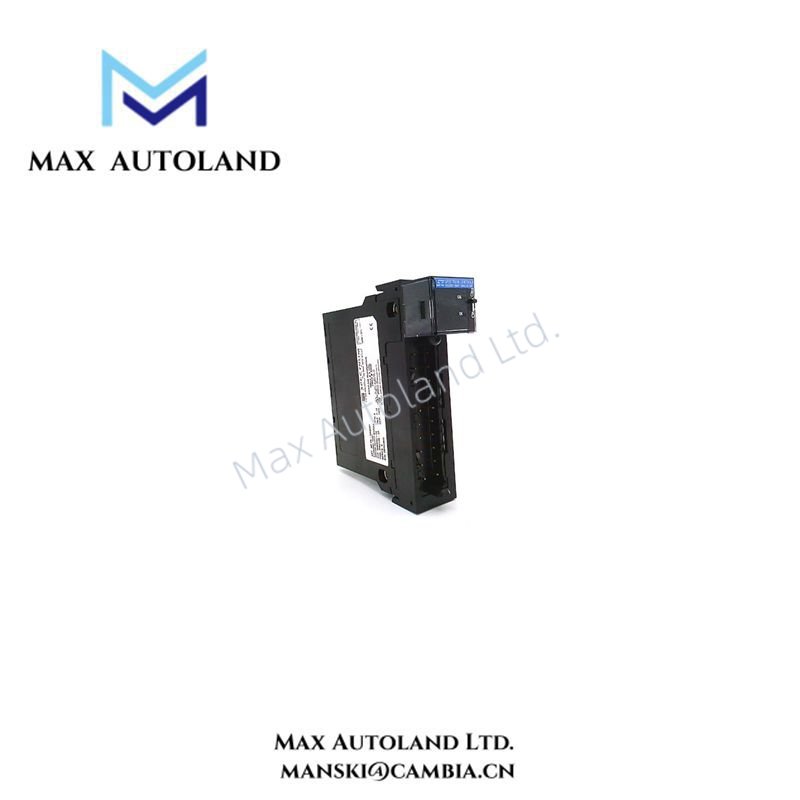

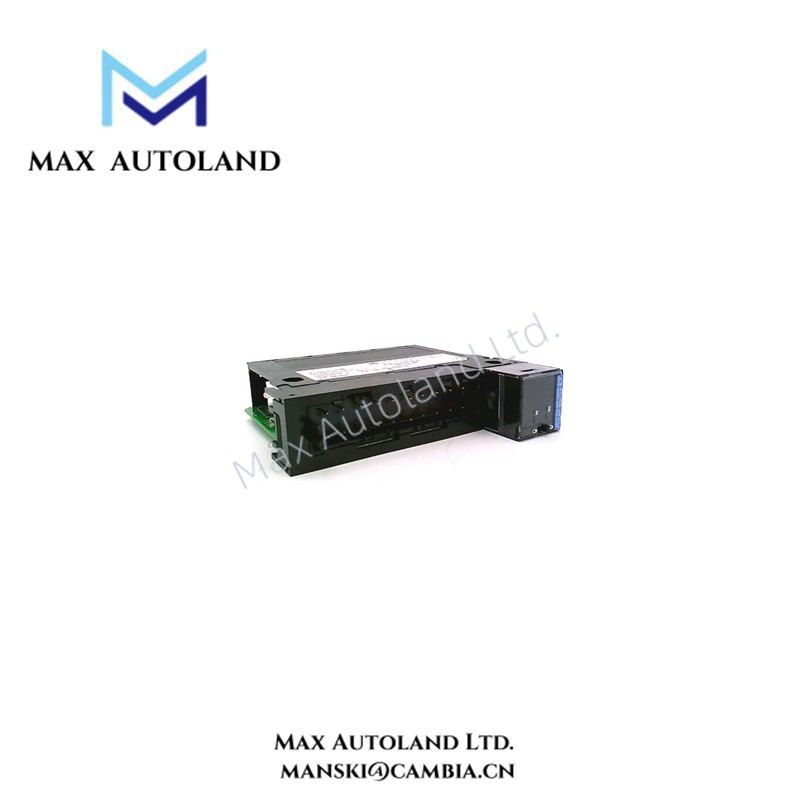

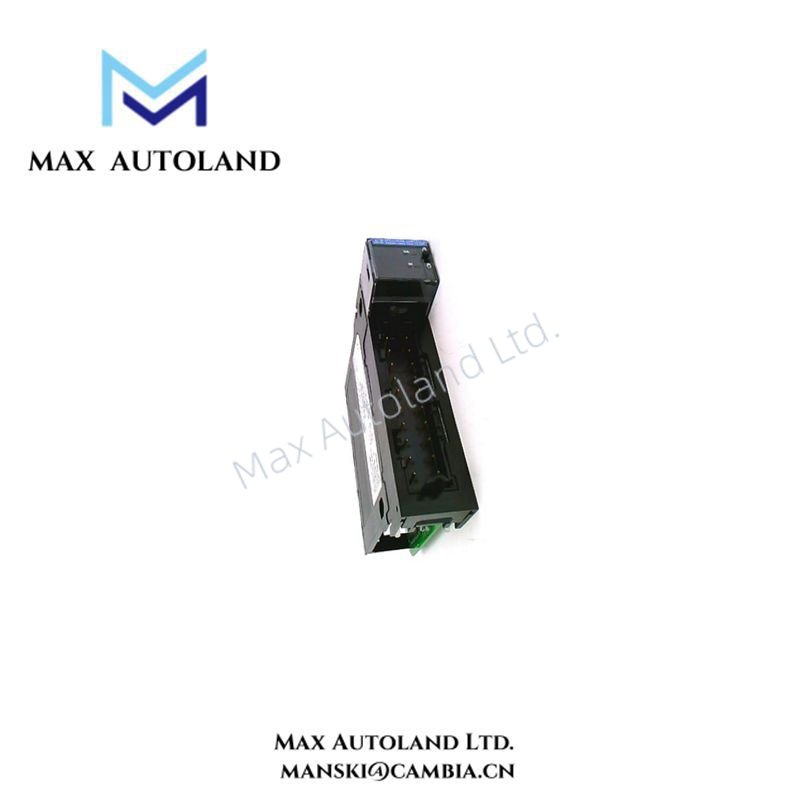

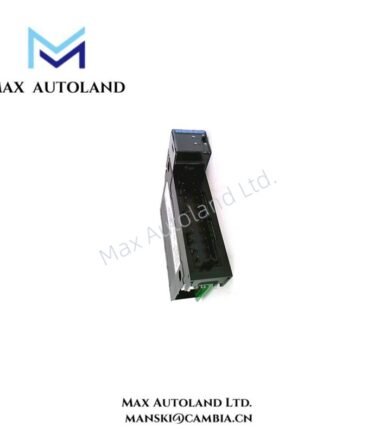

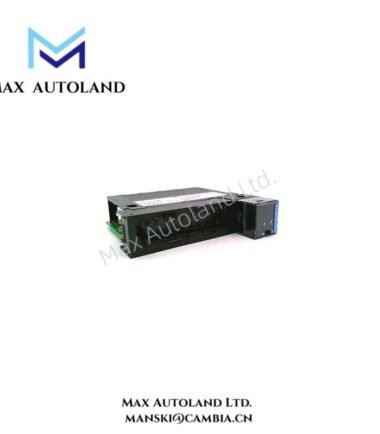

The Honeywell TK-HAO081 Analog Output Module offers eight independent analog output channels for industrial control systems. It integrates with Honeywell C200 / C200E / ControlLogix platforms, enabling fine control of valves, actuators, and process loops. Its HART protocol compatibility and coated protection enhance performance in harsh manufacturing environments.
Specification
| Parameter | Specification | ||
| Number of Points/Channels | 8 output channels | ||
| Available output ranges for channels configured for non-HART. Voltage and Current Ranges: | Actual Range: ±10.4 volts 0 to 10.25 volts 0 to 21 mA | Configuration Selection: ±10 volts 0-10 volts 4-20 mA | Resolution: 16 bits(323μV/bit) 15 bits(323μV/bit) 15 bits (656 ηA/bit) |
| Available output ranges for channels configured for HART. Output is automatically set to Current Range only. | Actual Configuration Range: Selection: Resolution: 0 to 21 mA 4-20 mA 15 bits(656 ηA/bit) | ||
| HARTProtocol Revision | Module is compliant with the specification for HART protocol Revision 5.7 | ||
| Module scan time for the analog 0-100%output value) | 10 ms for all (8)channels | ||
| Over voltage Protection | 24 VACVDC continuous at room temperature | ||
| Short Circuit Protection Current Voltage | Electronically current limited to 21 mA or less. Electronically current limited to 35mA or less. | ||
| Drive Capability | >2000. (Voltage) 50-750. (Current) With short circuit protection for all(8)channels. | ||
| Calibrated Accuracy @25℃ Calibration interval- | Better than 0.1%of range(Voltage) Better than 0.15%of range(Current) 12 months typical | ||
| RFI Immunity | Error o less than 2.0%of range at 10 V/m,27 to 1000 MHz | ||
| Output Settling Time Current Output,No HART Current Output,with HART Voltage Output | <23 ms to 95%of final value with resistive loads <35ms to 95%of final value with resistive loads <8.5ms to 95%of final value with resistive loads | ||
| Offset Drit with Temperature | 50 μV/°C(voltage)typical. 200 nAC(current)typical. | ||
| Gain Drit with Temperature | 20 ppm/°C(Voltage)maximum. 30 ppm/°C(Current)maximum. | ||
| Module Error Over FullTemp.Range | 0.3%of range(Voltage) 0.3%of range(Current) | ||
