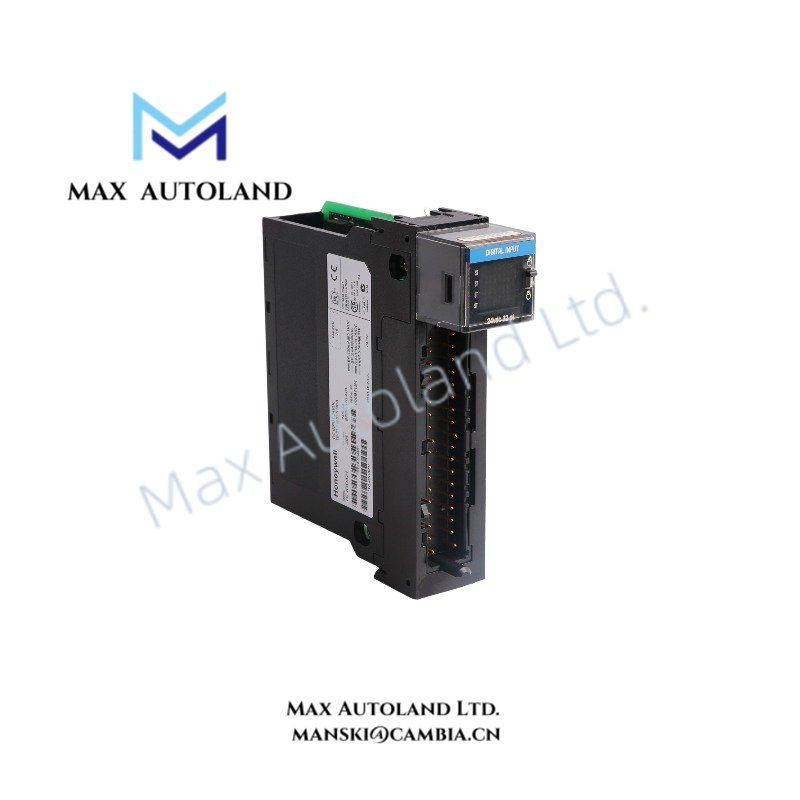

TC-IDD321 97269971 B01 Honeywell Digital Input Module

Overview

The Honeywell TC-IDD321 97269971 B01, also cataloged as the TC-IDD321 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within Honeywell Experion PKS and C200/C200E control system platforms.

Hardware Specifications

Channel Isolation and DCS Signal Processing

The TC-IDD321 provides 32 digital input channels for monitoring field contact states and DC voltage signals. Moreover, the module processes discrete conditions from switches, sensors, and auxiliary contacts before transferring status information through the Honeywell control chassis.

The module applies channel-to-system isolation to separate field wiring from internal control electronics. Therefore, it reduces the influence of electrical disturbances and ground potential differences during industrial operation.

The input structure supports 24 VDC field devices with defined ON and OFF thresholds. In addition, the module maintains signal integrity through controlled input current characteristics and diagnostic monitoring functions.

Frequently Asked Questions

Q: How many digital input points does the Honeywell TC-IDD321 provide?
A: The TC-IDD321 provides 32 digital input channels with 16 points per common connection arrangement.

Q: Does the TC-IDD321 support installation under system power?
A: The module supports Removal and Insertion Under Power (RIUP) according to the supported Honeywell Series-A system configuration.

Q: What type of field signals can the TC-IDD321 monitor?
A: The module monitors 24 VDC discrete signals from devices such as limit switches, push buttons, proximity sensors, and auxiliary contacts.

Field Installation Guidelines

Install the TC-IDD321 module in the designated Honeywell Series-A chassis slot according to system engineering documentation.

Verify that field wiring matches the specified DC input voltage range before connecting terminal blocks. Use proper cable separation practices between digital input wiring and high-voltage power conductors.

Ensure terminal connections maintain correct polarity and grounding practices. Moreover, check shield termination methods when the installation environment contains electrical noise sources.

Confirm module status indicators after installation. The RUN, diagnostic, and system monitoring functions should operate according to the configured Experion PKS or C200/C200E controller parameters.
