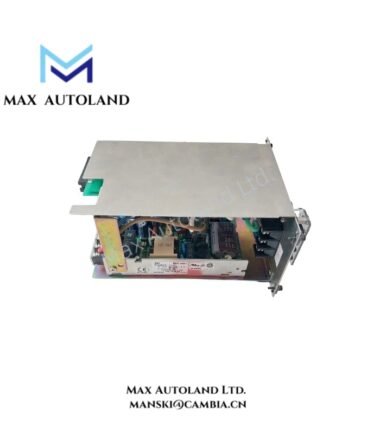

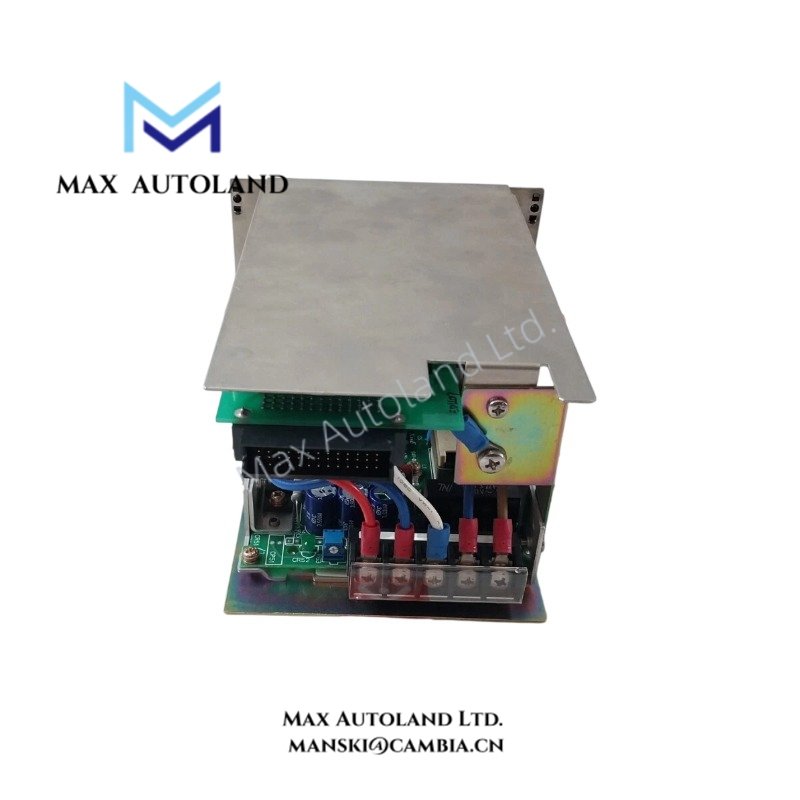

PW502 Power Supply Unit Yokogawa

Hardware Specifications

Power Supply and DCS Integration

The PW502 is identified as a Yokogawa power supply unit with a nominal 24 VDC input and an operating input range of 18 to 32 VDC. Before installation, verify the required supply polarity, terminal assignments, and electrical compatibility against the manufacturer’s documentation for the target system.

The supplied data does not establish output voltage, rated output current, isolation characteristics, redundancy support, or compatibility with a specific Yokogawa platform. These parameters require confirmation from the applicable technical manual.

Frequently Asked Questions (FAQ)

Q: What is the specified input voltage range of the PW502?

A: The listed input voltage range is 18 to 32 VDC, with a nominal input voltage of 24 VDC.

Q: What is the rated output current of the PW502?

A: The available specifications do not identify the rated output current. Consult the manufacturer’s documentation before sizing the power supply for a connected load.

Q: Can the PW502 operate in a redundant power supply configuration?

A: Redundant operation is not confirmed by the supplied data. Verify the supported system configuration and redundancy requirements in the applicable Yokogawa documentation.

Field Installation Guidelines

• Verify the module model and electrical specifications against the equipment documentation before installation.
• Confirm the 24 VDC nominal supply and ensure the actual input voltage remains within the specified 18 to 32 VDC range.
• Check terminal assignments and polarity before connecting power.
• Route power wiring separately from sensitive analog signal and communication cables where practical.
• Apply the cabinet grounding and protective earthing practices specified by the system manufacturer.
• Confirm the module’s mounting method, ventilation requirements, and compatibility with the target control system before energizing it.
