Overview

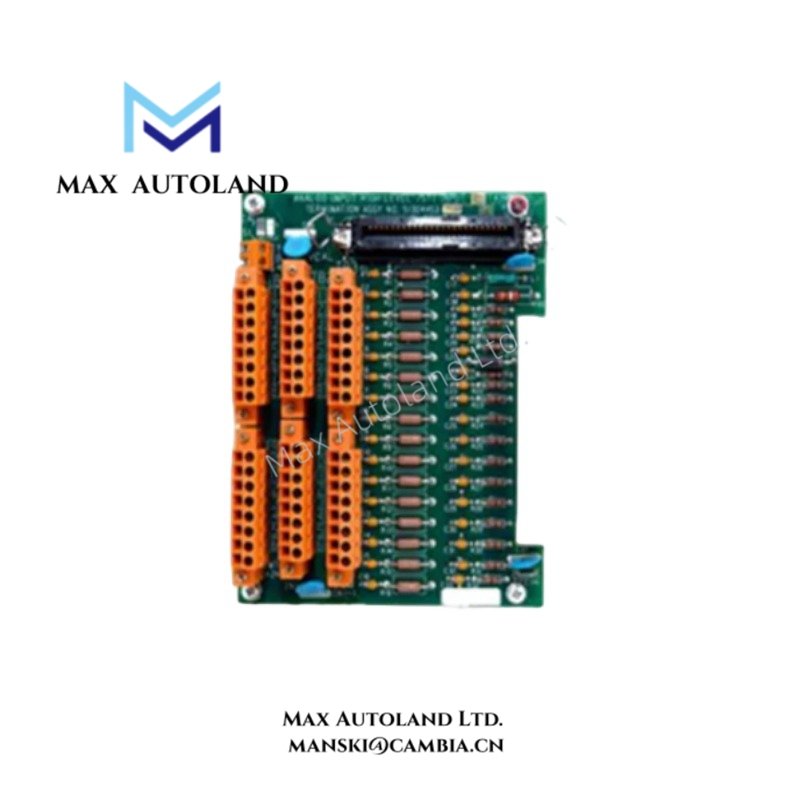

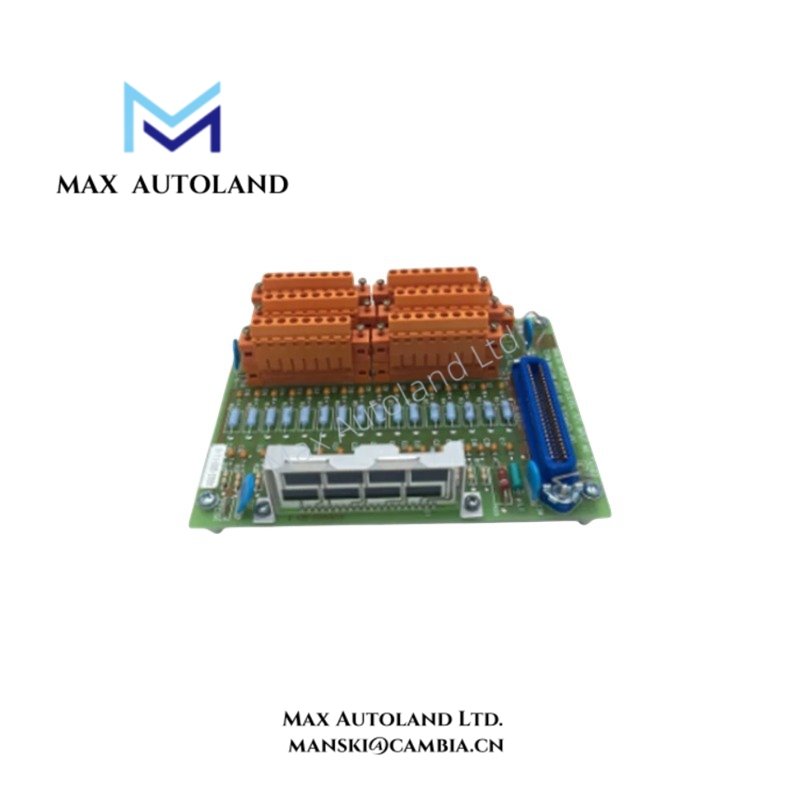

The Honeywell MU-TAIH22 80366195-100 is an Enhanced Power High-Level Analog Input/STI module designed to acquire analog signals for industrial process monitoring and control. Its stated configuration includes 16 input channels supporting 4-20 mA current signals and 0-10 V voltage signals. The module provides analog input data for use by a compatible control system, subject to the applicable hardware and configuration requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TAIH22 |
| Part Number | 80366195-100 |
| Brand | Honeywell |
| Product Type | Enhanced Power High-Level Analog Input/STI Module |
| Input Channels | 16 |
| Signal Types | 4-20 mA, 0-10 V |
| Temperature Stability | 0.02% per deg C |
| Mounting | Panel mount |
| Power Requirements | Standard system power |
| Dimensions | 12.7 x 12.7 x 12.7 cm |
| Weight | 0.8 kg |
Analog Input Function
The MU-TAIH22 receives analog current or voltage signals from field devices. These signals represent measured process variables, and the module supplies corresponding input data to the control system for monitoring and control operations. The required signal type and field wiring must match the configured input channel.
Temperature Stability
The specified temperature stability is 0.02% per deg C. This parameter describes the stated temperature-related change in performance, but the reference temperature, measurement basis, and applicable operating range are not specified in the available information. Confirm the manufacturer’s detailed accuracy specifications before using this value for precision measurement calculations.
Mounting and Power Requirements
The supplied specifications identify panel mounting and standard system power. However, the exact supply voltage, power consumption, terminal assignments, and installation clearances are not established here. Verify these details against the applicable hardware documentation before installation or replacement.
Frequently Asked Questions
Q: How many analog input channels does the MU-TAIH22 provide?
A: The stated configuration provides 16 input channels. Each channel’s supported signal type and wiring arrangement should be confirmed against the module’s applicable configuration requirements.
Q: Which analog signals does the MU-TAIH22 support?
A: The supplied information lists 4-20 mA current signals and 0-10 V voltage signals. Confirm the channel configuration and electrical interface requirements before connecting field devices.
Q: What should be checked before replacing an existing module with the MU-TAIH22?
A: Verify the complete part number, 80366195-100, the required input signal types, mounting arrangement, and system power requirements. Confirm the module’s compatibility with the installed control system before replacement.
