Overview

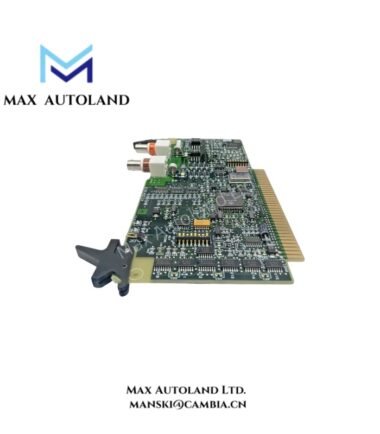

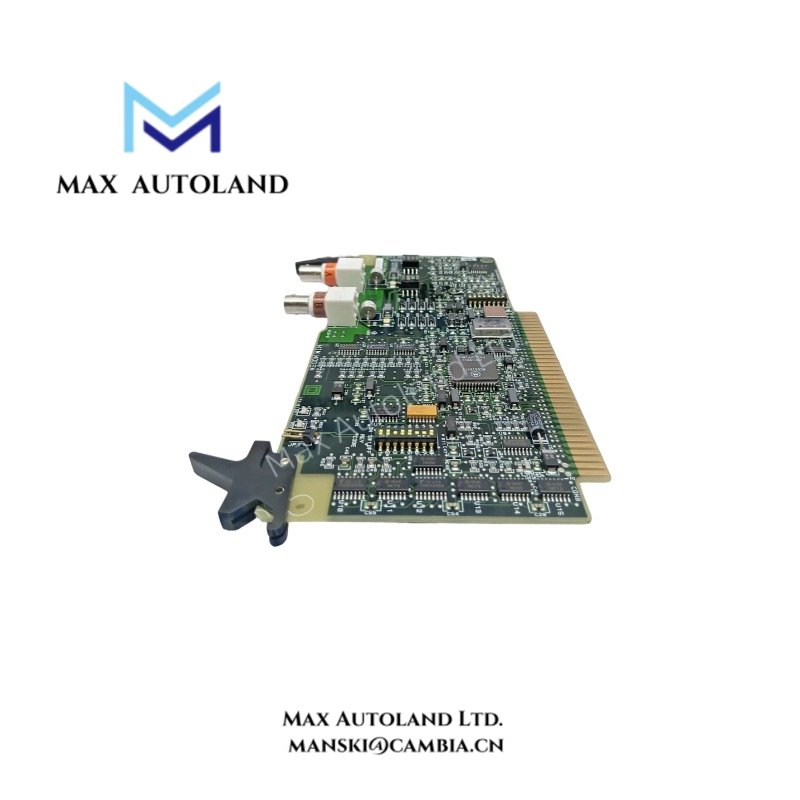

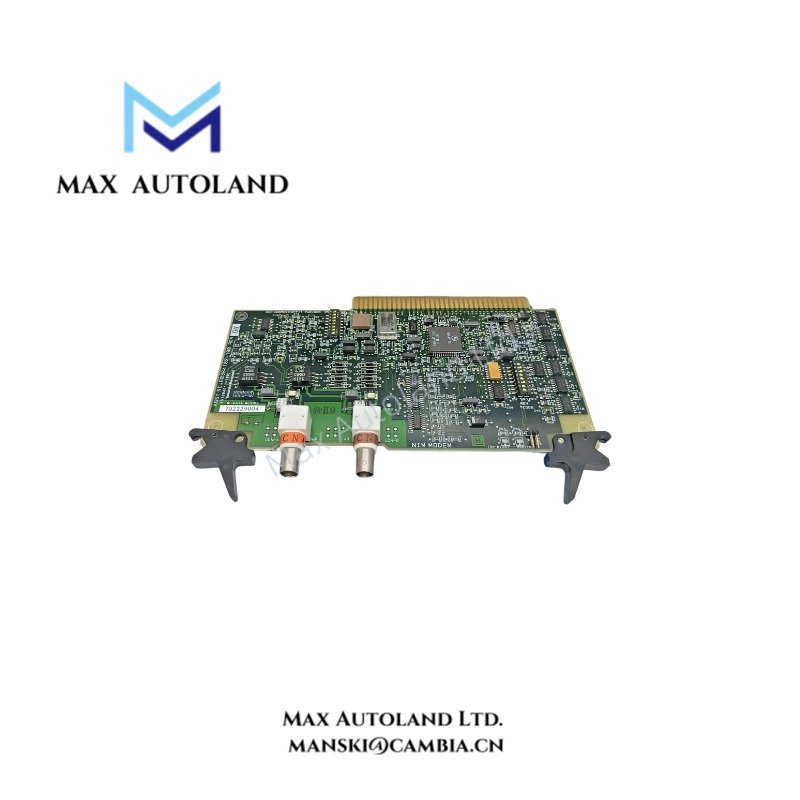

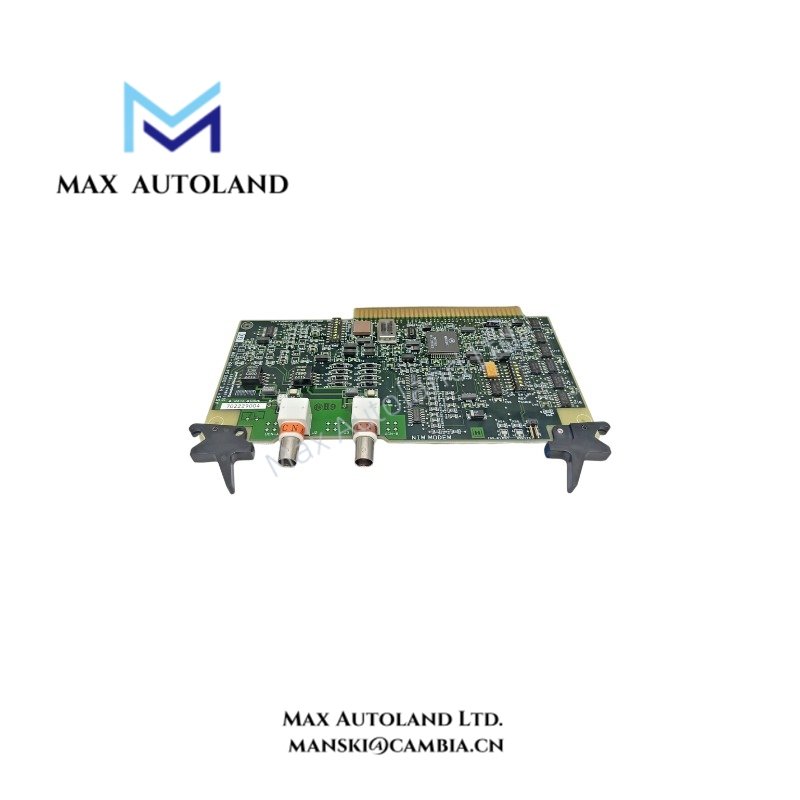

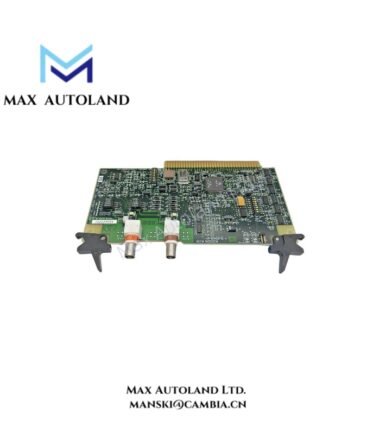

The Honeywell 80364102-100 Controller Module is described as a processor-based control card for distributed control system (DCS) applications. Its stated role is to execute control logic and coordinate data processing within a control system assembly. The module uses a plug-in printed circuit board (PCB) format and receives power through the system backplane, according to the supplied specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 80364102-100 |
| Brand | Honeywell |
| Product Type | Controller Module |
| Product Category | Industrial Control PCB |
| Processing Type | Embedded industrial processor |
| Control Mode | Real-time control |
| Communication | System backplane communication |
| System Integration | Honeywell DCS |
| Form Factor | Plug-in PCB module |
| Power Interface | System backplane |
| Dimensions | 12 x 10 x 2 in |
| Weight | 0.45 kg |
Functional Description
A controller module processes control instructions and coordinates system data according to its assigned role within the control architecture. The supplied information identifies the 80364102-100 as a processor-based control card, but does not establish its processor specifications, execution capacity, memory size, or supported control functions.
The backplane power interface indicates that the module receives power through its host assembly rather than through a separately specified power connection. The exact rack type, communication interface, and installation requirements should be confirmed before replacement or integration.
Frequently Asked Questions
Q: What is the function of the Honeywell 80364102-100?
A: It is identified in the supplied information as a controller module for Honeywell DCS environments. Its precise control functions and system role require confirmation against the equipment configuration.
Q: How is the 80364102-100 powered?
A: The supplied specifications identify the system backplane as its power interface. The required voltage, current, and power consumption have not been confirmed.
Q: What should be checked before replacing this module?
A: Verify the complete part number, including the -100 suffix, and compare the module label, physical dimensions, rack requirements, backplane interface, and system compatibility with the installed unit. The available information does not establish a direct replacement or interchangeability with other controller models.
