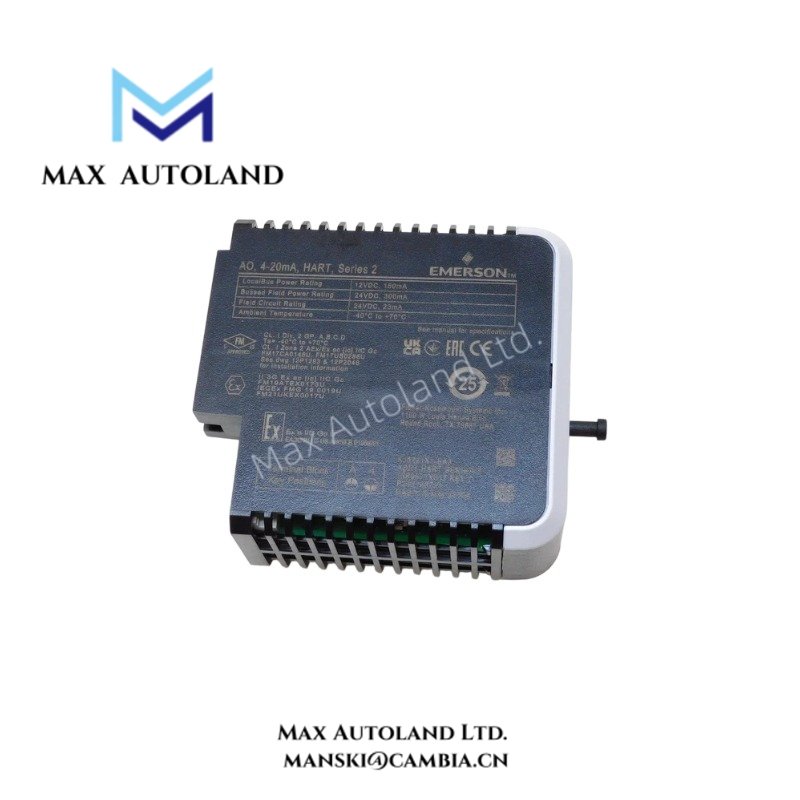

KJ3221X1-BA3 Emerson DeltaV S-Series Analog Output Module

Hardware Specifications

4-20 mA HART Loop and DCS Signal Processing

The Emerson KJ3221X1-BA3 integrates analog output generation with HART communication for smart field device interaction. The module transfers configured output values through 4-20 mA current loops while maintaining digital diagnostic communication through the HART protocol.

Additionally, the module supports channel-to-channel signal management within the DeltaV S-Series architecture. The design allows process controllers to transmit analog commands to valves, actuators, and other current-driven field instruments while maintaining defined electrical separation between field circuits.

The module supports standard process instrumentation requirements, including output calibration, device status monitoring, and HART-enabled configuration functions. Therefore, maintenance personnel can access field device information through the DeltaV engineering environment without interrupting normal signal operation.

Frequently Asked Questions

Q: Does the KJ3221X1-BA3 support HART communication on its analog output channels?
A: Yes. The module provides 4-20 mA analog outputs with HART protocol support for compatible smart field devices.

Q: What power requirements apply to the KJ3221X1-BA3 module?
A: The module requires 12 VDC local bus power at 150 mA and 24 VDC bussed field power at 300 mA.

Q: Can the KJ3221X1-BA3 operate in extended temperature environments?
A: Yes. The specified operating temperature range is -40 deg C to +70 deg C, suitable for industrial control cabinet installation.

Field Installation Guidelines

Install the KJ3221X1-BA3 module according to Emerson DeltaV system hardware installation procedures. Verify that the carrier, backplane connection, and power distribution paths are correctly installed before module insertion.

Connect field wiring using appropriate industrial instrumentation practices. Maintain separation between analog signal cables and high-voltage power conductors to reduce electromagnetic interference. Use proper cable shielding and connect shield grounding according to the site grounding standard.

Before commissioning, verify the 4-20 mA output loop continuity, field device polarity, and HART communication status. Confirm that controller configuration matches the physical channel assignment to prevent incorrect output routing.

Ensure the operating environment remains within the specified temperature and vibration limits. Follow DeltaV maintenance procedures when replacing or removing modules from an active control system.
